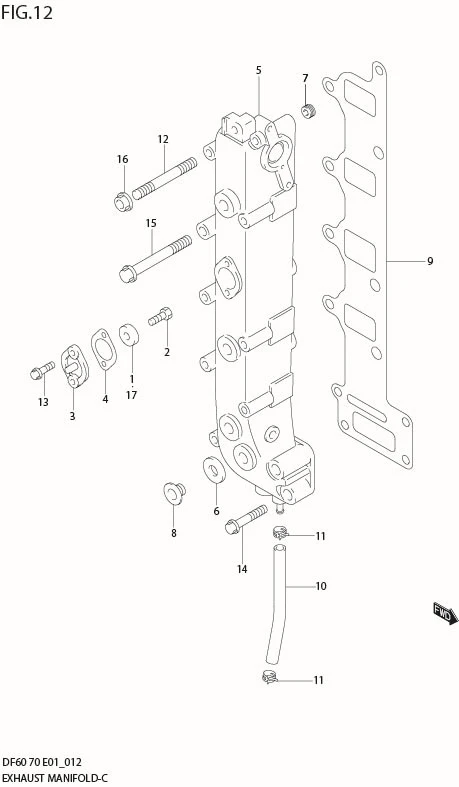

FIG 12 EXHAUST MANIFOLD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	55321-87J01-000 SUB: 55321-87J00-000	ZINC, PROTECTION	1	Rp79.500
2-1	DISCONTINUE SUB: 09128-06021-000	BOLT (6X14)	1	-
2-2	09103-06281-000	BOLT	1	Rp20.500	MODEL:06%09
3-1	11261-87E10-0EP	COVER, PROTECTION (BLACK)	1	Rp347.500	?11261-87E00-0EP
3-2	11261-87E10-000	COVER, PROTECTION	1	Rp116.500	MODEL:04%09
4	11265-87E10-000	GASKET, PROTECTION COVER	1	Rp34.000
5-1	14100-99800-019	MANIFOLD, EXHAUST (BLACK)	1	Rp3.132.000	?14110-99E01-019
5-2	14110-99E02-019	MANIFOLD, EXHAUST (BLACK)	1	Rp4.479.000	DF60:861477%MODEL:02
5-3	14110-99E10-019	MANIFOLD, EXHAUST (BLACK)	1	-	MODEL:03
5-4	14110-99E11-000	MANIFOLD, EXHAUST	1	Rp6.170.500	MODEL:04%09
6	09160-18031-000	?GASKET (18.5X28X2.6)	1	Rp19.500
7-2	09246-06005-000	?PLUG	8	Rp22.000	FOR 14110-99E02-019
7-4	09246-06005-000	?PLUG	1	Rp22.000	DF60:880686%
7-3	09246-06005-000	?PLUG	9	Rp22.000	MODEL:03%08
7-1	09246-06005-000	?PLUG	9	Rp22.000
8	09248-18006-000	?PLUG	1	Rp35.000
9	14151-99E00-000	GASKET, EXHAUST MANIFOLD	1	Rp346.000
10	09352-50006-600 SUB: 09352-50903-600	HOSE	1	Rp46.000	L:600!150
11	09401-08413-000 SUB: 17814-90J00-000	CLIP	2	Rp19.500	?09401-08411
12	01421-08657-000	BOLT, STUD	4	Rp36.000
13	01550-06207-000 SUB: 01550B06207N000	BOLT	2	Rp3.000
14	01550-08507-000	BOLT	2	Rp21.500
15	01550-08857-000	BOLT	6	Rp24.000
16	08316-10087-000	NUT	4	Rp17.000
17	DISCONTINUE SUB: 55321-87J10-000	ANODE (MAGNESIUM)	1	-	OPT
