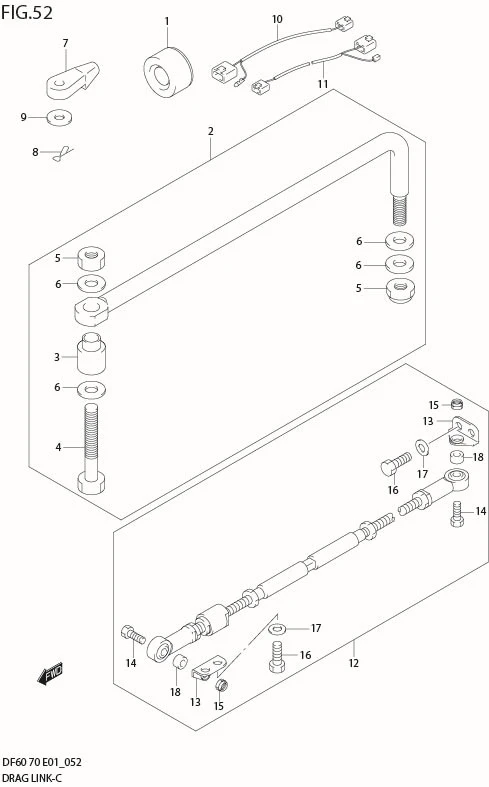

FIG 52 DRAG LINK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 41161-94400-000	SEAL, STEERING CABLE	1	-
2-1	67701-99E20-000	LINK, DRAG	1	-	!67701-87J00
2-2	67701-87J00-000	LINK, DRAG	1	-	MODEL:02
2-3	DISCONTINUE SUB: 67701-87J11-000	LINK, DRAG	1	-	MODEL:03%09
3-1	67721-99E00-000	?SPACER	1	Rp86.000
3-2	DISCONTINUE SUB: 67721-87J00-000	?SPACER	1	-	MODEL:02%09
4	67725-99E00-000	?BOLT, DRAG LINK	1	Rp62.000
5	67726-99E00-000	?NUT	2	Rp74.000
6	DISCONTINUE SUB: 67728-99E00-000	?WASHER	4	-
7	67467-89J01-000	CONNECTOR, REMOCON CABLE	2	Rp65.500
8	09385-06012-000	CLIP	2	Rp12.000
9	09160-06055-000	WASHER (7X12X1.0)	2	Rp13.000
10	34711-99E00-000	WIRE, ADAPTER TO MONITOR	1	Rp165.500	MODEL:98%01
11	36661-99E00-000	WIRE, ADAPTER TO ENGINE	1	Rp361.000	MODEL:98%01
12	DISCONTINUE SUB: 67600-90J00-000	KIT, TIE ROD	1	-	OPT
13	DISCONTINUE SUB: 67631-90J00-000	BRACKET, TIE ROD	2	-	OPT
14	DISCONTINUE SUB: 67725-99E10-000	?BOLT	2	-	OPT
15	67726-99E00-000	?NUT	2	Rp74.000	OPT
16	DISCONTINUE SUB: 09100-12081-000	?BOLT	4	-	OPT,REFER TO NO.20
17	09160-12066-000	?WASHER	4	Rp13.500	OPT
18	09180-09022-000	?SPACER	2	Rp285.000	OPT,REFER TO NO.22
19	67620-99E00-000	KIT, TIE ROD ADAPTER	1	Rp561.000	OPT,FOR DF60/70
20	09111-10064-000	?BOLT	4	Rp125.500	OPT,FOR DF60/70
21	09160-12066-000	?WASHER	4	Rp13.500	OPT,FOR DF60/70
22	09180-09023-000	?SPACER	2	Rp85.500	OPT,FOR DF60/70
