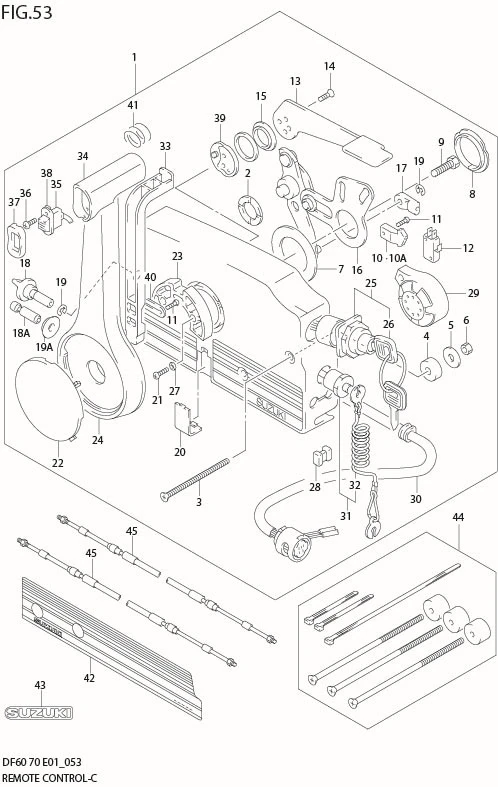

FIG 53 REMOTE CONTROL (MODEL:98%03)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	67200-99E57-000 SUB: 67200-99E30-0EP	REMOTE CONTROL (BLACK)	1	Rp4.328.000	MODEL:03
1-1	67200-99E11-0EP	REMOTE CONTROL BOX (BLACK)	1	-	!67200-99E30-0EP
2	67232-95600-000	?BUSH	1	Rp44.000
3	67296-95600-000	?SCREW	3	Rp47.000
4	67294-95600-000	?SPACER	3	Rp35.000
5	09160-06104-000	?WASHER	3	Rp18.000
6	09140-06020-000	?NUT	3	Rp13.500
7	67253-95600-000	?WASHER	1	Rp37.500
8	67252-95600-000	?BUSH	1	Rp37.500
9	09100-08232-000	?BOLT (8X30)	1	Rp29.000
10	DISCONTINUE SUB: 67214-95600-000	?ACTUATOR	1	-
10A	DISCONTINUE SUB: 67238-87D00-000	?GEAR, DRIVE	1	-
11	67296-94300-000	?SCREW	3	Rp10.500
12	DISCONTINUE SUB: 37721-94600-000	?SWITCH, NEUTRAL	1	-
13	67241-99E00-000	?LEVER, FREE THROTTLE	1	Rp151.000
14	DISCONTINUE SUB: 09126-05003-000	?SCREW (5X12)	2	-
15	67243-95600-000	?BUSH	1	Rp30.500
16	67220-95630-000	?PLATE ASSY	1	Rp654.500
17	67275-95600-000	?END, CABLE	2	Rp70.500
18	DISCONTINUE SUB: 67223-95600-000	?KNOB, BRAKE ADJUST	1	-	FOR 67200-99E11-0EP
18A	67223-99E00-000	?KNOB, BRAKE ADJUST	1	Rp448.000	FOR 67200-99E30-0EP
19	67292-94300-000	?E RING	3	Rp11.000	FOR 67200-99E11-0EP
19A	09308-08001-000	?GROMMET	1	Rp20.500	FOR 67200-99E30-0EP
20	67267-95610-000	?COVER, WIRE	1	Rp44.500
21	67296-95610-000	?SCREW	7	Rp23.500
22	67257-95610-000	?CAP, LEVER	1	Rp55.500
23	67256-95600-000	?HOLDER, NEUTRAL LOCK	1	Rp80.500
24	67251-99E00-000	?LEVER, HANDLE	1	Rp427.000
25	37110-99E01-000 SUB: 37110-92E02-000	?SWITCH ASSY, IGNITION	1	Rp487.000	?37110-92E01
26-10	37141-92E90-000	??KEY (20)	1	Rp147.000
26-9	37141-92E80-000	??KEY (19)	1	Rp147.000
26-8	37141-92E70-000	??KEY (18)	1	Rp147.000
26-7	37141-92E60-000	??KEY (17)	1	Rp147.000
26-6	37141-92E50-000	??KEY (16)	1	Rp77.500
26-4	37141-92E30-000	??KEY (14)	1	Rp147.000
26-5	37141-92E40-000	??KEY (15)	1	Rp147.000
26-1	37141-92E00-000	??KEY (11)	1	Rp147.000
26-2	37141-92E10-000	??KEY (12)	1	Rp147.000
26-3	37141-92E20-000	??KEY (13)	1	Rp147.000
27	67297-95600-000	?WASHER	2	Rp23.500
28	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
29-1	DISCONTINUE SUB: 38500-92X50-000	?BUZZER	1	-	FOR 67200-99E11-0EP
29-2	38500-92E10-000	?BUZZER	1	Rp761.000	FOR 67200-99E30-0EP
30-1	36620-92E00-000	?WIRING HARNESS	1	Rp2.329.500	FOR 67200-99E10-0EP
30-2	36620-92E10-000	?WIRING HARNESS	1	Rp2.165.500	FOR 67200-99E11-0EP
31	37820-92E05-000 SUB: 37820-92E00-000	?SWITCH ASSY, EMERGENCY	1	Rp369.500
32	37823-92E02-000 SUB: 37823-92E00-000	??PLATE	1	Rp221.500
33	67255-95600-000	?ARM, NEUTRAL LOCK	1	Rp83.500
34	67261-95600-000	?GRIP	1	Rp83.500
35	DISCONTINUE SUB: 37860-94610-000	?SWITCH, TRIM	1	-
36	DISCONTINUE SUB: 09139-02003-000	?SCREW (2X6.0)	2	-
37	67263-95600-000	?CAP, GRIP	1	Rp66.500
38	DISCONTINUE SUB: 37869-95590-000	?CAP, TRIM SWITCH	1	-
39	67245-95600-000	?DRUM ASSY, FREE THROTTLE	1	Rp194.000
40	67258-87D00-000	?BRACKET, NEUTRAL ARM	1	Rp30.000
41	67259-87D00-000	?SPRING, NEUTRAL ARM	1	Rp45.500
42	67282-95610-000	DECAL, REMOCON BOX (BLACK)	1	Rp44.000	OPT
43	68165-16B01-13L SUB: 68165-16B00-13L	EMBLEM, SUZUKI (SILVER)	1	Rp47.500	OPT
44	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, TWIN REMOCON KIT	1	Rp351.000	OPT
45-1	67320-89J11-000	CABLE, REMOCON 8F (2.4M)	2	-	OPT
45-2	67320-89J21-000	CABLE, REMOCON 10F (3.1M)	2	-	OPT
45-3	67320-89J31-000	CABLE, REMOCON 12F (3.7M)	2	-	OPT
45-4	67320-89J41-000	CABLE, REMOCON 14F (4.3M)	2	-	OPT
45-5	67320-89J51-000	CABLE, REMOCON 16F (4.9M)	2	-	OPT
45-6	67320-89J61-000	CABLE, REMOCON 18F (5.5M)	2	-	OPT
45-7	67320-89J71-000	CABLE, REMOCON 20F (6.1M)	2	-	OPT
45-8	67320-89J81-000	CABLE, REMOCON 22F (6.7M)	2	-	OPT
45-9	67320-89J90-000	CABLE, REMOCON 24F (7.3M)	2	-	OPT
