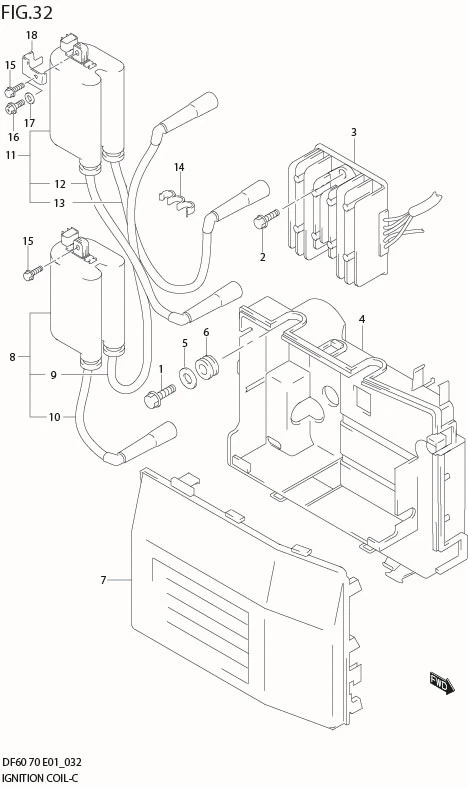

FIG 32 IGNITION COIL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	01550-06127-000	BOLT	4	Rp17.000
2	01550-06307-000	BOLT	2	Rp18.000
3	32800-92E20-000	RECTIFIER/REGULATOR	1	Rp2.621.000
4-1	32890-99E00-000	HOLDER, ELECTRIC PARTS	1	Rp188.500	MODEL:98%00
4-2	32890-99E11-000	HOLDER, ELECTRIC PARTS	1	-	MODEL:01%05
4-3	32890-99E12-000	HOLDER, ELECTRIC PARTS	1	Rp388.000	MODEL:06%09
5-1	DISCONTINUE SUB: 09160-06054-000	WASHER (6.5X22X1.6)	4	-
5-2	DISCONTINUE SUB: 09160-06054-000	WASHER (6.5X22X1.6)	3	-	MODEL:05%09
6	09320-12090-000 SUB: 09320-12011-000	CUSHION	4	Rp13.500
7	32891-99E00-000	COVER, ELECTRIC PARTS HOLDER	1	Rp293.000
8	DISCONTINUE SUB: 33410-99E00-000	COIL, IGNITION	1	-
9	33710-99E00-000	?CORD, HIGH TENSION NO.1	1	Rp241.500	W/SPARK PLUG CAP
10	33740-99E00-000	?CORD, HIGH TENSION NO.4	1	Rp207.500	W/SPARK PLUG CAP
11	33420-99E00-000	COIL, IGNITION	1	Rp1.883.500
12	33720-99E00-000	?CORD, HIGH TENSION NO.2	1	Rp207.500	W/SPARK PLUG CAP
13	33730-99E00-000	?CORD, HIGH TENSION NO.3	1	Rp207.500	W/SPARK PLUG CAP
14	DISCONTINUE SUB: 09408-00035-000	CLAMP	1	-
15	01550-06207-000 SUB: 01550B06207N000	BOLT	4	Rp3.000
16	02162-06257-000	SCREW	4	Rp9.500	DF60:780738%
17	DISCONTINUE SUB: 08322-01067-000	WASHER	4	-	DF60:780738%
18	33415-99E00-000	PROTECTOR, IGNITION COIL	1	Rp42.000
