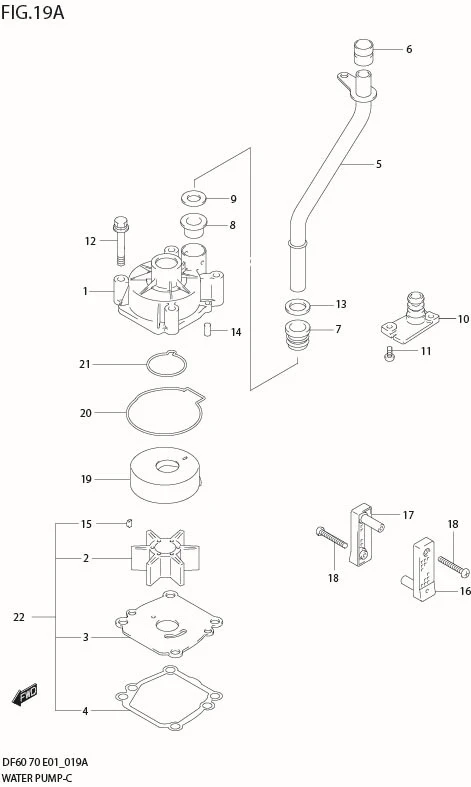

FIG 19A WATER PUMP (MODEL:08%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17410-99E00-000	CASE, WATER PUMP	1	Rp761.000
2	17461-87E12-000	IMPELLER, WATER PUMP	1	Rp466.500
3-1	17471-99E00-000	PANEL, PUMP CASE UNDER	1	Rp82.500
3-2	17471-99E10-000	PANEL, PUMP CASE UNDER	1	Rp296.000	DF70WT,70WTH
4	17472-87E10-000	GASKET, PUMP CASE	1	Rp53.000
5-1	17560-99E01-000	TUBE, WATER (L)	1	Rp504.500
5-2	DISCONTINUE SUB: 17560-99E11-000	TUBE, WATER (X)	1	-
6	DISCONTINUE SUB: 17562-87D00-000	BUSH, WATER TUBE UPPER	1	-
7	17563-87D01-000 SUB: 17563-87D00-000	BUSH, WATER TUBE LOWER	1	Rp75.000
8	17564-87D00-000	BUSH, WATER PUMP CASE	1	Rp104.000
9	DISCONTINUE SUB: 17612-87D00-000	SPACER, WATER TUBE	1	-
10	17635-90J00-000	PLUG, SUB WATER TUBE	1	Rp40.500
11	09125-05046-000	SCREW (5X12)	2	Rp14.000
12	29116-93J10-000	BOLT (8X35)	4	Rp29.500
13	09161-16008-000	WASHER (15.8X26X1.0)	1	Rp19.000
14	09202-06031-000	PIN	2	Rp21.500
15	09420-04009-000	KEY	1	Rp60.000
16	17631-90J00-000	FILTER, WATER PORT	1	Rp84.500
17	17632-90J00-000	FILTER, WATER STBD	1	Rp84.500
18	09132-04034-000	SCREW	2	Rp15.000
19-1	17413-99E11-000 SUB: 17413-99E10-000	SLEEVE, WATER PUMP	1	Rp307.000
19-2	17413-99E21-000 SUB: 17413-99E20-000	SLEEVE, WATER PUMP	1	Rp827.000	DF70WT,70WTH
20	17416-99E00-000	SEALING NO.1	1	Rp69.000
21	17417-99E00-000	SEALING NO.2	1	Rp65.500
22	17400-99E01-000	KIT, WATER PUMP REPAIR	1	Rp582.500	OPT
