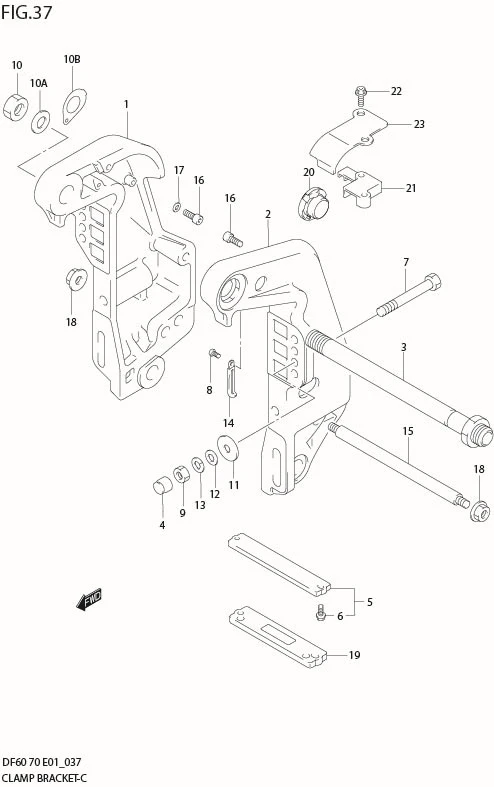

FIG 37 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	41111-90J01-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp2.318.000	MODEL:01
1-1	41111-95E03-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp2.104.500
1-4	41111-90J12-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp2.318.000	MODEL:06%09
1-3	41111-90J11-0EP	BRACKET, CLAMP STBD (BLACK)	1	-	MODEL:02%05
2-1	41121-95E20-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp2.104.500
2-2	41121-90J01-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp2.318.000	MODEL:01
2-3	41121-90J13-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp4.965.500	MODEL:02%09
3-1	DISCONTINUE SUB: 41130-95541-000	SHAFT, CLAMP BRACKET	1	-
3-2	DISCONTINUE SUB: 41130-95542-000	SHAFT, CLAMP BRACKET	1	-	MODEL:03%05
3-3	DISCONTINUE SUB: 41130-95543-000	SHAFT, CLAMP BRACKET	1	-	DF60:510442%
3-4	41130-92J03-000 SUB: 41130-92J00-000	SHAFT, CLAMP BRACKET	1	Rp1.870.500	MODEL:06%09
4	DISCONTINUE SUB: 41153-94500-000	CAP, TRANSOM BOLT	4	-
5	55320-94900-000	ZINC SET, PROTECTION	1	Rp421.000
6	09116-06121-000	?BOLT (6X25)	2	Rp18.000
7-1	09100-12045-000	BOLT (12X115,PITCH:1.75)	4	-	!09100-12091
7-2	09100-12091-000	BOLT (12X115,PITCH:1.25)	4	Rp161.000	DF60:510198%
7-3	09100-12083-000	BOLT (12X150,PITCH:1.75)	1	-	OPT
7-4	DISCONTINUE SUB: 09100-12090-000	BOLT (12X150,PITCH:1.25)	1	-	OPT
8	09125-06063-000	SCREW (6X10)	1	Rp15.000
9-2	09159-12014-000	NUT (M12,PITCH:1.25)	4	Rp37.000	DF60:510198%
9-1	DISCONTINUE SUB: 09140-12028-000	NUT (M12,PITCH:1.75)	4	-
10	09159-22006-000	NUT	1	Rp186.500	?09159-22003
10A	DISCONTINUE SUB: 09160-22033-000	WASHER (22.5X38X1.0)	1	-	MODEL:02%06
10B	41135-92J00-000	WASHER, CLAMP BRACKET SHAFT	1	Rp69.500	DF60:680108%
11	DISCONTINUE SUB: 09160-12044-000	WASHER (12.5X35X3.2)	4	-
12-1	09160-12066-000	WASHER (12.5X22X2.5)	4	Rp13.500
12-2	09160-12110-000	WASHER (12.5X22X3.0)	4	Rp55.000	DF60:510198%
13	DISCONTINUE SUB: 09162-12005-000	LOCK WASHER	4	-	DF60:%510197
14	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
15-2	45421-90J00-000	PIN, TILT LOCK	1	Rp296.000	OPT
15-1	45421-87D03-000 SUB: 45421-87D00-000	PIN, TILT LOCK	1	Rp288.000	%MODEL:00
16	DISCONTINUE SUB: 09106-10065-000	BOLT	2	-
17	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2.0)	2	Rp12.000	?09160-10082
18-1	09159-14020-000	NUT	2	Rp31.000	%MODEL:00
18-2	09159-14020-000	NUT	2	Rp31.000	OPT MODEL:01%09
19	55321-94910-000	ANODE (MAGNESIUM)	1	Rp483.000	OPT
20	48140-93J01-000 SUB: 48140-93J00-000	CAM ASSY, TILT LIMIT SWITCH	1	Rp143.500	MODEL:04%09
21	DISCONTINUE SUB: 48144-93J00-000	HOLDER, TILT LIMIT SWITCH	1	-	MODEL:04%09
22-1	09103-06093-000	BOLT	2	Rp13.000	MODEL:04,05
22-2	09103-06278-000	BOLT (6X25)	2	Rp14.000	DF60:510639%
23	DISCONTINUE SUB: 48145-93J00-000	COVER, TILT LIMIT SWITCH	1	-	DF60:510639%
