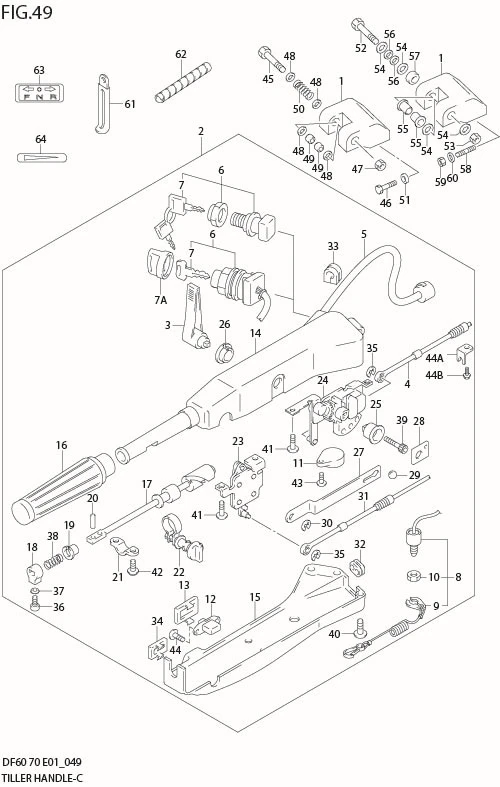

FIG 49 TILLER HANDLE (DF70WTH)

FIG 49 TILLER HANDLE (DF70WTH)
No No. Part Description Qty Price Per Pcs Remarks
1-2 43761-87J11-0EP BRACKET, TILLER HANDLE (BLACK) 1 Rp692.500 MODEL:07%09
1-1 43761-87J01-0EP BRACKET, TILLER HANDLE (BLACK) 1 Rp1.375.500
2-2 63110-99E05-0EP HANDLE, TILLER (BLACK) 1 - MODEL:04
2-3 63110-99E11-0EP HANDLE, TILLER (BLACK) 1 - MODEL:05%06
2-4 63110-99E23-0EP
SUB: 63110-99E20-0EP		 HANDLE, TILLER (BLACK) 1 Rp5.723.500 MODEL:07%09
2-1 63110-99E04-0EP HANDLE, TILLER (BLACK) 1 -
3 21111-87J10-0EP ?LEVER, SHIFT (BLACK) 1 Rp858.000
4 23230-99E00-000 ?CABLE, SHIFT 1 Rp1.007.000
5-1 36620-99E00-000 ?WIRE ASSY, HANDLE 1 Rp838.000
5-2 36620-99E10-000 ?WIRE ASSY, HANDLE 1 Rp793.500 MODEL:05%09
6-1 37110-87J01-000 ?SWITCH ASSY, IGNITION 1 - ?37110-87J00
6-2 37110-87J21-000
SUB: 37110-87J20-000		 ?SWITCH ASSY, IGNITION 1 Rp561.000 MODEL:04%09
7-13 DISCONTINUE
SUB: 37141-99E20-000		 ??KEY (933) 1 - MODEL:04%07%09
7-14 DISCONTINUE
SUB: 37141-99E30-000		 ??KEY (934) 1 - MODEL:04%07%09
7-15 DISCONTINUE
SUB: 37141-99E40-000		 ??KEY (935) 1 - MODEL:04%07%09
7-16 DISCONTINUE
SUB: 37141-99E50-000		 ??KEY (936) 1 - MODEL:04%07%09
7-17 DISCONTINUE
SUB: 37141-99E60-000		 ??KEY (937) 1 - MODEL:04%07%09
7-18 DISCONTINUE
SUB: 37141-99E70-000		 ??KEY (938) 1 - MODEL:04%07%09
7-19 DISCONTINUE
SUB: 37141-99E80-000		 ??KEY (939) 1 - MODEL:04%07%09
7-20 DISCONTINUE
SUB: 37141-99E90-000		 ??KEY (940) 1 - MODEL:04%07%09
7-21 DISCONTINUE
SUB: 37141-99EA0-000		 ??KEY (941) 1 - MODEL:04%07%09
7-22 DISCONTINUE
SUB: 37141-99EB0-000		 ??KEY (942) 1 - MODEL:04%07%09
7A 37143-99E00-000 ??CAP, KEY 1 Rp26.000 MODEL:04%07%09
7-11 DISCONTINUE
SUB: 37141-99E00-000		 ??KEY (931) 1 - MODEL:04%07%09
7-10 37141-92E90-000 ??KEY (20) 1 Rp147.000
7-9 37141-92E80-000 ??KEY (19) 1 Rp147.000
7-8 37141-92E70-000 ??KEY (18) 1 Rp147.000
7-7 37141-92E60-000 ??KEY (17) 1 Rp147.000
7-6 37141-92E50-000 ??KEY (16) 1 Rp77.500
7-5 37141-92E40-000 ??KEY (15) 1 Rp147.000
7-4 37141-92E30-000 ??KEY (14) 1 Rp147.000
7-3 37141-92E20-000 ??KEY (13) 1 Rp147.000
7-2 37141-92E10-000 ??KEY (12) 1 Rp147.000
7-1 37141-92E00-000 ??KEY (11) 1 Rp147.000
7-12 DISCONTINUE
SUB: 37141-99E10-000		 ??KEY (932) 1 - MODEL:04%07%09
8 37820-87J04-000
SUB: 37820-87J00-000		 ?SWITCH, EMERGENCY 1 Rp567.000
9 37823-92E02-000
SUB: 37823-92E01-000		 ??PLATE, LOCK 1 Rp221.500
10 37826-92E00-000 ??NUT 1 Rp65.500
11 DISCONTINUE
SUB: 38500-92X50-000		 ?BUZZER 1 -
12 DISCONTINUE
SUB: 37860-94610-000		 ?SWITCH, TRIM 1 -
13 DISCONTINUE
SUB: 37869-95590-000		 ?CAP, TRIM SWITCH 1 -
14-1 63111-87J03-0EP ?HOUSING, TILLER HANDLE 1 - !63111-87J10-0EP
14-2 63111-87J10-0EP ?HOUSING, TILLER HANDLE 1 Rp1.312.500 MODEL:07%09
15 63120-87J00-000
SUB: 63121-87J02-000		 ?COVER, LOWER 1 Rp260.500
16 63210-93E30-000 ?GRIP, HANDLE 1 Rp293.000
17 63221-87J00-000 ?SHAFT, THROTTLE 1 Rp545.000
18 63223-92D00-000 ?STOPPER, HANDLE ROD 1 Rp37.500
19 63225-93200-000 ?BUSH, HANDLE ROD 1 Rp37.000
20 63227-93200-000 ?PIN, HANDLE ROD 1 Rp21.000
21 63235-87J00-000 ?PLATE, THROTTLE SHAFT 1 Rp28.500
22 63240-87J00-000 ?ADJUSTER, THROTTLE 1 Rp111.000
23 63250-87J01-000 ?ARM ASSY, THROTTLE 1 Rp1.628.500
24 63260-87J02-000 ?GEAR ASSY, SHIFT 1 Rp1.863.500
25 63261-87J00-000 ?BUSH, SHIFT GEAR 1 Rp97.000
26 63262-87J00-000 ?BUSH, SHIFT LEVER 1 Rp31.500
27 63271-87J00-000 ?PLATE, LOCK 1 Rp136.000
28 63272-87J00-000 ?PLATE, BALL GUIDE 1 Rp85.000
29 63273-87J00-000 ?BALL 1 Rp44.000
30 63274-87J00-000 ?E RING 1 Rp20.000
31 63610-99E00-000 ?CABLE, THROTTLE 1 Rp695.500
32 63625-99E00-000 ?GROMMET, THROTTLE CABLE 1 Rp45.000
33 63626-99E01-000 ?GROMMET, WIRE HARNESS 1 Rp61.000
34 67263-99E00-000 ?COVER, TRIM SWITCH 1 Rp54.500
35 67292-87J00-000 ?E RING 2 Rp20.500
36 09126-06015-000 ?SCREW (6X23) 1 Rp19.000
37 09163-06001-000 ?LOCK WASHER 1 Rp11.000
38 09440-12027-000 ?SPRING 1 Rp13.000
39 09106-08099-000 ?BOLT (8X50) 1 Rp25.500
40 DISCONTINUE
SUB: 09125-05047-000		 ?SCREW (5X14) 6 -
41 09125-06069-000 ?SCREW (6X12) 4 Rp18.000
42 09136-05008-000 ?SCREW (5X12) 2 Rp23.500
43 02142-05207-000 ?SCREW 1 Rp9.000
44 DISCONTINUE
SUB: 09139-02003-000		 ?SCREW (2X6) 2 -
44B 63612-87J00-000 ?BRACKET, CLAMP 2 Rp184.500 DF70WTH:780763%
44A 63611-87J00-000 ?BOLT, CLAMP BRACKET 2 Rp71.000 DF70WTH:780763%
45 09100-10264-000 BOLT (10X80) 1 Rp92.000 MODEL:01%06
46-1 DISCONTINUE
SUB: 09100-10155-000		 BOLT (10X50) 2 -
46-2 09117-10058-000 BOLT (10X50) 2 Rp31.000 DF60:421399%MODEL:06
47 09159-10050-000 NUT 1 Rp23.500 MODEL:01%06
48 09160-10097-000 WASHER (10.5X22X2.5) 4 Rp21.500 MODEL:01%06
49 DISCONTINUE
SUB: 09306-10009-000		 BUSH 3 - MODEL:01%06
50 DISCONTINUE
SUB: 09440-22008-000		 SPRING 2 - MODEL:01%06
51 09162-10005-000 LOCK WASHER (10.2X18.4X2.5) 2 Rp13.000 DF60:%421398
52 09100-10264-000 BOLT, TILLER HANDLE PIVOT 1 Rp92.000 MODEL:07%09
53 09159-10050-000 NUT, TILLER HANDLE PIVOT 1 Rp23.500 MODEL:07%09
54 09160-10114-000 WASHER, TILLER HANDLE PIVOT 4 Rp20.000 MODEL:07%09
55 09306-10020-000 BUSH, TILLER HANDLE PIVOT 2 Rp23.000 MODEL:07%09
56 09164-10016-000 BUSH, TILLER HANDLE SPRING 2 Rp39.000 MODEL:07%09
57 43768-90J01-000 SPACER, TILLER HANDLE 1 Rp305.500 MODEL:07%09
58 DISCONTINUE
SUB: 09108-10026-000		 BOLT, TILLER HANDLE BRKT STUD 2 - MODEL:07%09
59 09159-10104-000 NUT, TILLER HANDLE BRKT LOCK 2 Rp30.000 MODEL:07%09
60 09160-10140-000 WASHER, TILLER HANDLE BRKT 2 Rp16.000 MODEL:07%09
61 DISCONTINUE
SUB: 29404-93J30-000		 CLAMP 1 - ?09404-10205
62 33833-91J00-000 TUBE 1 Rp47.500 L:250!150
63 21131-96010-000 MARK, CLUTCH SHIFT 1 Rp12.000 ?21131-96003
64 63215-93110-000 MARK, HANDLE GRIP 1 Rp24.500
