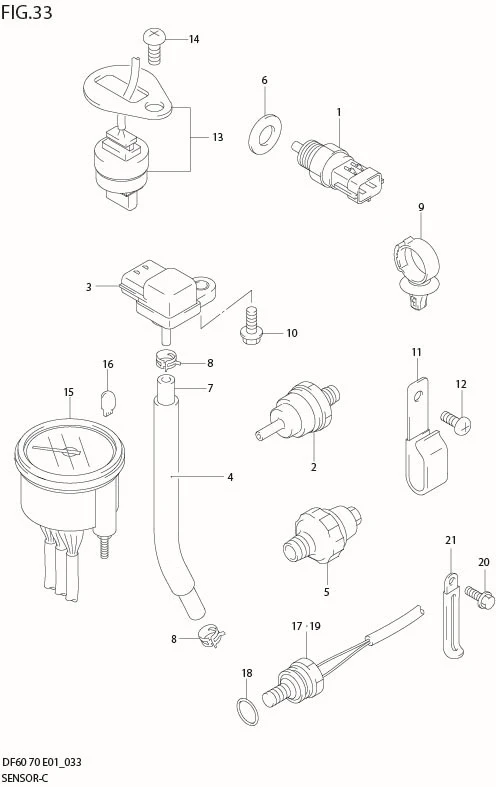

FIG 33 SENSOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 13650-56B00-000	SENSOR, IAT	1	-
2	DISCONTINUE SUB: 18133-61A01-000	FILTER, GAS	1	-	%MODEL:01
3	18590-80C40-000	SENSOR, MAP	1	Rp2.863.000
4	33834-99E00-000	PROTECTOR, HOSE	1	Rp27.000
5	37820-99E02-000 SUB: 37820-99E01-000	SWITCH, OIL PRESSURE	1	Rp230.000
6	09168-12016-000	GASKET	1	Rp16.500
7-1	09355-35006-601 SUB: 09355-35754-601	HOSE	1	Rp66.000	L:601!130
7-2	09355-35006-601 SUB: 09355-35754-601	HOSE	1	Rp66.000	L:601!150
8	09401-06406-000 SUB: 17812-90J00-000	CLIP	2	Rp16.000	?09401-06405
9	09403-20308-000	CLIP	1	Rp20.500
10	01550-06167-000	BOLT	1	Rp16.500
11	09403-17304-000	CLAMP	1	Rp18.000
12	03542-06129-000	SCREW	1	Rp16.000
13-1	34830-92E10-000	SENSOR, CYLINDER TEMP	1	Rp296.000
13-2	34830-92E30-000	SENSOR, CYLINDER TEMP	1	Rp290.500	MODEL:03%09
14	02142-06127-000	SCREW	1	Rp10.500
15-1	DISCONTINUE SUB: 34200-99E01-000	TACHOMETER, WITH MONITOR	1	-	STD:DF60T,70T
15-2	34200-93J02-000 SUB: 34200-93J00-000	TACHOMETER, WITH MONITOR	1	Rp2.161.000	BLACK
15-3	34200-93J14-000 SUB: 34200-93J11-000	TACHOMETER, WITH MONITOR	1	Rp2.439.500	WHITE
16-1	09471-12179-000	?BULB	1	Rp25.500	MODEL:98%04
16-2	09471-12077-000 SUB: 09471B12077N000	?BULB	1	Rp6.000	FOR 34200-93J00
17	34830-87JA0-000 SUB: 34830-87J10-000	SENSOR, EXHAUST TEMP	1	Rp814.500	?34830-87J00
18	09280-09005-000	O RING (D:1.9,ID:8.6)	1	Rp23.000	FOR 34830-87J10
19	34830-87J20-000	SENSOR, EXHAUST TEMP	1	Rp526.000	MODEL:03%09
20	01550-06127-000	BOLT	1	Rp17.000	FOR TEMP SENSOR
21	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	FOR TEMP SENSOR
