DF60 70 E01

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 UNDER OIL SEAL HOUSINGFIG 4 CRANKSHAFTFIG 5 TIMING BELTFIG 6 CAMSHAFTFIG 7 INLET MANIFOLD (DF60,DF70)(*)FIG 8 INLET MANIFOLD (DF60:971961%MODEL:01)FIG 9 INLET MANIFOLD (DF70:973970%MODEL:00)FIG 10 INLET MANIFOLD (DF70 MODEL:01)FIG 10A INLET MANIFOLD (DF60,70 MODEL:02%09)FIG 11 SILENCERFIG 12 EXHAUST MANIFOLDFIG 13 FUEL VAPOR SEPARATORFIG 14 FUEL VAPOR SEPARATOR (*)FIG 15 FUEL VAPOR SEPARATOR (MODEL:01%09)FIG 16 FUEL INJECTORFIG 17 FUEL INJECTOR (*)FIG 18 FUEL PUMPFIG 18A FUEL PUMP (MODEL:07%09)FIG 19 WATER PUMPFIG 19A WATER PUMP (MODEL:08%09)FIG 20 THERMOSTATFIG 21 THROTTLE BODYFIG 22 OIL PUMPFIG 23 OIL PANFIG 24 CLUTCH SHAFTFIG 25 SHIFT RODFIG 26 TRANSMISSION (MODEL:98%00)FIG 27 TRANSMISSION (MODEL:01%09)FIG 28 STARTING MOTOR (MODEL:98%00)FIG 29 STARTING MOTOR (MODEL:01%09)FIG 30 MAGNETO (MODEL:98%00)FIG 31 MAGNETO (MODEL:01%09)FIG 32 IGNITION COILFIG 33 SENSORFIG 34 HARNESSFIG 35 TRIM SENDERFIG 36 ENGINE CONTROL UNITFIG 37 CLAMP BRACKETFIG 38 SWIVEL BRACKETFIG 39 TRIM CYLINDER (MODEL:98%00)FIG 40 TRIM CYLINDER (MODEL:01%09)FIG 41 PTT MOTOR (MODEL:98%00)FIG 42 PTT MOTOR (MODEL:01%09)FIG 43 ENGINE HOLDERFIG 44 DRIVE SHAFT HOUSINGFIG 45 GEAR CASE (MODEL:98%00)FIG 46 GEAR CASE (MODEL:01%09)FIG 47 SIDE COVERFIG 48 ENGINE COVER (MODEL:98%02)FIG 48A ENGINE COVER (MODEL:03%09)FIG 49 TILLER HANDLE (DF70WTH)FIG 50 FUEL TANK (STEEL)FIG 51 FUEL TANK (PLASTIC)FIG 52 DRAG LINKFIG 53 REMOTE CONTROL (MODEL:98%03)FIG 54 REMOTE CONTROL (MODEL:04)FIG 55 REMOTE CONTROL (MODEL:05%09)FIG 56 OPT:TOP MOUNT SINGLE (1)(MODEL:05%09)FIG 57 OPT:TOP MOUNT SINGLE (2)(MODEL:05%09)FIG 58 OPT:TOP MOUNT DUAL (1)(MODEL:05%09)FIG 59 OPT:TOP MOUNT DUAL (2)(MODEL:05%09)FIG 60 OPT:METER (MODEL:98%04)FIG 61 OPT:METER (MODEL:05%)FIG 62 OPT:METER (MODEL:08%)FIG 63 OPT:TRIM SENDERFIG 64 OPT:HARNESSFIG 65 OPT:HARNESS (MODEL:08%)FIG 66 OPT:SWITCH (MODEL:98%04)FIG 67 OPT:SWITCH (MODEL:05%09)FIG 68 OPT:TRIM SWITCH (MODEL:98%04)FIG 69 OPT:TILLER HANDLEFIG 70 OPTIONAL

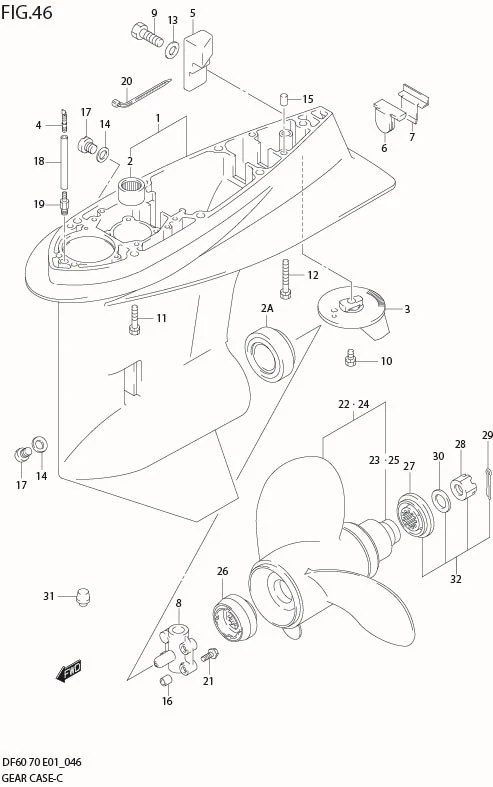

FIG 46 GEAR CASE (MODEL:01%09)

FIG 46  GEAR CASE (MODEL:01%09)
No No. Part Description Qty Price Per Pcs Remarks
1 55100-90803-0EP CASE, GEAR (BLACK) 1 Rp9.709.500
2 09263-28016-000 ?BEARING, PINION 1 Rp695.000
2A 09265-50003-000 ?BEARING 1 Rp1.528.000
3-1 55125-90JV0-000 TAB, TRIM 1 Rp136.000
3-2 55125-90J01-000 TAB, TRIM 1 Rp195.500 DF60:151225%MODEL:09
4 DISCONTINUE
SUB: 55127-87D00-000
UNION, SPEEDOMETER HOSE 1 -
5 55321-90J01-000 ANODE, GEAR CASE 1 Rp115.000
6 55332-87D12-000
SUB: 55332-87D11-000
RUBBER, EXHAUST SEAL 1 Rp92.000
7 55333-87D10-000 PLATE, EXHAUST SEAL 1 Rp119.500
8 56145-99E01-000 HOUSING, SHIFT CAM 1 Rp316.000
9 09100-06131-000 BOLT (6X12) 1 Rp13.000
10 09116-08137-000 BOLT, TRIM TAB (8X22) 1 Rp49.000 ?09116-08103
11-1 09116-10150-000
SUB: 09117-10038-000
BOLT (10X55) 6 Rp128.000 TYPE:L
11-2 09116-10150-000
SUB: 09116-10141-000
BOLT (10X55) 6 Rp128.000 TYPE:L MODEL:05%09
12 DISCONTINUE
SUB: 09117-10039-000
BOLT (10X80) 1 -
13 09160-06085-000 WASHER (6.5X15X1.0) 1 Rp9.500
14 09168-10022-000 GASKET, DRAIN PLUG 2 Rp10.500
15 09202-08006-000 PIN 2 Rp27.000
16 09206-09012-000 PIN 3 Rp22.000
17 09248-10008-000 PLUG, DRAIN (10X7.5) 2 Rp42.500
18-1 09355-40805-600 HOSE (L) 1 Rp66.000 L:600!70
18-2 09355-40805-600 HOSE (X) 1 Rp66.000 L:600!200
19 09362-09008-000 NIPPLE 1 Rp26.500
20-1 09407-14407-000 CLAMP 3 Rp18.500
20-2 09407-14407-000 CLAMP 2 Rp18.500 MODEL:06%09
21 01550-06307-000 BOLT 3 Rp18.000
22-10 DISCONTINUE
SUB: 58100-94571-000
PROPELLER (13X21) 1 -
22-2 58100-99E10-019 PROPELLER (3X14X11) 1 Rp2.978.000 V1100
22-9 DISCONTINUE
SUB: 58100-94561-000
PROPELLER (13X19) 1 -
22-8 DISCONTINUE
SUB: 58100-94581-000
PROPELLER (13 1/4X17) 1 -
22-7 58100-94554-000 PROPELLER (13 1/2X15) 1 Rp18.365.500
22-5 DISCONTINUE
SUB: 58100-94522-019
PROPELLER (13X19) 1 - V1900
22-4 DISCONTINUE
SUB: 58100-94512-019
PROPELLER (13 1/4X17) 1 - V1700
22-3 58100-94500-019 PROPELLER (13 1/2X15) 1 Rp2.978.000 V1500
22-1 58100-99E00-019 PROPELLER (3X13 3/4X13) 1 Rp2.978.000 V1300
22-6 DISCONTINUE
SUB: 58100-94532-019
PROPELLER (13X21) 1 - V2100
23 DISCONTINUE
SUB: 58120-94520-000
?BUSH 1 - W/REF.NO.22
24-1 DISCONTINUE
SUB: 58100-95540-019
PROPELLER (13X13) 1 - U1300 MODEL:01,02
24-2 DISCONTINUE
SUB: 58100-95500-019
PROPELLER (13X15) 1 - U1500 MODEL:01,02
24-3 DISCONTINUE
SUB: 58100-95511-019
PROPELLER (13X17) 1 - U1700 MODEL:01,02
24-4 58100-95550-019 PROPELLER (13X18) 1 Rp1.609.000 U1800 MODEL:01,02
24-5 DISCONTINUE
SUB: 58100-95521-019
PROPELLER (13X19) 1 - U1900 MODEL:01,02
25 DISCONTINUE
SUB: 58120-95500-000
?BUSH 1 - W/REF.NO.24
26-1 DISCONTINUE
SUB: 57635-94511-000
STOPPER, PROPELLER BUSH 1 - TYPE:V
26-2 DISCONTINUE
SUB: 57635-95510-000
STOPPER, PROPELLER BUSH 1 - TYPE:U MODEL:01,02
27-1 DISCONTINUE
SUB: 57633-94500-000
SPACER 1 - TYPE:V
27-2 DISCONTINUE
SUB: 57633-95501-000
SPACER 1 - TYPE:U MODEL:01,02
28 09141-18005-000 NUT 1 Rp71.000
29 09204-03003-000 COTTER PIN (L:25) 1 Rp17.500
30 09160-18028-000 WASHER (18.5X31X1.0) 1 Rp25.500
31 55116-87E00-000 PLUG, GEAR CASE 1 Rp629.500 OPT
32-1 57630-94500-000 PROPELLER NUT KIT 1 Rp288.000 OPT,TYPE:V
32-2 57630-95500-000 PROPELLER NUT KIT 1 Rp264.500 OPT,TYPE:U
33 25700-99E00-000 SEALING KIT, GEAR CASE 1 Rp242.500 OPT NOT SHOWN
