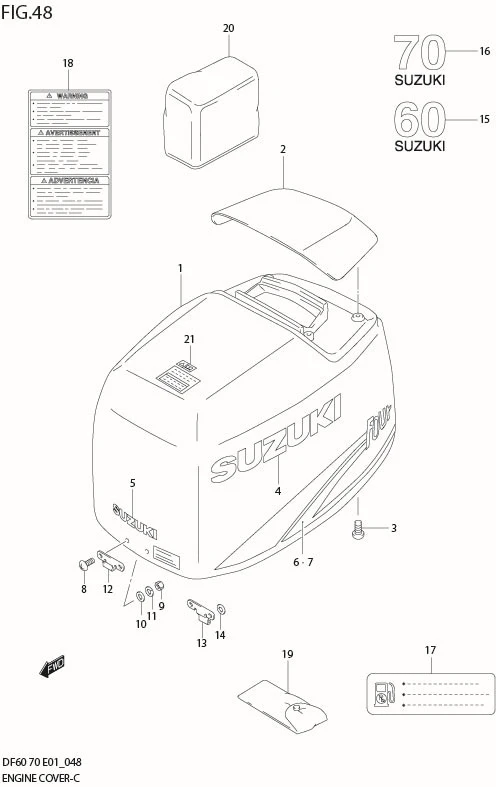

FIG 48 ENGINE COVER (MODEL:98%02)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61400-99840-0EP	COVER SET, ENGINE (BLACK)	1	-	?61400-99802-0EP
2-1	61431-99E01-0EP	?HANDLE, TILT UP (BLACK)	1	-	!61431-99E10-0EP
2-2	61431-99E10-0EP	?HANDLE, TILT UP (BLACK)	1	-	MODEL:00%02
3-1	03541-0616A-000 SUB: 03542-06163-000	?SCREW	4	Rp13.500
3-2	DISCONTINUE SUB: 09116-06106-000	?SCREW (6X20)	4	-	MODEL:00%02
4	68111-34301-Y2D	?MARK, EMBLEM SIDE (SILVER)	2	Rp133.000
5	68271-43400-Y2D	?MARK, EMBLEM FRONT (SILVER)	1	-
6	61443-99E00-000	?STRIPE, ENGINE COVER STBD	1	Rp433.000
7	61453-99E00-000	?STRIPE, ENGINE COVER PORT	1	Rp433.000
8	DISCONTINUE SUB: 09125-06025-000	?SCREW (6X20)	4	-
9	09140-06020-000	?NUT	4	Rp13.500
10	09160-06046-000	?WASHER (6.5X20X1.5)	4	Rp12.500	%MODEL:98
11	DISCONTINUE SUB: 09162-06006-000	?WASHER, LOCK (6.1X12.2X1.5)	4	-	%MODEL:98
12	61631-99E00-000	?HOOK, FASTENER	2	Rp91.000
13	61621-99E00-000	?BRACKET, ENGINE COVER	2	Rp85.000	MODEL:99%02
14	09160-06094-000	?WASHER	4	Rp11.000	MODEL:99%02
15	61435-99E00-000	MARK, EMBLEM REAR	1	Rp114.000	DF60
16	61435-99E10-000	MARK, EMBLEM REAR	1	Rp114.000	DF70
17	DISCONTINUE SUB: 69716-99E13-000	LABEL, FUEL LIMITATION	1	-
18	61458-99E31-000	LABEL, ENGINE COVER	1	Rp117.500
19	09800-81810-000	TOOL SET	1	Rp310.500
20	DISCONTINUE SUB: 68110-94510-000	COVER, WEATHER	1	-	OPT
21	DISCONTINUE SUB: 69712-93E10-000	LABEL, CAUTION	1	-	%MODEL:99
