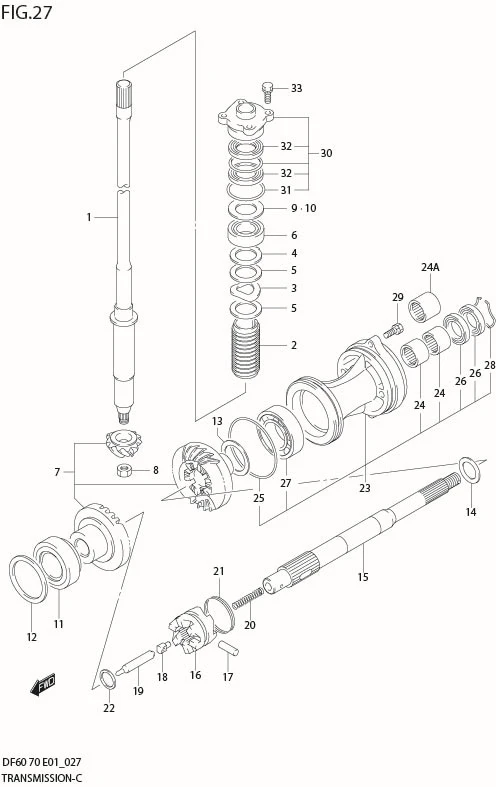

FIG 27 TRANSMISSION (MODEL:01%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	57110-99E50-000	SHAFT ASSY, DRIVE (L)	1	Rp6.897.500	MODEL:04%09
1-3	57110-99E40-000	SHAFT ASSY, DRIVE (X)	1	Rp2.990.000
1-4	DISCONTINUE SUB: 57110-99E60-000	SHAFT ASSY, DRIVE (X)	1	-	MODEL:04%09
1-1	57110-99E30-000	SHAFT ASSY, DRIVE (L)	1	Rp2.477.000
2	57133-90J02-000 SUB: 57133-90J01-000	COLLAR, DRIVE SHAFT	1	Rp153.000
3	09164-31001-000	WASHER, WAVE	1	Rp43.000	MODEL:01%03
4	09169-31001-000	WASHER (33X40X2.0)	1	Rp39.500	MODEL:01%03
5	09181-31001-000	WASHER	2	Rp40.000	MODEL:01%03
6	09265-25046-000 SUB: 09265-25040-000	BEARING	1	Rp663.500	?09265-25023
7	DISCONTINUE SUB: 57300-99823-000	PINION/GEAR SET	1	-
8	09140-14024-000	NUT	1	Rp23.000
9	57500-87873-000	SHIM SET, DRIVE SHAFT	1	Rp495.500
10-5	09181-41005-000	?SHIM (T:0.70)	1	Rp44.000
10-14	09181-41014-000	?SHIM (T:1.15)	1	Rp44.000
10-13	09181-41013-000	?SHIM (T:1.10)	1	Rp44.000
10-12	09181-41012-000	?SHIM (T:1.05)	1	Rp44.000
10-11	09181-40195-000	?SHIM (T:1.00)	1	Rp35.000
10-10	09181-41010-000	?SHIM (T:0.95)	1	Rp44.000
10-9	09181-41009-000	?SHIM (T:0.90)	1	Rp44.000
10-8	09181-41008-000	?SHIM (T:0.85)	1	Rp44.000
10-7	DISCONTINUE SUB: 09181-40190-000	?SHIM (T:0.80)	1	-
10-6	09181-41006-000	?SHIM (T:0.75)	1	Rp44.000
10-4	09181-41004-000	?SHIM (T:0.65)	1	Rp44.000
10-3	DISCONTINUE SUB: 09181-41003-000	?SHIM (T:0.60)	1	-
10-2	DISCONTINUE SUB: 09181-41002-000	?SHIM (T:0.55)	1	-
10-1	09181-40186-000	?SHIM (T:0.50)	1	Rp32.000
11	09265-50003-000	BEARING	1	Rp1.528.000
12-9	DISCONTINUE SUB: 09181-50028-000	SHIM (T:0.90)	1	-
12-10	DISCONTINUE SUB: 09181-50029-000	SHIM (T:0.95)	1	-
12-8	DISCONTINUE SUB: 09181-50027-000	SHIM (T:0.85)	1	-
12-7	DISCONTINUE SUB: 09181-50026-000	SHIM (T:0.80)	1	-
12-6	DISCONTINUE SUB: 09181-50025-000	SHIM (T:0.75)	1	-
12-4	09181-50023-000	SHIM (T:0.60)	1	Rp31.500
12-5	09181-50024-000	SHIM (T:0.70)	1	Rp31.500
12-1	09181-50020-000	SHIM (T:0.45)	1	Rp31.500
12-3	09181-50022-000	SHIM (T:0.55)	1	Rp31.500
12-2	09181-50021-000	SHIM (T:0.50)	1	Rp31.500
13-7	DISCONTINUE SUB: 09181-45009-000	SHIM (T:1.6)	1	-
13-6	DISCONTINUE SUB: 09181-45008-000	SHIM (T:1.5)	1	-
13-5	DISCONTINUE SUB: 09181-45007-000	SHIM (T:1.4)	1	-
13-4	DISCONTINUE SUB: 09181-45006-000	SHIM (T:1.3)	1	-
13-3	09181-45005-000	SHIM (T:1.2)	1	Rp34.000
13-2	09181-45004-000	SHIM (T:1.1)	1	Rp34.000
13-1	DISCONTINUE SUB: 09181-45003-000	SHIM (T:1.0)	1	-
14-1	09181-28015-000	SHIM (T:0.9)	1	Rp33.000
14-2	DISCONTINUE SUB: 09181-28016-000	SHIM (T:1.0)	1	-
14-3	DISCONTINUE SUB: 09181-28017-000	SHIM (T:1.2)	1	-
14-4	09181-28018-000	SHIM (T:1.3)	1	Rp33.000
14-5	09181-28019-000	SHIM (T:1.4)	1	Rp32.000
14-6	09181-28020-000	SHIM (T:1.6)	1	Rp33.000
15	57610-94520-000	SHAFT ASSY, PROPELLER	1	Rp3.946.500
16	DISCONTINUE SUB: 57621-94512-000	SHIFTER, CLUTCH DOG	1	-
17	09202-07002-000	PIN	1	Rp35.000
18	DISCONTINUE SUB: 09209-12007-000	PIN	1	-
19	57631-99E01-000 SUB: 57631-99E00-000	ROD, PUSH	1	Rp413.500
20	DISCONTINUE SUB: 09440-11020-000	SPRING	1	-
21-1	09440-50002-000	SPRING	1	Rp14.500	MODEL:01,02
21-2	09440-49004-000	SPRING	1	Rp21.500	MODEL:03%09
22	09181-25030-000	WASHER (25X32X3.0)	1	Rp38.000
23	56120-94513-0EP SUB: 56120-94512-0EP	HOUSING, PROP SFT BRG (BLACK)	1	Rp4.027.500	?56120-94510-0EP
24A	09263-28047-000 SUB: 09263-28033-000	?BEARING	1	Rp482.000	MODEL:03%09
24	DISCONTINUE SUB: 09263-28013-000	?BEARING	2	-
25	09280-97001-000	?O RING (D:3.5,ID:95.0)	1	Rp28.000
26	09282-28002-000	?OIL SEAL	2	Rp49.000
27	DISCONTINUE SUB: 08113-60097-000	?BEARING	1	-
28	DISCONTINUE SUB: 09387-52001-000	?RING	1	-
29	09117-08047-000	BOLT (8X30)	2	Rp44.500
30	56130-87E00-000	HOUSING	1	Rp656.500
31	09280-46004-000	?O RING (D:3.5,ID:45.7)	1	Rp21.000
32	09282-22007-000	?OIL SEAL	2	Rp79.000
33	09117-08110-000 SUB: 09117-08057-000	BOLT (8X25)	4	Rp33.000
