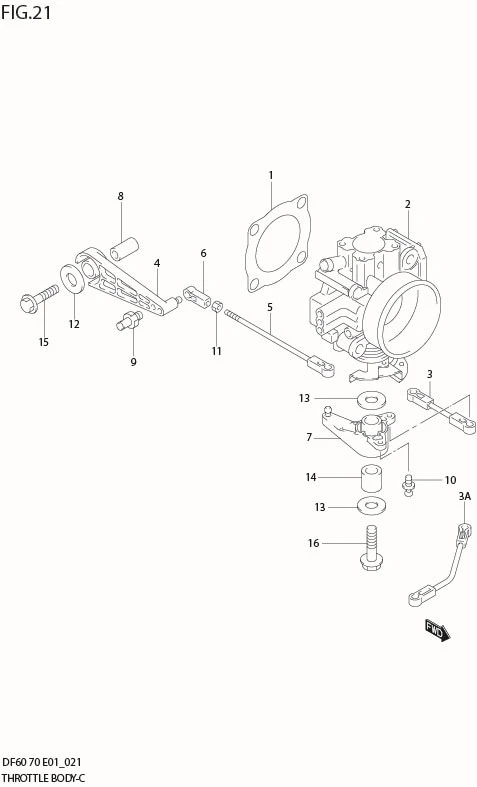

FIG 21 THROTTLE BODY

FIG 21 THROTTLE BODY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 13125-99E10-000	GASKET, THROTTLE BODY	1	-	MODEL:02%09
1-1	13125-99E00-000	GASKET, THROTTLE BODY	1	Rp22.500
2-1	13300-99E00-000	BODY, THROTTLE	1	Rp4.470.500	W/CTP SWITCH
2-2	13300-99E01-000	BODY, THROTTLE	1	Rp4.413.500	DF60:861256%
2-3	13300-99E10-000	BODY, THROTTLE	1	Rp4.328.000	MODEL:01%09
3	13510-99E10-000	ROD, THROTTLE	1	Rp128.000
3A	13510-99E11-000	ROD, THROTTLE	1	Rp202.000	DF60:861256%
4	19122-99E01-000	LEVER, INTERLINK THROTTLE	1	Rp97.500	?19122-99E00
5	19130-99E00-000	ROD, THROTTLE	1	Rp162.500
6	19131-95502-000	CONNECTOR	1	Rp39.000
7	19148-99E00-000	LEVER, THROTTLE	1	Rp69.000	?19148-99E01
8	19174-99E00-000	PIVOT, THROTTLE LEVER	1	Rp77.000
9	67473-89J00-000	PIN, REMOCON CONNECTOR	1	Rp66.500	?67473-99E00
10	09119-05010-000	PIVOT	1	Rp40.500
11	09140-05005-000	NUT	1	Rp20.000
12	DISCONTINUE SUB: 09160-06054-000	WASHER (6.5X22X1.6)	1	-
13	DISCONTINUE SUB: 09160-08130-000	WASHER (8.5X24X1.6)	2	-	?09160-08051
14	09180-08150-000	SPACER	1	Rp44.500
15	DISCONTINUE SUB: 01550-06407-000	BOLT	1	-
16	01550-08357-000	BOLT	1	Rp24.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
