DF60 70 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 UNDER OIL SEAL HOUSING FIG 4 CRANKSHAFT FIG 5 TIMING BELT FIG 6 CAMSHAFT FIG 7 INLET MANIFOLD (DF60,DF70)(*)FIG 8 INLET MANIFOLD (DF60:971961%MODEL:01)FIG 9 INLET MANIFOLD (DF70:973970%MODEL:00)FIG 10 INLET MANIFOLD (DF70 MODEL:01)FIG 10A INLET MANIFOLD (DF60,70 MODEL:02%09)FIG 11 SILENCER FIG 12 EXHAUST MANIFOLD FIG 13 FUEL VAPOR SEPARATOR FIG 14 FUEL VAPOR SEPARATOR (*)FIG 15 FUEL VAPOR SEPARATOR (MODEL:01%09)FIG 16 FUEL INJECTOR FIG 17 FUEL INJECTOR (*)FIG 18 FUEL PUMP FIG 18A FUEL PUMP (MODEL:07%09)FIG 19 WATER PUMP FIG 19A WATER PUMP (MODEL:08%09)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL PAN FIG 24 CLUTCH SHAFT FIG 25 SHIFT ROD FIG 26 TRANSMISSION (MODEL:98%00)FIG 27 TRANSMISSION (MODEL:01%09)FIG 28 STARTING MOTOR (MODEL:98%00)FIG 29 STARTING MOTOR (MODEL:01%09)FIG 30 MAGNETO (MODEL:98%00)FIG 31 MAGNETO (MODEL:01%09)FIG 32 IGNITION COIL FIG 33 SENSOR FIG 34 HARNESS FIG 35 TRIM SENDER FIG 36 ENGINE CONTROL UNIT FIG 37 CLAMP BRACKET FIG 38 SWIVEL BRACKET FIG 39 TRIM CYLINDER (MODEL:98%00)FIG 40 TRIM CYLINDER (MODEL:01%09)FIG 41 PTT MOTOR (MODEL:98%00)FIG 42 PTT MOTOR (MODEL:01%09)FIG 43 ENGINE HOLDER FIG 44 DRIVE SHAFT HOUSING FIG 45 GEAR CASE (MODEL:98%00)FIG 46 GEAR CASE (MODEL:01%09)FIG 47 SIDE COVER FIG 48 ENGINE COVER (MODEL:98%02)FIG 48A ENGINE COVER (MODEL:03%09)FIG 49 TILLER HANDLE (DF70WTH)FIG 50 FUEL TANK (STEEL)FIG 51 FUEL TANK (PLASTIC)FIG 52 DRAG LINK FIG 53 REMOTE CONTROL (MODEL:98%03)FIG 54 REMOTE CONTROL (MODEL:04)FIG 55 REMOTE CONTROL (MODEL:05%09)FIG 56 OPT:TOP MOUNT SINGLE (1)(MODEL:05%09)FIG 57 OPT:TOP MOUNT SINGLE (2)(MODEL:05%09)FIG 58 OPT:TOP MOUNT DUAL (1)(MODEL:05%09)FIG 59 OPT:TOP MOUNT DUAL (2)(MODEL:05%09)FIG 60 OPT:METER (MODEL:98%04)FIG 61 OPT:METER (MODEL:05%)FIG 62 OPT:METER (MODEL:08%)FIG 63 OPT:TRIM SENDER FIG 64 OPT:HARNESS FIG 65 OPT:HARNESS (MODEL:08%)FIG 66 OPT:SWITCH (MODEL:98%04)FIG 67 OPT:SWITCH (MODEL:05%09)FIG 68 OPT:TRIM SWITCH (MODEL:98%04)FIG 69 OPT:TILLER HANDLE FIG 70 OPTIONAL

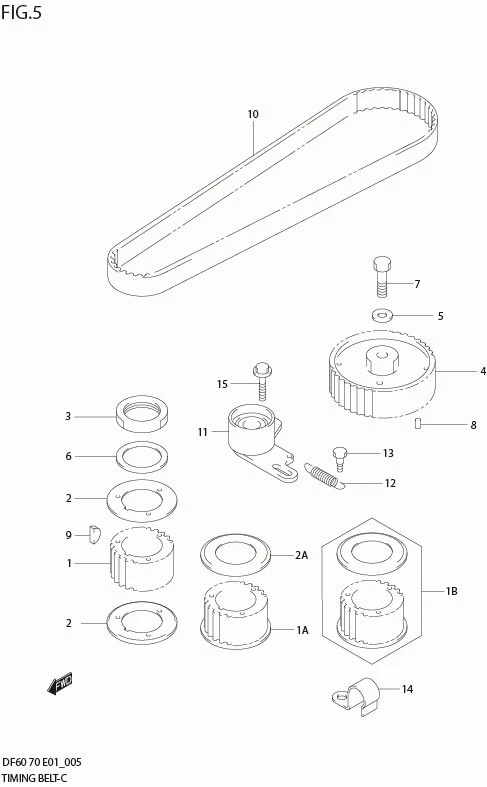

FIG 5 TIMING BELT

FIG 5 TIMING BELT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1A	12631-99E10-000	PULLEY, TIMING BELT	1	-	MODEL:01%06
1B	DISCONTINUE SUB: 12630-99810-000	PULLEY / GUIDE SET	1	-	MODEL:07%09
1	12631-99E00-000	PULLEY, TIMING BELT	1	-	!12630-99810
2	12635-99E00-000	GUIDE, TIMING BELT	2	-	!12630-99810
2A	12635-99E10-000	GUIDE, TIMING BELT	1	-	MODEL:01%06
3	DISCONTINUE SUB: 12637-99E00-000	NUT, PULLEY	1	-
4-1	DISCONTINUE SUB: 12740-99E01-000	PULLEY, CAMSHAFT TIMING	1	-	?12740-99E00
4-2	DISCONTINUE SUB: 12740-99E10-000	PULLEY, CAMSHAFT TIMING	1	-	MODEL:01%09
5	09160-12082-000	WASHER	1	Rp20.000
6	09164-38001-000	WASHER	1	Rp47.500
7	01500-12407-000	BOLT	1	Rp25.500
8	04221-05109-000	PIN	1	Rp11.500
9	08341M31059-000 SUB: 08341-31059-000	KEY	1	Rp4.500
10	12761-72F00-000	BELT, TIMING	1	Rp708.000
11	12810-99E01-000 SUB: 12810-99E00-000	TENSIONER, TIMING BELT	1	Rp1.083.500
12	DISCONTINUE SUB: 12821-99E01-000	SPRING, TENSIONER	1	-	?12821-99E00
13	09111-06083-000	BOLT	1	Rp33.000
14	09403-20310-000 SUB: 09403-20301-000	CLAMP	1	Rp12.000
15	01550-08207-000	BOLT	2	Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
