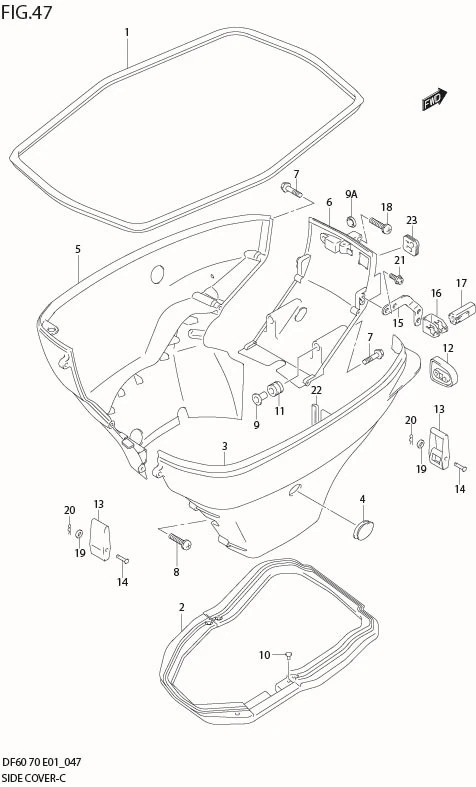

FIG 47 SIDE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61112-99E01-000	RUBBER, SIDE COVER	1	Rp597.000
2	61134-99E02-000	SEAL, SIDE COVER	1	Rp359.000
3-1	61811-99E00-0EP	COVER, SIDE STBD (BLACK)	1	-	!61811-99E01-0EP
3-2	61811-99E01-0EP	COVER, SIDE STBD (BLACK)	1	-	DF60T:861256%780232
3-3	61811-99E02-0EP	COVER, SIDE STBD (BLACK)	1	-	DF60T:780233%
3-4	61811-99E03-0EP	COVER, SIDE STBD (BLACK)	1	Rp6.327.000	MODEL:08%09
4	61817-99E00-000	PLUG, SIDE COVER	1	Rp32.000
5-1	61821-99E00-0EP	COVER, SIDE PORT (BLACK)	1	-	!61810-99810-0EP
5-2	61821-99E01-0EP	COVER, SIDE PORT (BLACK)	1	-	DF60T:780233%
5-3	61821-99E02-0EP	COVER, SIDE PORT (BLACK)	1	Rp6.327.000	MODEL:08%09
6-1	61831-99E00-0EP	PANEL, FRONT (BLACK)	1	Rp646.500
6-2	61831-99E11-0EP	PANEL, FRONT (BLACK)	1	Rp863.000	MODEL:01%09
7	09116-08174-000 SUB: 09118-08127-000	BOLT (8X40)	2	Rp42.000
8-1	DISCONTINUE SUB: 09136-06144-000	SCREW (6X30)	6	-
8-2	09139-06249-000 SUB: 09136-06148-000	SCREW (6X35)	6	Rp20.000	DF60T:780233%
9A	09250-12006-000	PLUG	1	Rp9.500	MODEL:01%05
9	DISCONTINUE SUB: 09169-08039-000	WASHER	2	-
10	09409-05302-5PK	PIN (BLACK)	3	Rp11.500
11	09320-11023-000 SUB: 09320-11013-000	CUSHION	2	Rp26.000
12	DISCONTINUE SUB: 61124-99E01-000	GROMMET, REMOCON CABLE	1	-
13	61610-90L00-000 SUB: 61610-93901-000	FASTENER	2	Rp198.000
14	61616-93EL0-000 SUB: 61616-93E00-000	PIN, LEVER	2	Rp59.000
15	61833-99E02-000	BRACKET, FRONT PANEL	1	Rp108.500
16	67341-99E00-000	HOLDER, REMOCON CABLE	1	Rp180.000
17	DISCONTINUE SUB: 67343-99E00-000	STOPPER, REMOCON CABLE	1	-
18	09136-06142-000	SCREW (6X30)	2	Rp26.500
19	09161-04012-000	WASHER (4.2X11X1.0)	2	Rp15.500
20	09385-04003-000	PIN, SNAP	2	Rp18.000
21	01550-06207-000 SUB: 01550B06207N000	BOLT	2	Rp3.000
22	61135-99E00-000	CUSHION, SIDE COVER	1	Rp32.000
23-1	36658-99E01-000	GROMMET, CABLE	1	Rp38.000	DF60T,70T
23-2	36658-99E10-000	GROMMET, CABLE	1	Rp91.500	DF60TH,70TH
23-3	36658-99E10-000	GROMMET, CABLE	1	Rp91.500	MODEL:05%09
