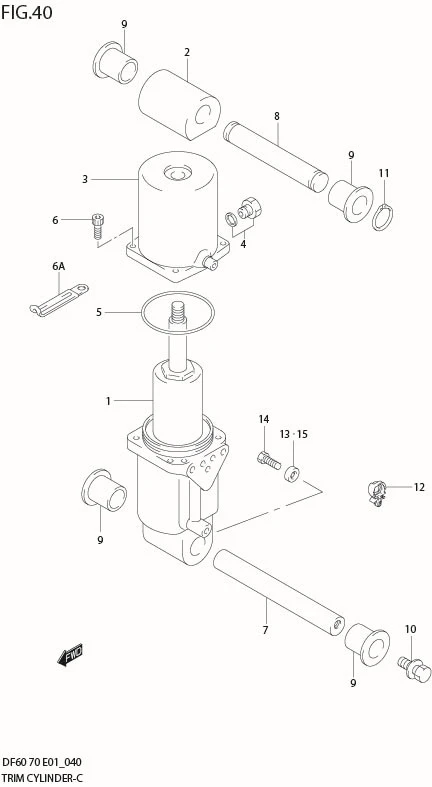

FIG 40 TRIM CYLINDER (MODEL:01%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48400-90J03-000 SUB: 48400-90J00-000	MANIFOLD ASSY, PTT	1	Rp7.841.500
2	48611-90J00-000	JOINT, METAL	1	Rp1.437.500
3-1	48571-87L01-000 SUB: 48571-90J01-000	TANK	1	Rp1.403.000
3-2	48571-87L00-000 SUB: 48571-90J20-000	TANK	1	Rp985.000	MODEL:04%09
4	48572-87J10-000	PLUG	1	Rp169.500
5	48557-90J00-000	O RING	1	Rp154.500
6	48862-87J20-000 SUB: 48862-87J10-000	BOLT	4	Rp111.500
6A	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-
7	48121-90J00-000	SHAFT, TILT CYLINDER LOWER	1	Rp551.500
8	48321-90J00-000	SHAFT, TILT CYLINDER UPPER	1	Rp351.000
9	48326-95E00-000	BUSH, TILT CYLINDER	4	Rp53.500
10	09116-10131-000	BOLT	2	Rp49.000
11	09380-22015-000	CIRCLIP	2	Rp24.000
12	09403-20308-000	CLAMP	1	Rp20.500
13	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	1	Rp79.500
14-1	DISCONTINUE SUB: 09128-06021-000	BOLT (6X14)	1	-
14-2	09103-06281-000	BOLT	1	Rp20.500	MODEL:06%09
15	DISCONTINUE SUB: 55321-87J10-000	ANODE (MAGNESIUM)	1	-	OPT
