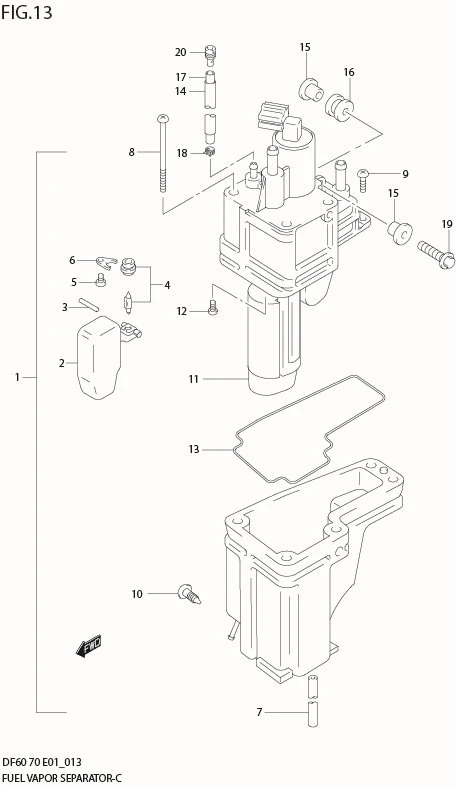

FIG 13 FUEL VAPOR SEPARATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15600-99E00-000	SEPARATOR, FUEL VAPOR	1	Rp4.869.000
2	15650-99E00-000	?FLOAT	1	Rp505.000	?15631-99E00
3	15654-99E00-000	?PIN	1	Rp20.500	?15632-99E00
4	13370-99E00-000	?VALVE, NEEDLE	1	Rp534.000	W/VALVE SEAT
5	02112-04083-000 SUB: 02112B04083N000	?SCREW	1	Rp7.500
6	DISCONTINUE SUB: 13373-39110-000	?PLATE	1	-
7	DISCONTINUE SUB: 15644-99E00-000	?HOSE, DRAIN	1	-
8	15627-99E00-000	?SCREW (L:70)	3	Rp60.000
9	15628-99E00-000	?SCREW (L:15)	2	Rp20.500
10	15629-99E10-000	?SCREW, DRAIN	1	Rp45.500	?15629-99E00
11	DISCONTINUE SUB: 15641-99E00-000	?FILTER, FUEL PUMP	1	-
12	DISCONTINUE SUB: 02112-05103-000	?SCREW	1	-	?15642-99E00
13	15626-99E00-000	?O RING	1	Rp144.000	?15643-99E00
14	DISCONTINUE SUB: 18498-87JC0-000	PROTECTOR	1	-	L:450!390
15	DISCONTINUE SUB: 09169-06067-000	WASHER	6	-
16	09320-09059-000 SUB: 09320-09039-000	CUSHION	3	Rp26.000
17	DISCONTINUE SUB: 09355-35755-600	HOSE	1	-	L:600!460
18	DISCONTINUE SUB: 09401-06405-000	CLIP	2	-
19	02162-06257-000	BOLT	3	Rp9.500
20	DISCONTINUE SUB: 09493-20020-000	JET, EVAP HOSE	2	-	OPT
