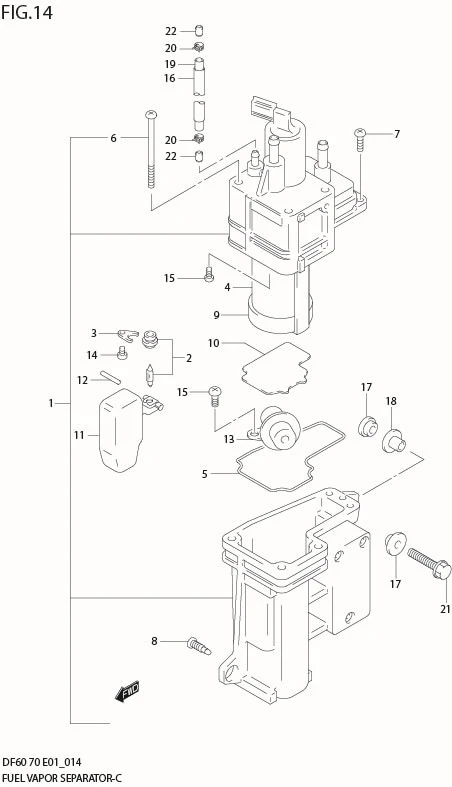

FIG 14 FUEL VAPOR SEPARATOR (*)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15600-99E12-000	SEPARATOR, FUEL VAPOR	1	-
2	13370-99E00-000	?VALVE, NEEDLE	1	Rp534.000
3	DISCONTINUE SUB: 13373-39110-000	?PLATE	1	-
4	15200-87J10-000	?PUMP	1	Rp4.564.500	?15200-87J00
5	15626-99E00-000	?O RING	1	Rp144.000
6	15627-99E00-000	?SCREW (L:70)	3	Rp60.000
7	15628-99E00-000	?SCREW (L:15)	2	Rp20.500
8	15629-99E10-000	?SCREW, DRAIN	1	Rp45.500	?15629-99E00
9	DISCONTINUE SUB: 15641-99E00-000	?FILTER, FUEL PUMP	1	-
10	15642-99E10-000	?PLATE	1	Rp93.500
11	15650-99E00-000	?FLOAT	1	Rp505.000
12	15654-99E00-000	?PIN	1	Rp20.500
13	15760-87J00-000	?REGULATOR	1	Rp2.443.000
14	02112-04083-000 SUB: 02112B04083N000	?SCREW	1	Rp7.500
15	DISCONTINUE SUB: 02112-05103-000	?SCREW	2	-
16	DISCONTINUE SUB: 18498-87JC0-000	PROTECTOR (L:450)	1	-	L:450!390
17	DISCONTINUE SUB: 09169-06067-000	WASHER	6	-
18	09320-09059-000 SUB: 09320-09039-000	CUSHION	3	Rp26.000
19	09352-50823-600	HOSE	1	Rp7.000	L:600!460
20	09401-08409-000	CLIP	2	Rp15.000
21	01550-06257-000 SUB: 01550B06257N000	BOLT	3	Rp3.500
22	15661-99E00-000	JET, EVAP HOSE	2	Rp61.000	OPT
