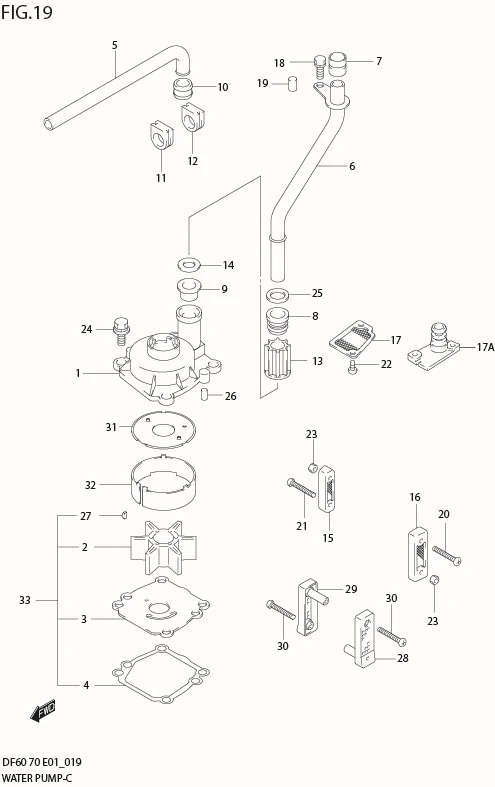

FIG 19 WATER PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	17400-99831-000 SUB: 17411-87E10-000	CASE, WATER PUMP	1	Rp1.264.000	DF70WT,70WTH
1-1	17411-87E02-000	CASE, WATER PUMP	1	-	DF60T(TH),70T(TH)
2	17461-87E12-000 SUB: 17461-87E11-000	IMPELLER, WATER PUMP	1	Rp466.500	?17461-87E00
3-1	17471-92J00-000 SUB: 17471-87E01-000	PANEL, PUMP CASE UNDER	1	Rp122.500
3-2	17471-92J10-000 SUB: 17471-87E10-000	PANEL, PUMP CASE UNDER	1	Rp397.500	DF60WT,DF70WT,70WTH
4	17472-87E10-000	GASKET, PUMP CASE	1	Rp53.000
5	17521-87E01-000	TUBE, WATER SUB	1	Rp178.000	%MODEL:00
6-1	17560-99E00-000	TUBE, WATER (L)	1	-
6-2	DISCONTINUE SUB: 17560-99E10-000	TUBE, WATER (X)	1	-
7	DISCONTINUE SUB: 17562-87D00-000	BUSH, WATER TUBE UPPER	1	-
8	17563-87D01-000 SUB: 17563-87D00-000	BUSH, WATER TUBE LOWER	1	Rp75.000
9	17564-87D00-000	BUSH, WATER PUMP CASE	1	Rp104.000
10	DISCONTINUE SUB: 17565-87D01-000	BUSH, SUB WATER TUBE	1	-	%MODEL:00
11	DISCONTINUE SUB: 17566-87D00-000	GROMMET	1	-	%MODEL:00
12	DISCONTINUE SUB: 17567-87D00-000	GROMMET	1	-	DF60:%971961
13	DISCONTINUE SUB: 17611-87D00-000	SPACER, WATER TUBE UPPER (X)	1	-
14	DISCONTINUE SUB: 17612-87D00-000	SPACER, WATER TUBE	1	-
15	17631-87E00-000	FILTER, WATER PORT	1	Rp48.500	%MODEL:00
16	17632-87E00-000	FILTER, WATER STBD	1	Rp48.500	%MODEL:00
17	17635-87E00-000	FILTER, WATER SUB	1	Rp39.000
17A	17635-90J00-000	PLUG, SUB WATER TUBE	1	Rp40.500	DF60:371535%
18	09117-06030-000	BOLT (6X16)	1	Rp18.000	DF60:%971961
19	09202-07001-000	PIN	1	Rp8.000	DF60:971962%
20	DISCONTINUE SUB: 09125-04018-000	SCREW (4X35)	1	-	%MODEL:00
21	DISCONTINUE SUB: 09125-04023-000	SCREW (4X30)	1	-	%MODEL:00
22	09125-05046-000	SCREW (5X12)	2	Rp14.000
23	09140-04007-000	NUT	2	Rp14.000	%MODEL:00
24	09117-08110-000 SUB: 09117-08057-000	BOLT (8X25)	4	Rp33.000
25	09161-16008-000	WASHER (15.8X26X1.0)	1	Rp19.000
26	09202-06031-000	PIN	2	Rp21.500
27	09420-04009-000	KEY	1	Rp60.000
28	17631-90J00-000	FILTER, WATER PORT	1	Rp84.500	MODEL:01%07
29	17632-90J00-000	FILTER, WATER STBD	1	Rp84.500	MODEL:01%07
30-1	03112-04303-000	SCREW	2	-	MODEL:01%02
30-2	09132-04034-000	SCREW	2	Rp15.000	MODEL:03%07
31	17412-99E00-000	PANEL, PUMP CASE UPPER	1	Rp260.000	DT70WT,70WTH
32	17413-99E00-000	SLEEVE, WATER PUMP	1	Rp316.500	DT70WT,70WTH
33	DISCONTINUE SUB: 17400-87E03-000	KIT, WATER PUMP REPAIR	1	-	OPT
