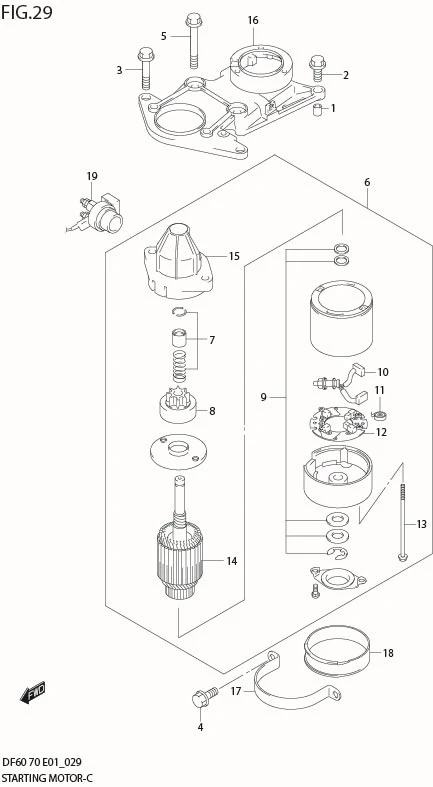

FIG 29 STARTING MOTOR (MODEL:01%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	09206-09014-000	PIN	2	Rp19.000
2	01550-06307-000	BOLT	2	Rp18.000
3	01550-08257-000	BOLT	2	Rp18.500
4	01550-08207-000	BOLT	2	Rp19.000
5	01550-08457-000	BOLT	2	Rp25.500
6	DISCONTINUE SUB: 31100-87J11-000	STARTING MOTOR	1	-
7	31312-87J10-000	?PINION STOP SET	1	Rp113.000
8	31320-87J10-000	?PINION ASSY	1	Rp2.928.500
9	31360-87J10-000	?WASHER SET	1	Rp173.000
10	31131-99E00-000	?BRUSH (+)	1	Rp272.500
11	31135-99E00-000	?SPRING	2	Rp66.000
12	31173-99E00-000	?HOLDER, BRUSH	1	Rp1.145.500	INC BRUSH(-)
13	31281-87J00-000	?BOLT, HOUSING	2	Rp23.000
14	31310-87J10-000	?ARMATURE	1	Rp2.563.000
15	31151-87J11-000	?CASE, GEAR	1	Rp2.333.500
16	31911-99E10-000	BRACKET, STARTING MOTOR	1	Rp634.000
17	31912-99E01-000	BAND, STARTING MOTOR	1	Rp46.000
18	31918-94600-000	DAMPER, LOWER	1	Rp66.000
19	31800-94401-000	RELAY, STARTER MOTOR	1	Rp1.008.500
