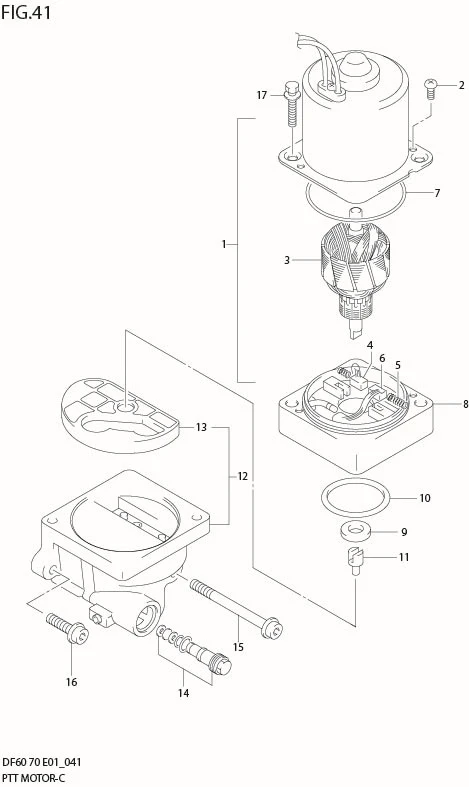

FIG 41 PTT MOTOR (MODEL:98%00)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38100-99E01-0EP	MOTOR ASSY, PTT (BLACK)	1	Rp5.524.000	?38100-99E00-0EP
2	31111-94900-000	?SCREW	2	Rp36.000
3	31311-94900-000	?ARMATURE	1	Rp4.535.500
4	31133-94910-000 SUB: 31133-94900-000	?BRUSH	1	Rp132.000
5	31135-94900-000	?SPRING	2	Rp43.000
6	DISCONTINUE SUB: 31136-94900-000	?BREAKER ASSY	1	-	?31136-95E00
7	DISCONTINUE SUB: 31123-87D60-000	?O RING	1	-
8	31173-94920-000 SUB: 31173-94900-000	?HOLDER, BRUSH	1	Rp3.282.500
9	33799-97E00-000	OIL SEAL	1	Rp207.000
10	48585-95E00-000	O RING	1	Rp34.000
11	48583-95E00-000	JOINT	1	Rp95.500
12	DISCONTINUE SUB: 48502-94901-000	PUMP	1	-
13	48582-95E01-000 SUB: 48582-95E00-000	?FILTER	1	Rp304.000
14	DISCONTINUE SUB: 48864-94911-000	?VALVE SET, MANUAL	1	-
15	DISCONTINUE SUB: 48862-95E00-000	BOLT	1	-
16	DISCONTINUE SUB: 48862-95E10-000	BOLT	2	-
17	31281-95E00-000	BOLT, THROUGH	2	Rp53.000
