DF60 70 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 UNDER OIL SEAL HOUSING FIG 4 CRANKSHAFT FIG 5 TIMING BELT FIG 6 CAMSHAFT FIG 7 INLET MANIFOLD (DF60,DF70)(*)FIG 8 INLET MANIFOLD (DF60:971961%MODEL:01)FIG 9 INLET MANIFOLD (DF70:973970%MODEL:00)FIG 10 INLET MANIFOLD (DF70 MODEL:01)FIG 10A INLET MANIFOLD (DF60,70 MODEL:02%09)FIG 11 SILENCER FIG 12 EXHAUST MANIFOLD FIG 13 FUEL VAPOR SEPARATOR FIG 14 FUEL VAPOR SEPARATOR (*)FIG 15 FUEL VAPOR SEPARATOR (MODEL:01%09)FIG 16 FUEL INJECTOR FIG 17 FUEL INJECTOR (*)FIG 18 FUEL PUMP FIG 18A FUEL PUMP (MODEL:07%09)FIG 19 WATER PUMP FIG 19A WATER PUMP (MODEL:08%09)FIG 20 THERMOSTAT FIG 21 THROTTLE BODY FIG 22 OIL PUMP FIG 23 OIL PAN FIG 24 CLUTCH SHAFT FIG 25 SHIFT ROD FIG 26 TRANSMISSION (MODEL:98%00)FIG 27 TRANSMISSION (MODEL:01%09)FIG 28 STARTING MOTOR (MODEL:98%00)FIG 29 STARTING MOTOR (MODEL:01%09)FIG 30 MAGNETO (MODEL:98%00)FIG 31 MAGNETO (MODEL:01%09)FIG 32 IGNITION COIL FIG 33 SENSOR FIG 34 HARNESS FIG 35 TRIM SENDER FIG 36 ENGINE CONTROL UNIT FIG 37 CLAMP BRACKET FIG 38 SWIVEL BRACKET FIG 39 TRIM CYLINDER (MODEL:98%00)FIG 40 TRIM CYLINDER (MODEL:01%09)FIG 41 PTT MOTOR (MODEL:98%00)FIG 42 PTT MOTOR (MODEL:01%09)FIG 43 ENGINE HOLDER FIG 44 DRIVE SHAFT HOUSING FIG 45 GEAR CASE (MODEL:98%00)FIG 46 GEAR CASE (MODEL:01%09)FIG 47 SIDE COVER FIG 48 ENGINE COVER (MODEL:98%02)FIG 48A ENGINE COVER (MODEL:03%09)FIG 49 TILLER HANDLE (DF70WTH)FIG 50 FUEL TANK (STEEL)FIG 51 FUEL TANK (PLASTIC)FIG 52 DRAG LINK FIG 53 REMOTE CONTROL (MODEL:98%03)FIG 54 REMOTE CONTROL (MODEL:04)FIG 55 REMOTE CONTROL (MODEL:05%09)FIG 56 OPT:TOP MOUNT SINGLE (1)(MODEL:05%09)FIG 57 OPT:TOP MOUNT SINGLE (2)(MODEL:05%09)FIG 58 OPT:TOP MOUNT DUAL (1)(MODEL:05%09)FIG 59 OPT:TOP MOUNT DUAL (2)(MODEL:05%09)FIG 60 OPT:METER (MODEL:98%04)FIG 61 OPT:METER (MODEL:05%)FIG 62 OPT:METER (MODEL:08%)FIG 63 OPT:TRIM SENDER FIG 64 OPT:HARNESS FIG 65 OPT:HARNESS (MODEL:08%)FIG 66 OPT:SWITCH (MODEL:98%04)FIG 67 OPT:SWITCH (MODEL:05%09)FIG 68 OPT:TRIM SWITCH (MODEL:98%04)FIG 69 OPT:TILLER HANDLE FIG 70 OPTIONAL

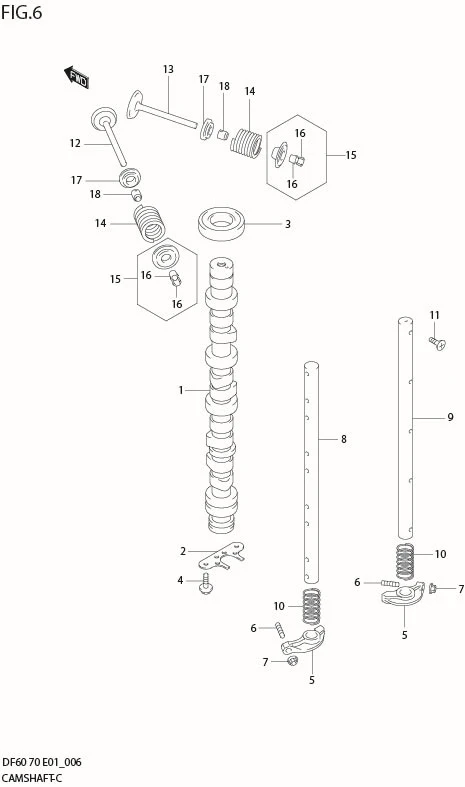

FIG 6 CAMSHAFT

FIG 6 CAMSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 12710-99E12-000	CAMSHAFT	1	-	DF70T,70WT,70WTH
1-1	12710-99E02-000	CAMSHAFT	1	Rp4.792.000	DF60T
2	12731-99E00-000	PLATE, CAMSHAFT THRUST	1	Rp34.000
3	09283-32041-000	SEAL, OIL (32X52X8)	1	Rp166.000
4	01550-06167-000	BOLT	2	Rp16.500
5	12841-99E02-000	ARM, ROCKER	8	Rp335.000
6	12848-82000-000	SCREW, VALVE ADJUSTING	8	Rp56.500
7	09159-07004-000	NUT	8	Rp25.500
8	12860-82600-000	SHAFT, INTAKE ROCKER ARM	1	Rp665.500
9	12870-82600-000	SHAFT, EXHAUST ROCKER ARM	1	Rp804.500
10	12891-51G00-000	SPRING, ROCKET ARM	8	Rp19.500
11	02122-0612A-000 SUB: 02122B0612AN000	SCREW	10	Rp3.500
12	12911-82010-000	VALVE, INTAKE	4	Rp771.000
13	12915-82062-000	VALVE, EXHAUST	4	Rp484.000
14	12921-60A00-000	SPRING, VALVE	8	Rp101.500
15	12900-82811-000	RETAINER COTTER VALVE SET	8	Rp73.000
16	12932-82000-000	?COTTER, VALVE	16	Rp20.500
17	12933-73000-000	SEAT, VALVE SPRING	8	Rp19.500
18	09289-07007-000	SEAL	8	Rp45.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
