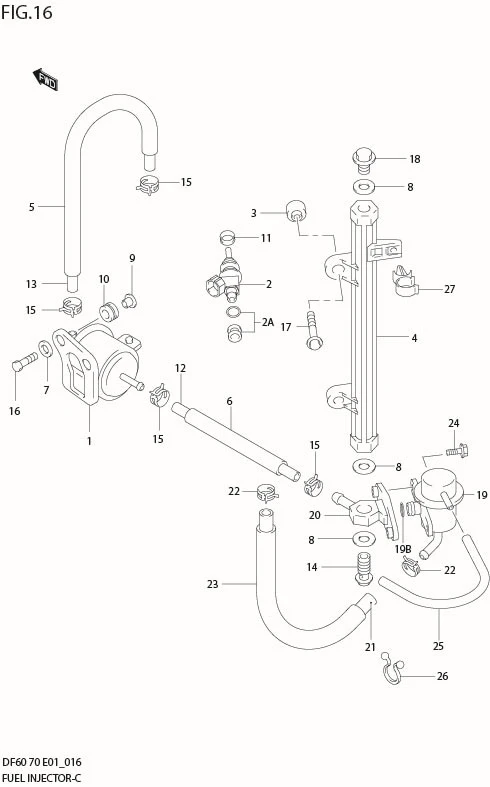

FIG 16 FUEL INJECTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15440-99E01-000	FILTER, HIGH PRESSURE FUEL	1	Rp833.000
2	DISCONTINUE SUB: 15710-99E00-000	INJECTOR, FUEL	4	-
2A	15716-58BT0-000	?GROMMET SET	4	Rp192.000
3	15735-58B00-000	INSULATOR, DELIVERY PIPE	2	Rp45.500
4	15751-99E00-000	PIPE, DELIVERY	1	Rp695.000
5	18498-99E20-000	PROTECTOR, FUEL HOSE	1	Rp64.000	L:450
6	18498-99E20-000	PROTECTOR, FUEL HOSE	1	Rp64.000	L:450!120
7	09160-06006-000 SUB: 09160-06084-000	WASHER (6.5X18X1.6)	2	Rp11.000
8	09168-12013-000	GASKET (11.8X22X1.2)	3	Rp22.500
9	09169-06062-000	WASHER	2	Rp16.500
10	09320-08501-000	CUSHION	2	Rp21.500
11	09320-09022-000 SUB: 09320-08062-000	CUSHION	4	Rp8.500
12	09356-75137-600	HOSE (FILTER TO PIPE)	1	Rp1.190.000	L:600!200
13	09356-75137-600	HOSE (PUMP TO FILTER)	1	Rp1.190.000	L:600!520
14	09360-12008-000	BOLT, UNION	1	Rp70.500
15	09401-11414-000	CLIP	4	Rp25.000
16	DISCONTINUE SUB: 01500-06257-000	BOLT	2	-
17	01550-08407-000	BOLT	2	Rp24.000
18	01550-12167-000	BOLT	1	Rp24.000
19	15610-51E11-000 SUB: 15610-51E10-000	REGULATOR ASSY, FUEL PRESSURE	1	Rp1.848.000
19B	DISCONTINUE SUB: 15710-51E10-000	?O RING	1	-
20	15765-99E00-000	ADAPTER	1	Rp458.500
21	09356-58127-600	HOSE (P/R TO V/S)	1	Rp191.500	L:600!350
22	09401-10409-000 SUB: 09401B10409N000	CLIP	2	Rp7.500
23	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE	1	-	L:610!280
24	01550-06127-000	BOLT	2	Rp17.000
25	DISCONTINUE SUB: 09355-35755-600	HOSE (P/R RELEASE)	1	-	L:600!200
26	DISCONTINUE SUB: 09408-00008-000	CLAMP	1	-
27	09403-07308-000	CLAMP	1	Rp10.000
