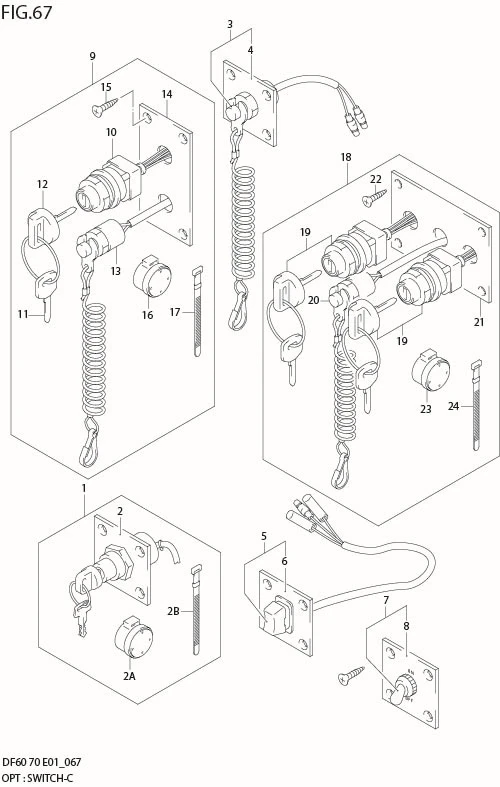

FIG 67 OPT:SWITCH (MODEL:05%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37100-96J01-000 SUB: 37100-96J00-000	PANEL ASSY, IGNITION SW	1	Rp1.589.000	MODEL:06%09
1-1	37100-96J01-000 SUB: 37100-93J00-000	PANEL ASSY, IGNITION SW	1	Rp1.589.000
2A	38500-93J90-000	?BUZZER ASSY, WARNING	1	Rp297.000	MODEL:06%09
2B	DISCONTINUE SUB: 09407-08401-000	?CLAMP, BUZZER	1	-	MODEL:06%09
2	37139-99E00-000	?PANEL, IGNITION SW	1	Rp316.500
3	37803-93J06-000 SUB: 37803-93J00-000	PANEL ASSY, EMERGENCY SW	1	Rp578.000
4	DISCONTINUE SUB: 37825-99E00-000	?PANEL, EMERGENCY SW	1	-
5	DISCONTINUE SUB: 37805-93J00-000	PANEL ASSY, PTT SW	1	-
6	37855-99E00-000	?PANEL, PTT SW	1	Rp469.500
7	37210-93J00-000	PANEL ASSY, LIGHTING SW	1	Rp758.000
8	37212-93J00-000	?PANEL, LIGHTING SW	1	Rp316.500
9-1	37100-96J27-000 SUB: 37100-93J20-000	PANEL ASSY, ENGINE SW	1	Rp1.843.500
9-2	37100-96J27-000 SUB: 37100-96J20-000	PANEL ASSY, ENGINE SW	1	Rp1.843.500	MODEL:06%09
10	37110-93J02-000 SUB: 37110-93J00-000	?SWITCH ASSY, IGNITION	1	Rp1.295.500
11-12	DISCONTINUE SUB: 37141-99EB0-000	??KEY (942)	1	-
11-11	DISCONTINUE SUB: 37141-99EA0-000	??KEY (941)	1	-
11-10	DISCONTINUE SUB: 37141-99E90-000	??KEY (940)	1	-
11-9	DISCONTINUE SUB: 37141-99E80-000	??KEY (939)	1	-
11-8	DISCONTINUE SUB: 37141-99E70-000	??KEY (938)	1	-
11-6	DISCONTINUE SUB: 37141-99E50-000	??KEY (936)	1	-
11-5	DISCONTINUE SUB: 37141-99E40-000	??KEY (935)	1	-
11-4	DISCONTINUE SUB: 37141-99E30-000	??KEY (934)	1	-
11-3	DISCONTINUE SUB: 37141-99E20-000	??KEY (933)	1	-
11-2	DISCONTINUE SUB: 37141-99E10-000	??KEY (932)	1	-
11-1	DISCONTINUE SUB: 37141-99E00-000	??KEY (931)	1	-
11-7	DISCONTINUE SUB: 37141-99E60-000	??KEY (937)	1	-
12	37143-99E00-000	??CAP, KEY	1	Rp26.000
13	37820-93J05-000 SUB: 37820-93J00-000	?SWITCH ASSY, EMERGENCY	1	Rp520.000
14	37139-99E20-000	?PANEL	1	Rp605.000
15	03121-0516A-000	?SCREW	4	Rp11.500
16	38500-93J90-000	?BUZZER ASSY, WARNING	1	Rp297.000	MODEL:06%09
17	DISCONTINUE SUB: 09407-08401-000	?CLAMP, BUZZER	1	-	MODEL:06%09
18	37100-96J17-000 SUB: 37100-96J10-000	PANEL ASSY, DUAL ENGINE SW	1	Rp3.552.500	MODEL:06%09
19	37110-93J02-000 SUB: 37110-93J00-000	?SWITCH ASSY, IGNITION	2	Rp1.295.500
20	37820-93J90-000	?SWITCH ASSY, EMERGENCY	1	-
21	37139-99E10-000	?PANEL	1	Rp1.090.000
22	03121-0516A-000	?SCREW	4	Rp11.500
23	38500-93J90-000	?BUZZER ASSY, WARNING	1	Rp297.000
24	DISCONTINUE SUB: 09407-08401-000	?CLAMP, BUZZER	1	-
