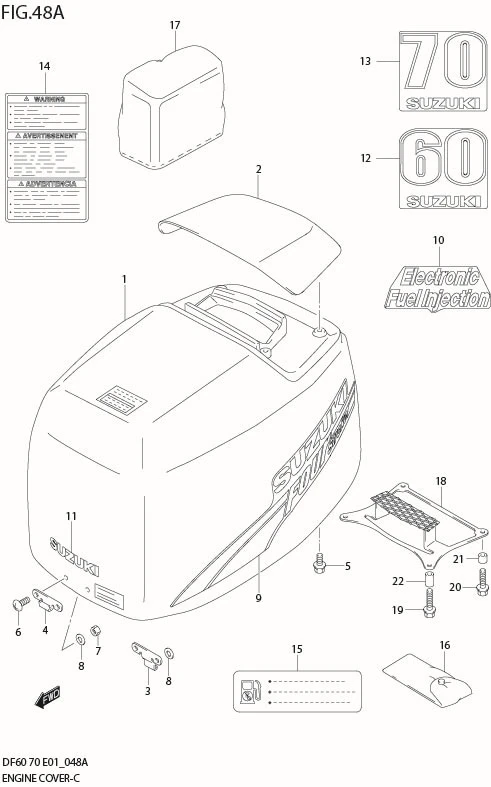

FIG 48A ENGINE COVER (MODEL:03%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61400-99882-0EP	COVER SET, ENGINE (BLACK)	1	Rp8.941.000
2	61431-99E11-0EP	?HANDLE, TILT UP (BLACK)	1	Rp1.400.000
3	61621-99E00-000	?BRACKET, ENGINE COVER	2	Rp85.000
4	61631-99E00-000	?HOOK, ENGINE COVER FASTENER	2	Rp91.000
5	29116-93J00-000	?BOLT (6X20)	4	Rp23.000	?09116-06106
6	DISCONTINUE SUB: 09125-06025-000	?SCREW (6X20)	4	-
7	09140-06020-000	?NUT	4	Rp13.500
8	09160-06094-000	?WASHER (6.5X15X1.5)	4	Rp11.000
9-1	61443-99E71-000	?STRIPE, ENGINE COVER STBD	1	Rp592.000
9-2	61453-99E71-000	?STRIPE, ENGINE COVER PORT	1	Rp592.000
10	61446-87J01-000	?DECAL, EFI	1	Rp86.000
11	68271-87J00-000	?MARK, EMBLEM FRONT (SILVER)	1	Rp92.500	?68271-43400-Y2D
12	61435-99E71-000	MARK, EMBLEM REAR	1	Rp137.500	DF60
13	61435-99E81-000	MARK, EMBLEM REAR	1	Rp137.500	DF70
14	61458-99E31-000	LABEL, ENGINE COVER	1	Rp117.500
15	DISCONTINUE SUB: 69716-99E13-000	LABEL, FUEL LIMITATION	1	-
16	09800-81810-000 SUB: 09800-81811-000	TOOL SET	1	Rp310.500
17	DISCONTINUE SUB: 68110-94510-000	COVER, WEATHER	1	-	OPT
18	61580-99E00-000	PLATE, AIR INTAKE INNER	1	Rp1.076.500	OPT,MODEL:04%09
19	29117-93J00-000	BOLT (6X45)	2	Rp27.000	OPT,MODEL:04%09
20	DISCONTINUE SUB: 09117-06032-000	BOLT (6X30)	2	-	OPT,MODEL:04%09
21	09180-06132-000	SPACER (6.5X13.5X7.5)	2	Rp21.500	OPT,MODEL:04%09
22	09180-06336-000	SPACER (6.5X13.5X22.5)	2	Rp42.000	OPT,MODEL:04%09
