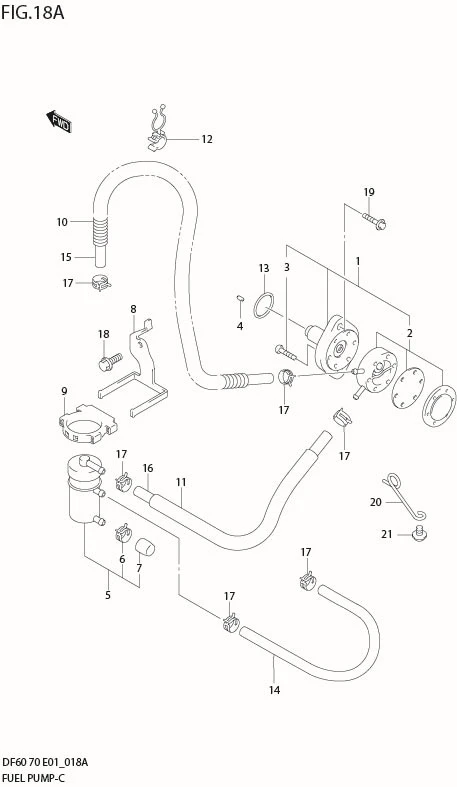

FIG 18A FUEL PUMP (MODEL:07%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	15100-99E1V-000	PUMP, FUEL	1	Rp1.489.500	DF70WT,70WTH
1-1	15100-99E1V-000 SUB: 15100-99E0V-000	PUMP, FUEL	1	Rp1.489.500
2-1	15170-99E1V-000 SUB: 15170-99E0V-000	?DIAPHRAGM SET	1	Rp792.500
2-2	15170-99E1V-000	?DIAPHRAGM SET	1	Rp792.500	DF70WT,70WTH
3	15251-93E00-000	?SCREW	6	Rp12.500
4	15131-99E00-000	ROD, FUEL PUMP	1	Rp53.000
5	15410-87J30-000	FILTER, FUEL	1	Rp161.000
6	15419-87J00-000	?CAP, FUEL FILTER	1	Rp52.000
7	09401-11423-000 SUB: 17818-90J00-000	?CLIP	1	Rp19.500
8	15421-99E20-000	BRACKET, FUEL FILTER	1	Rp42.000
9	15422-96J01-000 SUB: 15422-96J00-000	CLAMP, FUEL FILTER	1	Rp60.500
10	16919-99E10-000	PROTECTOR, FUEL HOSE (540)	1	Rp42.500
11	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-
12	34980-60B00-000	CLAMP, FUEL HOSE	2	Rp36.000
13	09280-26005-000 SUB: 09280B26005N000	O RING (D:2.4,ID:26.2)	1	Rp3.000
14-1	15191-99E00-000	HOSE (CONN TO FILTER)	1	Rp73.500
14-2	15191-99E10-000	HOSE (CONN TO FILTER)	1	Rp99.500	DF70WT,70WTH
15-1	09355-70125-00B	HOSE (PUMP TO SEPARATOR)	1	Rp332.500	L:2000!630
15-2	09355-70129-00B	HOSE (PUMP TO SEPARATOR)	1	Rp1.068.000	L:2000!620
16-1	09355-70125-00B	HOSE (FILTER TO PUMP)	1	Rp332.500	L:2000!700
16-2	09355-70129-00B	HOSE (FILTER TO PUMP)	1	Rp1.068.000	L:2000!700
17	09401-11423-000 SUB: 17818-90J00-000	CLIP	6	Rp19.500
18	01550-06127-000	BOLT	1	Rp17.000
19	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
20	65793-99E00-000	HOLDER, FUEL HOSE	1	Rp28.000
21	09248-10008-000	BOLT (10X7.5)	1	Rp42.500
