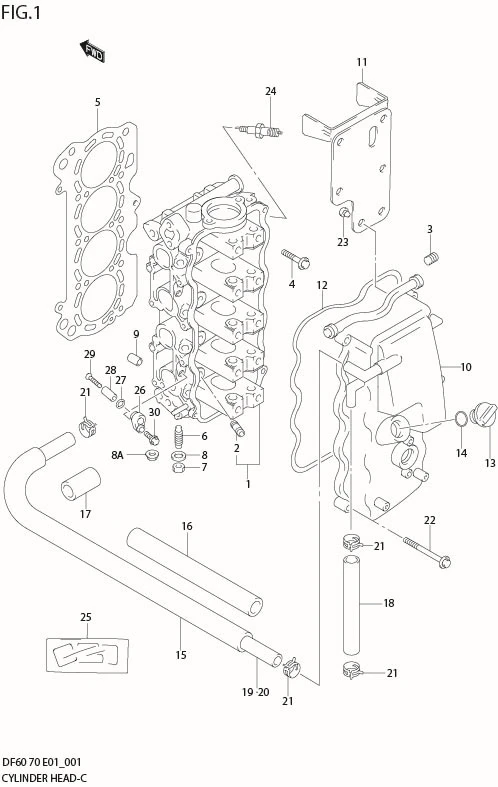

FIG 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11100-99E05-000	HEAD ASSY, CYLINDER	1	-	INC.NO.2,3 MODEL:04
1-1	11100-99E05-019	HEAD ASSY, CYLINDER (BLACK)	1	-	INC.NO.2 MODEL:98%03
1-4	11100-99E07-000	HEAD ASSY, CYLINDER	1	Rp21.525.000	MODEL:07%09
1-3	11100-99E07-000 SUB: 11100-99E06-000	HEAD ASSY, CYLINDER	1	Rp21.525.000	INC.NO.2,3 MODEL:04%06
2	11115-82000-001	?GUIDE, VALVE	8	Rp119.500	OPT
3	DISCONTINUE SUB: 11112-99E00-000	PLUG, OIL VENTURI	1	-
4	11119-82000-000	BOLT, CYLINDER HEAD	10	Rp71.500
5	11141-99E01-000	GASKET, CYLINDER HEAD	1	Rp786.500
6	09108-08137-000	STUD BOLT	2	Rp43.500
7	09140-08023-XC0 SUB: 09140-08023-000	NUT	2	Rp22.500	?09140-08016
8	09160-08082-000	WASHER (8.5X16X1.2)	2	Rp12.000
8A	08316-10087-000	NUT	2	Rp17.000	DF60:371310%
9	04211M13189-000 SUB: 04211-13189-000	PIN, DOWEL	2	Rp9.000
10-1	11100-99800-019	COVER SET, CYL HEAD (BLACK)	1	Rp1.851.000
10-2	11100-99800-000	COVER SET, CYL HEAD	1	Rp3.531.000	MODEL:04%09
11	11173-99E01-000	PLATE, BREATHER	1	Rp63.000
12	11189-99E00-000	GASKET, CYLINDER HEAD COVER	1	Rp201.500
13	11382-99E00-000	CAP, OIL FILLE4R	1	Rp79.000
14	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
15	18498-99E40-000	PROTECTOR, BREATHER HOSE	1	-	!18498-99E70
16-1	18498-99E70-000	PROTECTOR, BREATHER HOSE (430)	1	-	DF60:971754%999999
16-2	DISCONTINUE SUB: 18498-90J20-000	PROTECTOR, BREATHER HOSE (450)	1	-	L:590!450
17-1	18498-99E70-000	PROTECTOR, BREATHER HOSE (430)	1	-	L:430!140
17-2	DISCONTINUE SUB: 18498-90J20-000	PROTECTOR, BREATHER HOSE (450)	1	-	L:450!120
18	09355-13207-600	HOSE, BREATHER	1	Rp146.000	L:600!440
19	09355-13207-00B	HOSE, BREATHER	1	Rp385.500	L:2000!700
20	11174-99E01-000	HOSE, BREATHER	1	-	!11174-99800
21-1	DISCONTINUE SUB: 09401-20406-000	CLIP	4	-
21-2	09401-20409-000 SUB: 17829-90J00-000	CLIP	2	Rp27.000	DF60:971544%MODEL:09
22	01550-06357-000	BOLT	6	Rp18.500
23	02112-0508A-000	SCREW	6	Rp11.500
24	09482-00299-000	SPARK PLUG (NGK BPR6ES)	4	Rp52.000
25-2	DISCONTINUE SUB: 11400-99812-000	GASKET SET	1	-	OPT MODEL:02%09
25-1	DISCONTINUE SUB: 11400-99803-000	GASKET SET	1	-	OPT MODEL:98%01
26-1	11261-99E00-000	COVER, PROTECTION ANODE	3	Rp157.500	DF60:421157%
26-2	11261-99E00-000	COVER, PROTECTION ANODE	2	Rp157.500	MODEL:07%09
27-1	09280-10013-000	O RING, PROTECTION COVER	3	Rp43.500	DF60:421157%
27-2	09280-10013-000	O RING, PROTECTION COVER	2	Rp43.500	MODEL:07%09
28-1	55321-99E00-000	ANODE, PROTECTION	3	Rp68.500	DF60:421157%
28-2	55321-99E00-000	ANODE, PROTECTION	2	Rp68.500	MODEL:07%09
29-1	DISCONTINUE SUB: 09126-05010-000	SCREW, PROTECTION ANODE	3	-	DF60:421157%
29-2	DISCONTINUE SUB: 09126-05010-000	SCREW, PROTECTION ANODE	2	-	MODEL:07%09
30-1	01550-06207-000 SUB: 01550B06207N000	BOLT, PROTECTION COVER	3	Rp3.000	DF60:421157%
30-2	01550-06207-000 SUB: 01550B06207N000	BOLT, PROTECTION COVER	2	Rp3.000	MODEL:07%09
