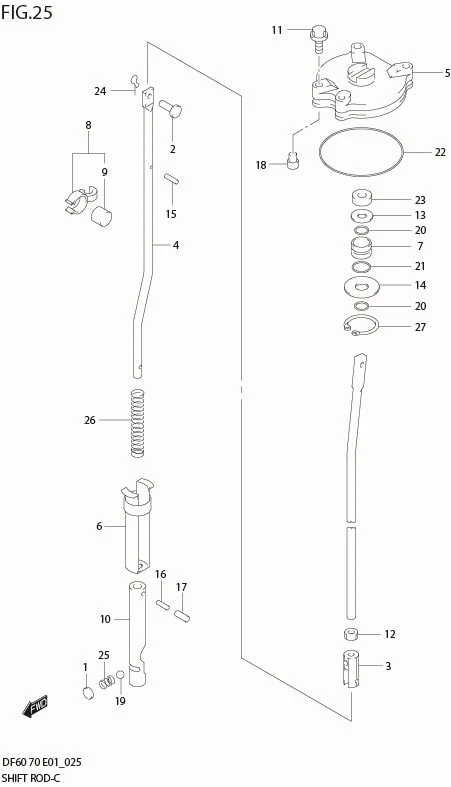

FIG 25 SHIFT ROD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21121-93300-000	PLATE, CLUTCH NOTCH	1	Rp13.000
2	23313-99E01-000	PIN, CONNECTOR	1	Rp46.500
3	23315-94510-000	CONNECTOR, CLUTCH ROD	1	Rp167.500
4-1	25111-99E01-000	ROD, SHIFT (L)	1	Rp163.500	?25111-99E00
4-2	25111-99E20-000	ROD, SHIFT (L)	1	Rp341.500	MODEL:01%09
4-3	25111-99E10-000	ROD, SHIFT (X)	1	Rp181.000
4-4	DISCONTINUE SUB: 25111-99E30-000	ROD, SHIFT (X)	1	-	MODEL:01%09
5	25141-99E03-000	HOUSING, SHIFT ROD GUIDE	1	Rp247.500
6	DISCONTINUE SUB: 25205-94501-000	COLLAR, SHIFT ROD SPRING	1	-
7	DISCONTINUE SUB: 25211-94501-000	GUIDE, SHIFT ROD	1	-
8	DISCONTINUE SUB: 25230-94300-000	MAGNET SET	1	-
9	25232-94300-000	?MAGNET	1	Rp21.000
10	25311-94510-000	CAM, CLUTCH	1	Rp372.500
11	09117-06031-000	BOLT (6X20)	3	Rp22.000
12	09140-08023-XC0 SUB: 09140-08023-000	NUT	1	Rp22.500	?09140-08003
13	09160-09015-000	WASHER (9X19X1.0)	1	Rp16.500
14	09160-09010-000	WASHER (9X30X1.6)	1	Rp11.500
15	09205-02004-000	PIN (2.5X12)	1	Rp10.500
16	09205-02006-000	PIN (2X12)	1	Rp11.000
17	09205-03021-000	PIN (3.5X12)	1	Rp11.500
18	09209-08019-000	PIN, DOWEL	1	Rp39.000	DF60:%971961
19	09260-10005-000	BALL	1	Rp15.500
20	09280-08008-000	O RING (D:3.5,ID:7.8)	1	Rp9.000
21	09280-15003-000	O RING (D:2.4,ID:14.8)	1	Rp10.500
22	09280-69001-000	O RING (D:3.1,ID:68.5)	1	Rp24.000
23	09284-08003-000	SEAL	1	Rp26.500
24	09204-01002-000	PIN, COTTER	1	Rp13.000
25	09440-07033-000	SPRING	1	Rp13.000
26	DISCONTINUE SUB: 09440-12025-000	SPRING	1	-
27	08331-41309-000	CIRCLIP	1	Rp8.500
