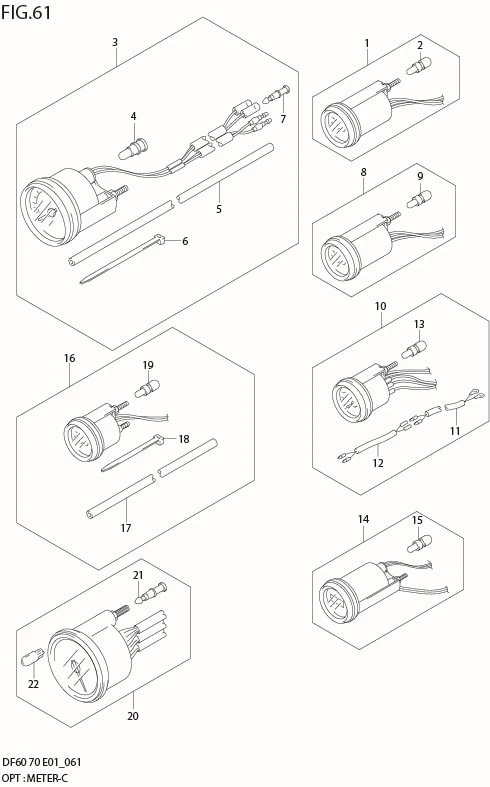

FIG 61 OPT:METER (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	34800-93J13-000 SUB: 34800-93J11-000	METER ASSY, TRIM	1	Rp1.156.000	WHITE
1-1	34800-93J02-000 SUB: 34800-93J00-000	METER ASSY, TRIM	1	Rp1.018.000	BLACK
2	DISCONTINUE SUB: 09471B12103N000	?BULB	1	-
3-1	DISCONTINUE SUB: 34100-93J00-000	SPEEDOMETER ASSY	1	-	MAX 130KM/H BLACK
3-2	DISCONTINUE SUB: 34100-93J11-000	SPEEDOMETER ASSY	1	-	MAX 130KM/H WHITE
3-3	34100-93J20-000	SPEEDOMETER ASSY	1	Rp1.301.500	MAX 80KM/H BLACK
3-4	34100-93J31-000	SPEEDOMETER ASSY	1	Rp1.301.500	MAX 80KM/H WHITE
3-5	DISCONTINUE SUB: 34100-93J40-000	SPEEDOMETER ASSY	1	-	MAX 45KNOTS BLACK
3-6	34100-93J53-000 SUB: 34100-93J51-000	SPEEDOMETER ASSY	1	Rp2.246.000	MAX 45KNOTS WHITE
4	09471-12028-000 SUB: 09471B12028N000	?BULB	1	Rp8.000
5	34191-92E00-000	?TUBE	1	Rp244.500
6	09407-14407-000	?BAND	2	Rp18.500
7	36615-96300-000	?TERMINAL, RESIN	2	Rp11.000
8-1	DISCONTINUE SUB: 34600-93J00-000	METER ASSY, VOLTAGE	1	-	BLACK
8-2	34600-93J13-000 SUB: 34600-93J11-000	METER ASSY, VOLTAGE	1	Rp1.162.000	WHITE
9	DISCONTINUE SUB: 09471B12103N000	?BULB	1	-
10-2	34300-93J11-000	GAUGE ASSY, FUEL	1	Rp1.267.000	WHITE
10-1	DISCONTINUE SUB: 34300-93J00-000	GAUGE ASSY, FUEL	1	-	BLACK
11	34310-92E00-000	?LEAD, FUEL GAUGE	1	Rp702.000
12	34360-92E00-000	?ADAPTER, FUEL GAUGE	1	Rp288.000
13	DISCONTINUE SUB: 09471B12103N000	?BULB	1	-
14-1	34500-93J02-000 SUB: 34500-93J00-000	METER ASSY, HOUR	1	Rp1.918.500	BLACK
14-2	34500-93J13-000 SUB: 34500-93J11-000	METER ASSY, HOUR	1	Rp2.048.500	WHITE
15	DISCONTINUE SUB: 09471B12103N000	?BULB	1	-
16-2	DISCONTINUE SUB: 34650-93J31-000	GAUGE ASSY, WATER PRESSURE	1	-	15PSI WHITE
16-1	DISCONTINUE SUB: 34650-93J20-000	GAUGE ASSY, WATER PRESSURE	1	-	15PSI BLACK
17	34191-92E00-000	?TUBE	1	Rp244.500
18	09407-14407-000	?BAND	2	Rp18.500
19	DISCONTINUE SUB: 09471B12103N000	?BULB	1	-
20-1	34200-93J02-000 SUB: 34200-93J00-000	TACHOMETER ASSY, WITH MONITOR	1	Rp2.161.000	BLACK
20-2	34200-93J14-000 SUB: 34200-93J11-000	TACHOMETER ASSY, WITH MONITOR	1	Rp2.439.500	WHITE
21	36615-96300-000	?TERMINAL, RESIN	4	Rp11.000
22-1	09471-12077-000 SUB: 09471B12077N000	?BULB	1	Rp6.000
22-2	09471-12028-000 SUB: 09471B12028N000	?BULB	1	Rp8.000	FOR 34200-93J20
