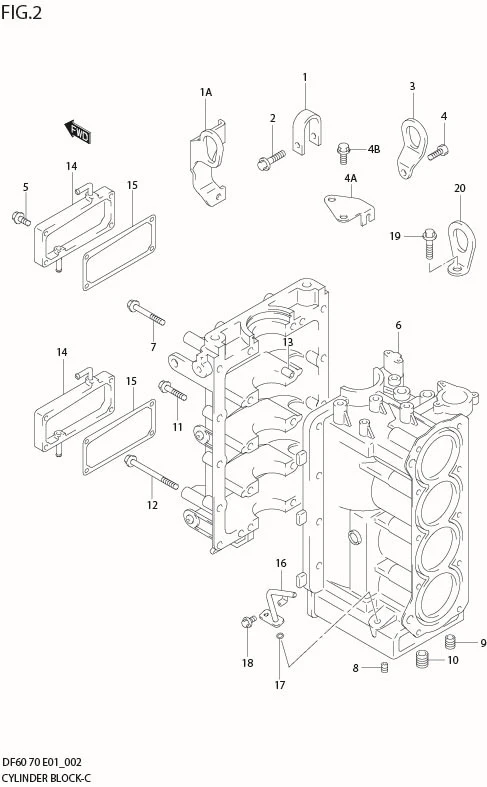

FIG 2 CYLINDER BLOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1A	11291-99E10-000	HOOK, ENGINE PORT	1	Rp68.500	MODEL:02%09
1	DISCONTINUE SUB: 11291-94402-000	HOOK, ENGINE PORT	1	-	MODEL:98%01
2	01550-08357-000	BOLT	1	Rp24.000
3	11291-94600-000	HOOK, ENGINE STBD	1	Rp35.000
4	01550-08257-000	BOLT	1	Rp18.500
4A	11293-99E10-000	HOLDER, ENGINE HOOK	1	Rp17.000	MODEL:02%09
4B	01550-06127-000	BOLT	1	Rp17.000	MODEL:02%09
5	01550-06257-000 SUB: 01550B06257N000	BOLT	8	Rp3.500	DF60:%971960
6-1	11300-99E06-000 SUB: 11300-99E05-019	BLOCK, CYLINDER (BLACK)	1	Rp15.649.500	?11300-99E04-019
6-2	11300-99E06-000	BLOCK, CYLINDER (BLACK)	1	Rp15.649.500	MODEL:04%09
7-1	11251-85FA1-000	?BOLT	10	Rp57.500
7-2	11117-99E00-000	?BOLT	10	Rp34.500	MODEL:04%09
8	09246M05003-000 SUB: 09246-05006-000	?PLUG	1	Rp7.000
9	09246-08002-000	?PLUG	2	Rp21.500	%MODEL:98
10	09246-16021-000 SUB: 09246-16010-000	?PLUG	1	Rp48.000	%MODEL:98%00
11-1	01550-08407-000	?BOLT	7	Rp24.000
11-2	01550-08407-000 SUB: 09116-08124-000	?BOLT (W/WASHER)	7	Rp24.000	MODEL:04%09
12	01550-08607-000	?BOLT	3	Rp38.000
13-1	09206-13019-000	?PIN, KNOCK	5	Rp15.000
13-2	09206-13019-000	?PIN, KNOCK	3	Rp15.000	MODEL:00%09
14	11330-99E00-019	COVER, WATER JACKET (BLACK)	2	Rp521.000	DF60:%971960
15	DISCONTINUE SUB: 11332-99E00-000	GASKET, WATER JACKET COVER	2	-	DF60:%971960
16-1	16930-99E00-000	GUIDE, OIL LEVEL GAUGE	1	-
16-2	16930-99E11-000	GUIDE, OIL LEVEL GAUGE	1	Rp192.500	MODEL:02%09
17	09280-09008-000	O RING (D:2.1,ID:8.8)	1	Rp20.000
18	01550-06127-000	BOLT	1	Rp17.000
19	01550-08207-000	BOLT	1	Rp19.000	OPT,MODEL:98
20	11291-91B50-000	HOOK, ENGINE	1	Rp69.500	OPT,MODEL:98
