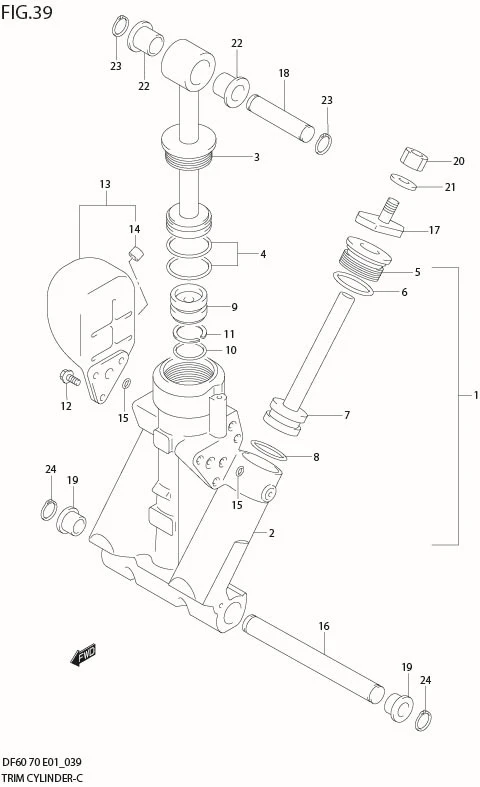

FIG 39 TRIM CYLINDER (MODEL:98%00)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 48503-94900-0EP	MANIFOLD SUB ASSY	1	-
2	48641-94900-0EP	?MANIFOLD, PTT (BLACK)	1	Rp5.979.500
3	48401-94900-000	?PISTON ASSY	1	Rp1.751.000
4	48627-95E00-000	?O RING SET	1	Rp65.500
5	48630-94900-000	?HEAD, TRIM CYLINDER	2	Rp671.500
6	48633-94900-000	?O RING SET, HEAD	2	Rp58.500
7	48601-94900-000	?PISTON/RAM ASSY	2	Rp2.007.000
8	48627-95E00-000	?O RING SET	1	Rp65.500
9	48650-94900-000	?PISTON, FREE	1	Rp607.500
10	48405-87D00-000	??O RING SET	1	Rp65.500
11	48615-97E00-000	??RING, BACKUP	1	Rp81.000
12	48861-95E00-000	BOLT, RESERVOIR	3	Rp56.000
13	DISCONTINUE SUB: 48570-95E00-000	RESERVOIR	1	-
14	48572-95E00-000	?CAP	1	Rp196.000
15	48588-94900-000	O RING	1	Rp53.000
16	48121-95E00-000	SHAFT, TILT CYLINDER LOWER	1	Rp512.500
17	DISCONTINUE SUB: 48311-94501-000	PAD, TRIM CYLINDER RAM	1	-
18	48321-87D03-000 SUB: 48321-87D02-000	SHAFT, TILT CYLINDER UPPER	1	Rp180.000
19	48326-95E00-000	BUSH, TILT CYLINDER	2	Rp53.500
20	09140-08023-XC0 SUB: 09140-08023-000	NUT	2	Rp22.500	?09140-08016
21	DISCONTINUE SUB: 09162-08007-000	WASHER, LOCK (8.2X15.4X2.0)	2	-
22	09306-17001-000	BUSH	2	Rp26.500
23	09380-17009-000	CIRCLIP	2	Rp18.000
24	09380-22015-000	CIRCLIP	2	Rp24.000
