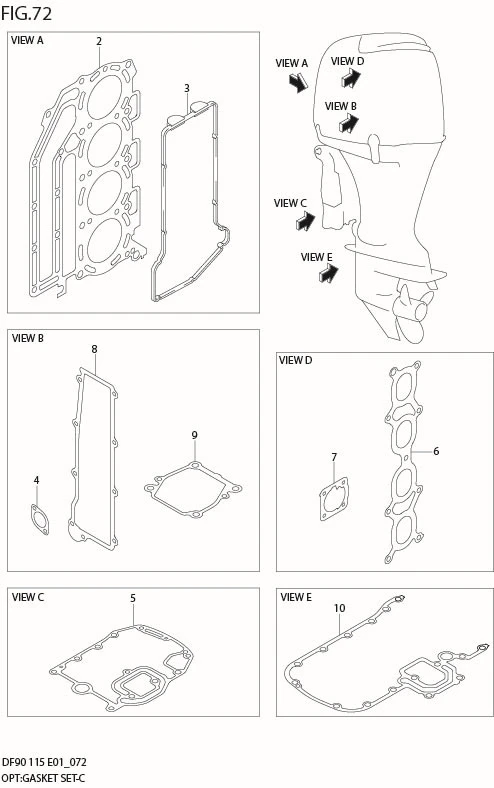

FIG 72 OPT:GASKET SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11410-90820-000	GASKET SET	1	-	DF90:680686%
1-1	DISCONTINUE SUB: 11400-90804-000	GASKET SET	1	-	NOT SHOWN
2	11141-90J01-000	?GASKET, CYL HEAD	1	Rp1.156.000
3	11189-90J00-000	?GASKET, CYL HEAD COVER	1	Rp247.500
4	11265-87E10-000	?GASKET, PROTECTION COVER	2	Rp34.000
5	11489-90J00-000	?GASKET, OIL PAN	1	Rp323.500
6	13119-90J00-000	?GASKET, INTAKE MANIFOLD	1	Rp54.500
7	13421-90J02-000 SUB: 13421-90J00-000	?GASKET, THROTTLE BODY	1	Rp32.500
8	14151-90J00-000	?GASKET, RECTIFIER	1	Rp54.500
9	17472-87E10-000	?GASKET, PUMP CASE PANEL	1	Rp53.000
10-1	51211-90J10-000	?GASKET, ENGINE HOLDER	1	Rp832.500
10-2	51211-90J22-000 SUB: 51211-90J21-000	?GASKET, ENGINE HOLDER	1	Rp657.000	DF90:680686%
11-14	99011-90J08-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE MODEL:09
11-15	99011-90J12-054	MANUAL, OWNER'S	1	Rp826.000	11 LANGUAGE MODEL:10
11-16	99011-90J11-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE
11-17	99011-90J02-04B	MANUAL, OWNER'S	1	Rp150.500	E40 MODEL:03
11-18	99011-90J03-04B	MANUAL, OWNER'S	1	Rp150.500	E40 MODEL:04
11-19	99011-90J04-04B	MANUAL, OWNER'S	1	Rp150.500	E40 MODEL:05
11-20	99011-90J05-04B	MANUAL, OWNER'S	1	Rp122.000	E40 MODEL:06
11-21	99011-90J06-04B	MANUAL, OWNER'S	1	Rp150.500	E40 MODEL:07
11-22	99011-90J07-059	MANUAL, OWNER'S	1	Rp150.500	E40 MODEL:08
11-23	99011-90J08-059	MANUAL, OWNER'S	1	Rp150.500	E40 MODEL:09
11-24	99011-90J09-059	MANUAL, OWNER'S	1	Rp150.500	E40 MODEL:10
11-25	99011-90J11-059	MANUAL, OWNER'S	1	Rp150.500	E40
11-13	99011-90J07-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE MODEL:08
11-12	99011-90J06-054	MANUAL, OWNER'S	1	Rp150.500	11 LANGUAGE MODEL:07
11-11	99011-90J05-01T	MANUAL, OWNER'S	1	Rp150.500	3 LANGUAGE MODEL:06
11-10	99011-90J04-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:05
11-9	99011-90J03-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:04
11-8	99011-90J02-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:03
11-7	99011-90J01-01H	MANUAL, OWNER'S	1	Rp150.500	DUTCH MODEL:02
11-6	99011-90J05-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:06
11-5	99011-90J04-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:05
11-4	99011-90J03-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:04
11-3	99011-90J02-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:03
11-2	99011-90J01-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:02
11-1	99011-90J00-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:01
