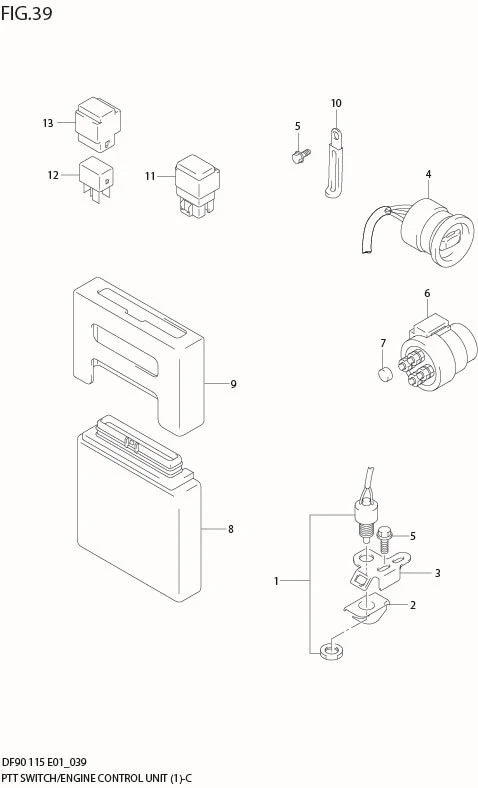

FIG 39 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:01%03)

FIG 39 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:01%03)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37721-99E12-000 SUB: 37721-99E10-000	SWITCH, NEUTRAL	1	Rp472.000	MODEL:03
1-1	DISCONTINUE SUB: 37721-99E00-000	SWITCH, NEUTRAL	1	-
2	DISCONTINUE SUB: 37725-95600-000	ACTUATOR, NEUTRAL SW	1	-
3	37726-90J00-000	BRACKET, NEUTRAL SW	1	Rp25.500
4	37850-99E05-000 SUB: 37850-99E00-000	SWITCH, PTT	1	Rp736.000
5	01550-06167-000	BOLT	2	Rp16.500
6	38410-94552-000	RELAY, PTT	2	Rp1.456.500
7	09251-09002-000	CAP	1	Rp22.000
8-2	33920-90J20-000	UNIT, ENGINE CONTROL	1	-	DF90 MODEL:03
8-5	33920-90JB4-000 SUB: 33920-90J50-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115WT
8-4	33920-90JA4-000 SUB: 33920-90J30-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115 MODEL:03
8-3	33920-90JB4-000 SUB: 33920-90J10-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115
8-1	33920-90J00-000	UNIT, ENGINE CONTROL	1	-	DF90
9	33925-87J00-000	CUSHION, ENGINE CONTROL UNIT	1	Rp267.500
10	DISCONTINUE SUB: 09404-06432L000	CLAMP	2	-
11	DISCONTINUE SUB: 38910-92E00-000	RELAY, ENGINE CONTROL UNIT	1	-
12	38860-76F01-000 SUB: 38860B76F01N000	RELAY, ENGINE CONTROL UNIT	1	Rp47.000	MODEL:03
13	38915-90J00-000	HOLDER, RELAY	1	Rp33.000	MODEL:03

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
