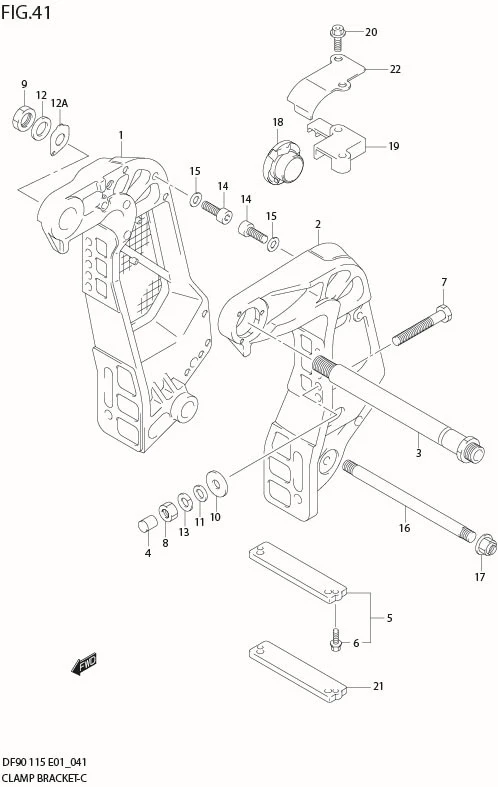

FIG 41 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	41111-90J13-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp4.462.500	?41111-90J02-0EP
2	41121-90J13-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp4.965.500
3-1	DISCONTINUE SUB: 41130-95541-000	SHAFT, CLAMP BRKT	1	-
3-2	DISCONTINUE SUB: 41130-95542-000	SHAFT, CLAMP BRKT	1	-	MODEL:04,05
3-3	DISCONTINUE SUB: 41130-95543-000	SHAFT, CLAMP BRKT	1	-	DF90:511126%
3-4	41130-92J03-000 SUB: 41130-92J01-000	SHAFT, CLAMP BRKT	1	Rp1.870.500	DF90:680686%
4	DISCONTINUE SUB: 41153-94500-000	CAP, TRANSOM BOLT	4	-
5	55320-94900-000	ZINC, PROTECTION	1	Rp421.000
6	09116-06121-000	?BOLT (6X25)	2	Rp18.000
7-1	09100-12045-000	BOLT (12X115,PITCH:1.75)	4	-	!09100-12091
7-2	09100-12091-000	BOLT (12X115,PITCH:1.25)	4	Rp161.000	DF90:510486%
7-3	DISCONTINUE SUB: 09100-12090-000	BOLT (12X150,PITCH:1.25)	4	-	DF115Z
7-4	DISCONTINUE SUB: 09100-12090-000	BOLT (12X150,PITCH:1.25)	1	-	OPT
7-5	09100-12091-000	BOLT (12X115,PITCH:1.25)	1	Rp161.000	OPT
8-1	DISCONTINUE SUB: 09140-12028-000	NUT (M12,PITCH:1.75)	4	-
8-2	09159-12014-000	NUT (M12,PITCH:1.25)	4	Rp37.000	DF90:510486%
9	09159-22006-000	NUT	1	Rp186.500
10	DISCONTINUE SUB: 09160-12044-000	WASHER (12.5X35X3.2)	4	-
11-1	09160-12066-000	WASHER (12.5X22X2.5)	4	Rp13.500
11-2	09160-12110-000	WASHER (12.5X22X3.0)	4	Rp55.000	DF90:510486%
12	DISCONTINUE SUB: 09160-22033-000	WASHER (22.5X38X1.0)	1	-
12A	41135-92J00-000	WASHER SHAFT	1	Rp69.500	DF90:680686%
13	DISCONTINUE SUB: 09162-12005-000	WASHER, LOCK (12.2X21.5X3.0)	4	-	DF90:%510485
14	DISCONTINUE SUB: 09106-10065-000	BOLT (10X20)	2	-
15	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2.0)	2	Rp12.000	?09160-10082
16	45421-90J00-000	PIN, TILT LOCK	1	Rp296.000	OPT
17	09159-14020-000	NUT	2	Rp31.000	OPT
18	48140-93J01-000 SUB: 48140-93J00-000	CAM ASSY, TILT LIMIT SW	1	Rp143.500	MODEL:04%
19	DISCONTINUE SUB: 48144-93J00-000	HOLDER, TILT LIMIT SW	1	-	MODEL:04%
20-1	09103-06093-000	BOLT (6X20)	2	Rp13.000	MODEL:04,05
20-2	09103-06278-000	BOLT (6X20)	2	Rp14.000	DF90:511854%
21	55321-94910-000	ANODE (MAGNESIUM)	1	Rp483.000	OPT
22	DISCONTINUE SUB: 48145-93J00-000	COVER, TILT LIMIT SWITCH	1	-	DF90:511854%
