DF90 115 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF90T FIG 10 FUEL VAPOR SEPARATOR (DF115WT/WZ FIG 11 FUEL INJECTOR FIG 12 FUEL INJECTOR (DF90T:151862%FIG 13 FUEL INJECTOR (DF115WT/WZ FIG 14 FUEL PUMP (DF90T FIG 15 FUEL PUMP (DF90T:680686%FIG 16 FUEL PUMP (DF115WT)FIG 17 FUEL PUMP (DF115WT:681518%FIG 18 WATER PUMP (DF90T FIG 19 WATER PUMP (DF115WT)FIG 20 WATER PUMP (*)FIG 21 THERMOSTAT FIG 22 THROTTLE BODY FIG 23 OIL PUMP FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (DF90T:372278%FIG 27 CLUTCH SHAFT (*)FIG 28 SHIFT ROD (DF90T FIG 29 SHIFT ROD (DF90T:680686%FIG 30 SHIFT ROD (DF115Z)FIG 31 TRANSMISSION (DF90T FIG 32 TRANSMISSION (DF115Z)FIG 33 STARTING MOTOR FIG 34 MAGNETO FIG 35 RECTIFIER FIG 36 IGNITION COIL FIG 37 SENSOR FIG 38 HARNESS FIG 39 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:01%03)FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 41 CLAMP BRACKET FIG 42 SWIVEL BRACKET FIG 43 TRIM CYLINDER FIG 44 PTT MOTOR FIG 45 ENGINE HOLDER FIG 46 ENGINE HOLDER (DF90:680686%FIG 47 DRIVE SHAFT HOUSING FIG 48 GEAR CASE (DF90T FIG 49 GEAR CASE (DF115Z)FIG 50 SIDE COVER FIG 51 ENGINE COVER (MODEL:01 FIG 52 ENGINE COVER (MODEL:03%09)FIG 52A ENGINE COVER (MODEL:10%)FIG 53 FUEL TANK (METAL)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:01%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER (MODEL:01%04)FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:TRIM SENDER FIG 63 OPT:HARNESS FIG 64 OPT:HARNESS (MODEL:08%)FIG 65 OPT:SWITCH (MODEL:01%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:01%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TILLER HANDLE (MODEL:01%03)FIG 71 OPT:TILLER HANDLE (MODEL:04%)FIG 72 OPT:GASKET SET

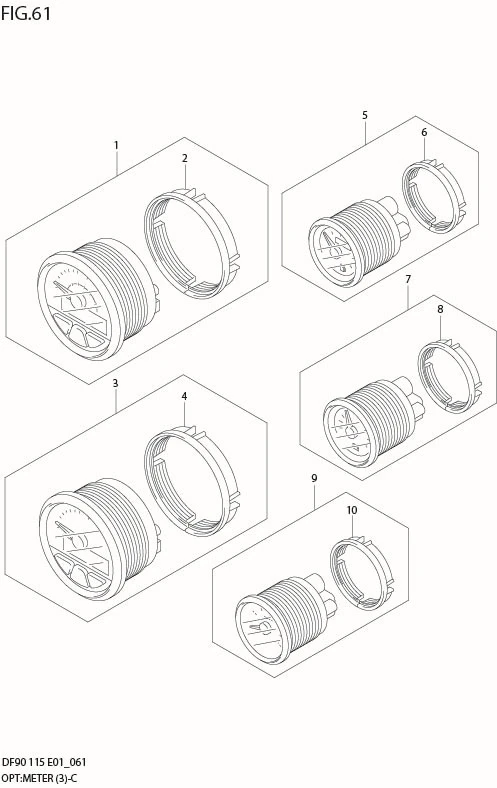

FIG 61 OPT:METER (MODEL:08%)

FIG 61 OPT:METER (MODEL:08%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 34100-98J11-000	SPEEDOMETER ASSY	1	-	MAX 130KM/H WHITE
1-3	DISCONTINUE SUB: 34100-98J21-000	SPEEDOMETER ASSY	1	-	MAX 80KM/H BLACK
1-4	DISCONTINUE SUB: 34100-98J31-000	SPEEDOMETER ASSY	1	-	MAX 80KM/H WHITE
1-5	DISCONTINUE SUB: 34100-98J41-000	SPEEDOMETER ASSY	1	-	MAX 60KNOTS WHITE
1-1	DISCONTINUE SUB: 34100-98J01-000	SPEEDOMETER ASSY	1	-	MAX 130KM/H BLACK
2	DISCONTINUE SUB: 34112-98J00-000	?NUT	1	-
3-1	DISCONTINUE SUB: 34200-98J03-000	TACHOMETER ASSY	1	-	BLACK
3-2	DISCONTINUE SUB: 34200-98J13-000	TACHOMETER ASSY	1	-	WHITE
4	DISCONTINUE SUB: 34112-98J00-000	?NUT	1	-
5-1	DISCONTINUE SUB: 34300-98J00-000	GAUGE ASSY, FUEL	1	-	BLACK
5-2	DISCONTINUE SUB: 34300-98J10-000	GAUGE ASSY, FUEL	1	-	WHITE
6	DISCONTINUE SUB: 34815-98J00-000	?NUT	1	-
7-1	DISCONTINUE SUB: 34600-98J00-000	METER ASSY, VOLTAGE	1	-	BLACK
7-2	DISCONTINUE SUB: 34600-98J10-000	METER ASSY, VOLTAGE	1	-	WHITE
8	DISCONTINUE SUB: 34815-98J00-000	?NUT	1	-
9-1	DISCONTINUE SUB: 34800-98J00-000	METER ASSY, TRIM	1	-	BLACK
9-2	DISCONTINUE SUB: 34800-98J10-000	METER ASSY, TRIM	1	-	WHITE
10	DISCONTINUE SUB: 34815-98J00-000	?NUT	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
