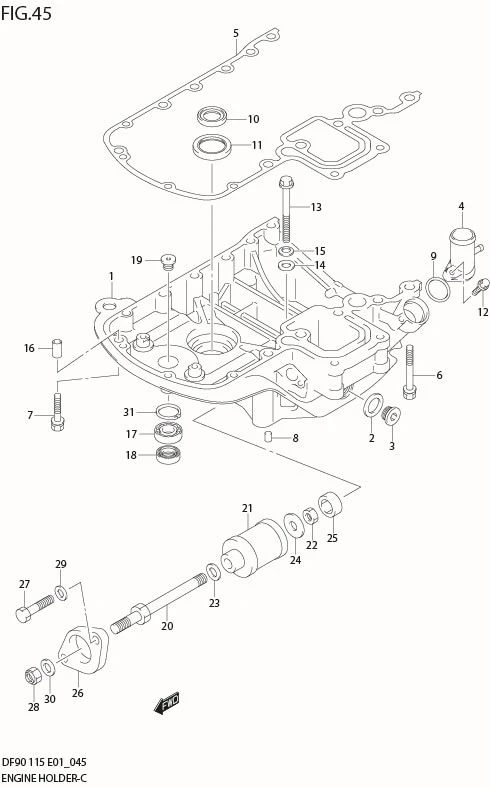

FIG 45 ENGINE HOLDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 51110-90820-0EP	HOLDER SET, ENGINE (BLACK)	1	-	DF90:372278%
1-1	51110-90810-0EP	HOLDER SET, ENGINE (BLACK)	1	Rp5.495.500	INC.NO.2,3,10,11
1-4	DISCONTINUE SUB: 51110-90822-0EP	HOLDER SET, ENGINE (BLACK)	1	-	DF90:511126%
1-3	DISCONTINUE SUB: 51110-90821-0EP	HOLDER SET, ENGINE (BLACK)	1	-	DF90:510374%
2	09160-18031-000	?GASKET (18.5X28X2.6)	1	Rp19.500
3-1	09248-18006-000	?PLUG	1	Rp35.000
3-2	09248-18010-000	?PLUG	1	Rp50.500	DF90:511126%
4	51115-90J00-000	UNION, WATER RETURN	1	Rp125.000
5	51211-90J10-000	GASKET, ENGINE HOLDER	1	Rp832.500	?51211-90J02
6	09116-08119-000	BOLT (8X70)	4	Rp21.500
7	09116-08128-000	BOLT (8X40)	4	Rp124.500	?09116-08098
8	09206-08001-000 SUB: 09206B08001N000	PIN	2	Rp5.500
9	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
10	09282-24003-000	SEAL, OIL	2	Rp53.500
11	09283-32044-000	SEAL, OIL	1	Rp121.500
12	01550-06257-000 SUB: 01550B06257N000	BOLT	1	Rp3.500
13-1	01550-08857-000	BOLT	1	Rp24.000
13-2	01550-08903-000	BOLT	1	-	DF90:251396%
14	09160-08039-000 SUB: 09160-08053-000	WASHER (8.5X19X2.3)	1	Rp14.000	DF90:251396%
15	09164-08020-000	WASHER, WAVE	1	Rp13.000	DF90:251396%
16	04211-11129-000 SUB: 04211B11129N000	PIN	3	Rp2.000
17	09262-17019-000	BEARING, CLUTCH SHAFT	1	Rp163.500	DF90:372278%
18	09289-18001-000	SEAL, CLUTCH SHAFT	1	Rp149.000	DF90:372278%
19	09248-12005-000	PLUG, CLUTCH SHAFT	1	Rp34.000	DF90:372278%
20-1	54112-90J01-000	BOLT, UPPER MOUNT	2	-	!54100-90803
20-2	54112-90J10-000	BOLT, UPPER MOUNT	2	Rp419.500	DF90:251596%
21-1	54100-90802-000	MOUNT SET, UPPER (STBD & PORT)	1	-
21-2	54100-90810-000	MOUNT SET, UPPER	2	Rp949.000	DF90:251396%
21-3	54130-90J31-000	MOUNT, UPPER	2	Rp886.500	MODEL:03%06
22	DISCONTINUE SUB: 09140-12029-000	NUT	2	-
23	54113-90J00-000	WASHER (12.5X24X2.5)	2	Rp74.000	?09160-12099
24-1	09160-12097-000	WASHER (12X32X3.0)	2	Rp16.500
24-2	09160-12110-000	WASHER (12.5X22X3.0)	2	Rp55.000	MODEL:03%06
25	54125-90J00-000	MOUNT, UPPER THRUST REVERSE	2	Rp31.000
26	54148-90J11-0EP SUB: 54148-90J01-0EP	COVER, UPPER MOUNT (BLACK)	2	Rp430.000
27-1	DISCONTINUE SUB: 09100-10157-000	BOLT (10X45)	4	-
27-2	09116-10176-000 SUB: 09116-10139-000	BOLT (W/WASHER)	4	Rp100.000	MODEL:06
28	09159-12014-000	NUT	2	Rp37.000
29	09160-10082-000	WASHER (10.5X19X2.0)	4	Rp12.000	MODEL:01%05
30	09164-13007-000	WASHER	2	-
31	08331-41359-000 SUB: 08331-41356-000	CIRCLIP	1	Rp18.500	DF90:510374%
