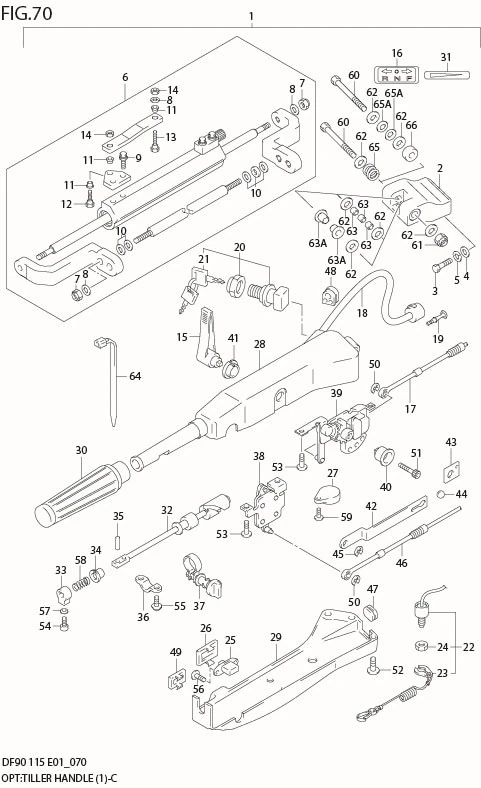

FIG 70 OPT:TILLER HANDLE (MODEL:01%03)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	63002-90J01-0EP	KIT, TILLER HANDLE (BLACK)	1	-	!63002-90J02-0EP
2-1	43761-90J00-0EP	?BRACKET, TILLER HANDLE	1	Rp4.020.000	FOR 63002-90J00-0EP
2-2	43761-90J03-0EP SUB: 43761-90J01-0EP	?BRACKET, TILLER HANDLE	1	Rp4.764.500	FOR 63002-90J01-0EP
3	43769-90J00-000	?BOLT, TILLER HANDLE	2	Rp104.500
4	09160-12066-000	?WASHER	2	Rp13.500
5	DISCONTINUE SUB: 09162-12005-000	?WASHER, LOCK	2	-
6	43770-90J00-000	?DAMPER ASSY, STEERING	1	Rp17.540.000
7	43778-90J00-000	??NUT, ROD	4	Rp100.000
8	43779-90J00-000	??WASHER, ROD	5	Rp35.500
9	67725-90J00-000	??BOLT, DRAG LINK PLATE	2	Rp29.000
10	43781-90J00-000	??SPACER/WASHER SET	1	Rp495.000
11	67734-90J00-000	??BUSH, DRAG LINK	3	Rp57.000
12	67725-90J10-000	??BOLT, DRAG LINK	1	Rp600.500
13	67725-90J20-000	??BOLT, DRAG LINK	1	Rp654.500
14	67726-90J00-000	??NUT, DRAG LINK	2	Rp45.500
15	21111-87J00-0EP	?LEVER, SHIFT (BLACK)	1	-
16	21131-96010-000	?MARK, SHIFT	1	Rp12.000
17	23230-90J00-000	?CABLE, SHIFT	1	Rp1.007.000
18	36620-90J00-000	?WIRE ASSY, HANDLE	1	Rp438.500
19	36615-96300-000	??TERMINAL	2	Rp11.000
20	37110-87J01-000	?SWITCH ASSY, IGNITION	1	-	!37110-87J20
21-1	37141-92E00-000	??KEY (11)	1	Rp147.000
21-10	37141-92E90-000	??KEY (20)	1	Rp147.000
21-9	37141-92E80-000	??KEY (19)	1	Rp147.000
21-8	37141-92E70-000	??KEY (18)	1	Rp147.000
21-7	37141-92E60-000	??KEY (17)	1	Rp147.000
21-6	37141-92E50-000	??KEY (16)	1	Rp77.500
21-5	37141-92E40-000	??KEY (15)	1	Rp147.000
21-4	37141-92E30-000	??KEY (14)	1	Rp147.000
21-3	37141-92E20-000	??KEY (13)	1	Rp147.000
21-2	37141-92E10-000	??KEY (12)	1	Rp147.000
22	37820-87J04-000 SUB: 37820-87J00-000	?SWITCH ASSY, EMERGENCY	1	Rp567.000
23	37823-92E02-000 SUB: 37823-92E00-000	??PLATE	1	Rp221.500
24	37826-92E00-000	??NUT	1	Rp65.500
25	DISCONTINUE SUB: 37860-94610-000	?SWITCH ASSY, TRIM	1	-
26	DISCONTINUE SUB: 37869-95590-000	?CAP	1	-
27	DISCONTINUE SUB: 38500-92X50-000	?BUZZER	1	-
28	63111-87J03-0EP	?HOUSING, TILLER HANDLE	1	-
29	63121-87J01-000	?COVER, UNDER	1	-
30	63210-93E30-000	?GRIP, HANDLE	1	Rp293.000
31	63215-93110-000	?MARK, HANDLE GRIP	1	Rp24.500
32	63221-87J00-000	?SHAFT, THROTTLE	1	Rp545.000
33	63223-92D00-000	?STOPPER, HANDLE ROD	1	Rp37.500
34	63225-93200-000	?BUSH, HANDLE ROD	1	Rp37.000
35	63227-93200-000	?PIN, HANDLE ROD	1	Rp21.000
36	63235-87J00-000	?PLATE, THROTTLE SHAFT	1	Rp28.500
37	63240-87J00-000	?ADJUSTER, THROTTLE	1	Rp111.000
38	63250-87J01-000	?ARM ASSY, THROTTLE	1	Rp1.628.500
39	63260-87J02-000	?GEAR ASSY, SHIFT	1	Rp1.863.500
40	63261-87J00-000	?BUSH, SHIFT GEAR	1	Rp97.000
41	63262-87J00-000	?BUSH, SHIFT LEVER	1	Rp31.500
42	63271-87J00-000	?PLATE, LOCK	1	Rp136.000
43	63272-87J00-000	?PLATE, BALL GUIDE	1	Rp85.000
44	63273-87J00-000	?BALL	1	Rp44.000
45	63274-87J00-000	?E RING	1	Rp20.000
46	63610-90J00-000	?CABLE, THROTTLE	1	Rp393.500
47	63625-99E00-000	?GROMMET, THROTTLE CABLE	1	Rp45.000
48	63626-99E01-000	?GROMMET, WIRE HARNESS	1	Rp61.000
49	67263-99E00-000	?COVER, TRIM SWITCH	1	Rp54.500
50	67292-87J00-000	?E RING	2	Rp20.500
51	09106-08099-000	?BOLT (8X50)	1	Rp25.500
52	DISCONTINUE SUB: 09125-05047-000	?SCREW (5X14)	6	-
53	09125-06069-000	?SCREW (6X12)	4	Rp18.000
54	09126-06015-000	?SCREW (6X23)	1	Rp19.000
55	09136-05008-000	?SCREW (5X12)	2	Rp23.500
56	DISCONTINUE SUB: 09139-02003-000	?SCREW (2X6)	2	-
57	09163-06001-000	?WASHER, LOCK (6.4X12X0.5)	1	Rp11.000
58	09440-12027-000	?SPRING	1	Rp13.000
59	02142-05207-000	?SCREW	1	Rp9.000
60	09100-10264-000	?BOLT (10X80)	1	Rp92.000
61	09159-10050-000	?NUT	1	Rp23.500
62-1	09160-10097-000	?WASHER (10.5X22X2.5)	4	Rp21.500	FOR 63002-90J00-0EP
62-2	09160-10114-000	?WASHER (10.5X22X1.5)	4	Rp20.000	FOR 63002-90J01-0EP
63	DISCONTINUE SUB: 09306-10009-000	?BUSH	3	-	FOR 63002-90J00-0EP
63A	09306-10020-000	?BUSH	2	Rp23.000	FOR 63002-90J01-0EP
64	36990-25G00-000 SUB: 09407-14403L000	?CLAMP	1	Rp13.000
65	DISCONTINUE SUB: 09440-22008-000	?SPRING	1	-
65A	09164-10013-000	?WASHER, WAVE	2	Rp20.000	FOR 63002-90J01-0EP
66	43768-90J00-000	?SPACER	1	Rp212.000	FOR 63002-90J01-0EP
