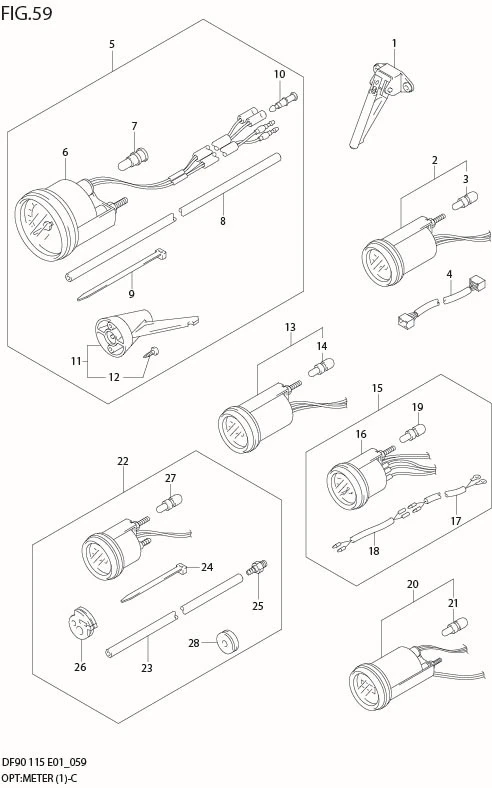

FIG 59 OPT:METER (MODEL:01%04)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 34190-87D00-000	SENDER ASSY, SPEEDOMETER	1	-
2	DISCONTINUE SUB: 34800-90J02-000	METER ASSY, TRIM	1	-	?34800-90J00
3	09471-12180-000	?BULB	1	Rp25.000
4	36682-90J00-000	WIRE, TRIM GAUGE EXT	1	Rp423.500
5-1	DISCONTINUE SUB: 34102-92E00-000	SPEEDOMETER SET	1	-	MAX 130KM/H
5-2	DISCONTINUE SUB: 34102-92E10-000	SPEEDOMETER SET	1	-	MAX 80KM/H
5-3	34102-92E20-000	SPEEDOMETER SET	1	Rp2.078.500	MAX 45KNOTS
6-1	DISCONTINUE SUB: 34100-92E00-000	?SPEEDOMETER	1	-	MAX 130KM/H
6-2	34100-92E10-000	?SPEEDOMETER	1	Rp1.466.500	MAX 80KM/H
6-3	34100-92E20-000	?SPEEDOMETER	1	Rp1.480.500	MAX 45KNOTS
7	09471-12179-000	?BULB	1	Rp25.500
8	34191-92E00-000	?TUBE	1	Rp244.500
9	09407-14407-000	?BAND	2	Rp18.500
10	36615-96300-000	?TERMINAL, RESIN	2	Rp11.000
11	DISCONTINUE SUB: 34190-95500-000	?SENDER ASSY, SPEEDOMETER	1	-
12	03112-06303-000	?SCREW	2	Rp11.500
13	DISCONTINUE SUB: 34600-92E00-000	METER, VOLTAGE	1	-
14	09471-12180-000	?BULB	1	Rp25.000
15	34300-92E01-000	GAUGE ASSY, FUEL	1	Rp1.355.500
16	34320-92E01-000	?GAUGE, FUEL	1	Rp1.062.000
17	34310-92E00-000	?LEAD, FUEL GAUGE	1	Rp702.000
18	34360-92E00-000	?ADAPTER, FUEL GAUGE	1	Rp288.000
19	09471-12180-000	?BULB	1	Rp25.000
20	DISCONTINUE SUB: 34500-92E00-000	METER ASSY, HOUR	1	-
21	09471-12180-000	?BULB	1	Rp25.000
22	DISCONTINUE SUB: 34650-92E00-000	GAUGE ASSY, WATER PRESSURE	1	-	30PSI
23	34191-92E00-000	?TUBE	1	Rp244.500
24	09407-14407-000	?BAND	1	Rp18.500
25	34652-92E00-000	?UNION	1	Rp126.000
26	36658-95600-000	?GROMMET	1	Rp52.500
27	09471-12180-000	?BULB	1	Rp25.000
28	09320-08028-000 SUB: 09320B08028N000	?GROMMET	1	Rp11.500
