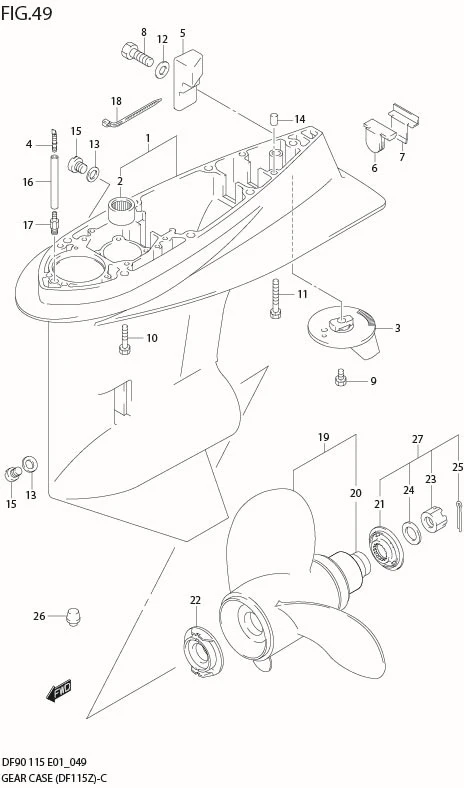

FIG 49 GEAR CASE (DF115Z)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 55110-92J00-0EP	CASE, GEAR (BLACK)	1	-
2	09263-28016-000	?BEARING, PINION	1	Rp695.000
3	55125-92J00-000	TAB, TRIM	1	Rp1.497.000
4	DISCONTINUE SUB: 55127-87D00-000	UNION, SPEEDOMETER HOSE	1	-
5	55321-90J01-000	ANODE, GEAR CASE	1	Rp115.000
6	55332-87D12-000 SUB: 55332-87D11-000	RUBBER, EXHAUST SEAL	1	Rp92.000
7	55333-87D10-000	PLATE, EXHAUST SEAL	1	Rp119.500
8	09100-06131-000	BOLT (6X12)	1	Rp13.000
9	09116-08137-000	BOLT (8X22)	1	Rp49.000
10	09116-10150-000	BOLT (10X55)	6	Rp128.000
11	DISCONTINUE SUB: 09117-10039-000	BOLT (10X80)	1	-
12	09160-06085-000	WASHER (6.5X15X1.0)	1	Rp9.500
13	09168-10022-000	GASKET (10X17X1.5)	2	Rp10.500
14	09202-08006-000	PIN	2	Rp27.000
15	09248-10008-000	PLUG, DRAIN	2	Rp42.500
16	DISCONTINUE SUB: 09355-40805-00B	HOSE	1	-	L:2000!1100
17	09362-09008-000	NIPPLE	1	Rp26.500
18	09407-14407-000	CLAMP	3	Rp18.500
19-1	DISCONTINUE SUB: 58200-92J00-000	PROPELLER (3X14.25X18)	1	-	OPT SUS
19-2	DISCONTINUE SUB: 58200-92J10-000	PROPELLER (3X14.25X20)	1	-	OPT SUS
19-3	DISCONTINUE SUB: 58200-92J20-000	PROPELLER (3X14.25X22)	1	-	OPT SUS
19-4	DISCONTINUE SUB: 58200-92J30-000	PROPELLER (3X14.25X24)	1	-	OPT SUS
20	58120-90J00-000	?BUSH	1	Rp560.500
21	DISCONTINUE SUB: 57633-90J02-000	SPACER, PROPELLER	1	-
22	57635-92J01-000	STOPPER, PROPELLER BUSH	1	Rp686.500	?57635-92J00
23	09141-18005-000	NUT	1	Rp71.000
24	09160-18028-000	WASHER (18.5X31X1.0)	1	Rp25.500
25	09204-03003-000	COTTER PIN (L:25)	1	Rp17.500
26	55116-87E00-000	PLUG	1	Rp629.500	OPT
27	57630-90J00-000	KIT, PROPELLER NUT	1	Rp566.000	OPT
28	25700-90J01-000	SEALING KIT, GEAR CASE	1	Rp473.000	OPT NOT SHOWN
