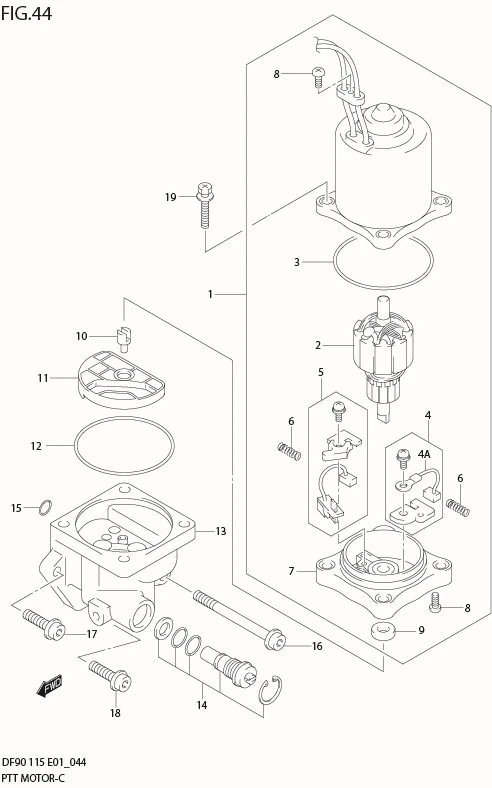

FIG 44 PTT MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	38100-92J03-000 SUB: 38100-92J02-000	MOTOR ASSY, PTT	1	Rp4.983.000	DF90:371969%
1-3	38100-92J13-000 SUB: 38100-92J10-000	MOTOR ASSY, PTT	1	Rp8.597.000	MODEL:04%
1-1	38100-92J01-000	MOTOR ASSY, PTT	1	-
2	31311-94900-000	?ARMATURE	1	Rp4.535.500
3	31123-94910-000 SUB: 31123-94900-000	?O RING	1	Rp111.500
4	31133-90J20-000 SUB: 31133-90J00-000	?BRUSH SET	1	Rp123.000
4A	31133-94910-000 SUB: 31133-94900-000	??BRUSH	1	Rp132.000
5	31136-90J30-000 SUB: 31136-90J10-000	?BREAKER ASSY	1	Rp629.500
6	31135-94900-000	?SPRING	2	Rp43.000
7	31173-94920-000 SUB: 31173-94900-000	?HOLDER, BRUSH	1	Rp3.282.500
8	31111-94900-000	?SCREW	3	Rp36.000
9	33799-97E00-000	?SEAL, OIL	1	Rp207.000
10	48583-95E00-000	JOINT, DRIVE	1	Rp95.500
11	48582-95E01-000	FILTER	1	Rp304.000
12	48585-95E00-000	O RING	1	Rp34.000
13	48502-90J11-000	PUMP ASSY	1	Rp5.695.500	?48502-90J00
14	48864-93J01-000 SUB: 48864-93J00-000	VALVE, MANUAL	1	Rp1.094.000	?48864-90J00
15	48588-90J00-000	O RING SET	1	Rp120.000
16	48862-92J20-000 SUB: 48862-92J00-000	BOLT	1	Rp111.500
17	DISCONTINUE SUB: 48862-92J10-000	BOLT	1	-
18	48862-90J20-000	BOLT	1	Rp78.000
19	31281-92J10-000 SUB: 31281-92J00-000	BOLT	4	Rp86.500
