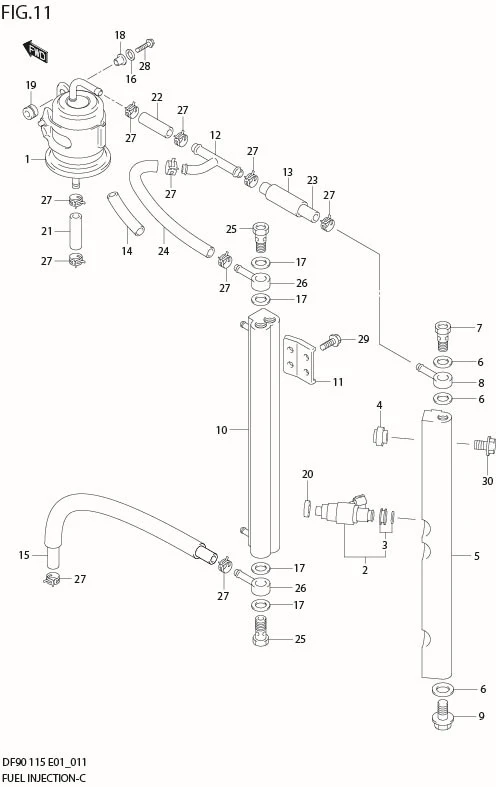

FIG 11 FUEL INJECTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15440-90J00-000	FILTER, FUEL	1	Rp769.000
2	15710-65D00-000	INJECTOR, FUEL	4	Rp3.427.000
3	15716-65DT0-000	?GROMMET SET	4	Rp157.000
4	15735-58B00-000	INSULATOR, DELIVERY PIPE	2	Rp45.500
5	15750-90J00-000	PIPE, DELIVERY	1	-	!15751-90J00
6	09168-12013-000	?GASKET, UNION	3	Rp22.500
7	09360-12008-000	?BOLT, UNION	1	Rp70.500
8	09363-08004-000	?UNION	1	Rp135.500
9	01550-12167-000	?BOLT, DELIVERY PIPE	1	Rp24.000
10	15770-90J01-000	COOLER, FUEL	1	-
11	15775-90J00-000	BRACKET, FUEL COOLER	2	Rp29.500
12	15830-99E00-000	UNION, 3 WAY FUEL HOSE	1	Rp129.500
13	18498-99E20-000	PROTECTOR, FUEL HOSE	1	Rp64.000	L:450!40
14	18498-99E20-000	PROTECTOR, FUEL HOSE	1	Rp64.000	L:450!70
15	15680-90J01-000 SUB: 15680-90J00-000	HOSE (COLLAR TO SEPARATOR)	1	Rp316.500	?15681-90J00
16	09160-06006-000 SUB: 09160-06084-000	WASHER (6.5X18X1.6)	2	Rp11.000
17	09168-12013-000	GASKET	4	Rp22.500
18	09169-06062-000	WASHER	2	Rp16.500
19	09320-08501-000	CUSHION	2	Rp21.500
20	09320-09022-000 SUB: 09320-08062-000	CUSHION	4	Rp8.500
21	09356-75137-600	HOSE (SEPARATOR TO FILTER)	1	Rp1.190.000	L:600!50
22	09356-75137-600	HOSE (FILTER TO 3 WAY)	1	Rp1.190.000	L:600!50
23	09356-75137-600	HOSE (3 WAY TO DLVY PIPE)	1	Rp1.190.000	L:600!110
24	09356-75137-600	HOSE (3 WAY TO COOLER)	1	Rp1.190.000	L:600!130
25	09360-12008-000	UNION	2	Rp70.500
26	09363-08004-000	UNION, FUEL COOLER	2	Rp135.500
27	09401-11414-000	CLIP	10	Rp25.000
28	DISCONTINUE SUB: 01500-06257-000	BOLT	2	-
29	01550-06167-000	BOLT	6	Rp16.500
30	01550-08357-000	BOLT	2	Rp24.000
