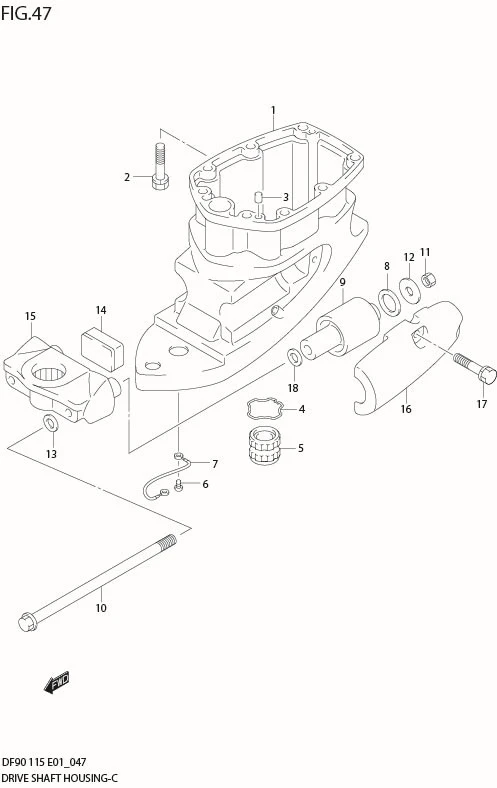

FIG 47 DRIVE SHAFT HOUSING

FIG 47  DRIVE SHAFT HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1-2 52111-90J12-0EP HOUSING, DRIVE SHAFT (BLACK) 1 Rp8.860.500 TYPE:X
1-1 52111-90J02-0EP HOUSING, DRIVE SHAFT (BLACK) 1 Rp7.369.000 TYPE:L
2-1 09117-10034-000 BOLT (10X45) 8 -
2-2 09117-10058-000 BOLT (10X45) 8 Rp31.000 MODEL:05%
3 09202-08006-000 PIN, KNOCK 2 Rp27.000
4 09387-45001-000 CIRCLIP 1 Rp27.000 TYPE:X
5 DISCONTINUE
SUB: 57130-94501-000
BUSH, DRIVE SHAFT 1 - TYPE:X
6 09125-06063-000 SCREW (6X10) 2 Rp15.000
7-1 36895-87D01-000 LEAD (BRKT TO HSG) 1 Rp116.000
7-2 36895-87D10-000 LEAD (SWIVEL TO HSG) 1 Rp121.500 DF90:680686%
8 DISCONTINUE
SUB: 54121-87D00-000
DAMPER, REVERSE STOPPER LOWER 2 -
9 54160-90J00-000 MOUNT, LOWER 2 Rp861.500
10 54166-90J11-000 BOLT (12X231) 2 Rp447.000 ?09100-12079
11 09159-12014-000 NUT 2 Rp37.000
12 09160-12112-000 WASHER (12X40X3.0) 2 Rp41.000 ?09160-12065
13 54114-90J01-000 WASHER (12.5X22X3.0) 2 Rp31.500 ?09160-12066
14 54151-90J00-000 MOUNT, LOWER THRUST 1 Rp71.500
15 54211-90J01-0EP BRACKET, LOWER MOUNT (BLACK) 1 Rp1.396.000
16 54221-90J02-0EP COVER, LOWER MOUNT (BLACK) 2 Rp927.000
17-1 09117-10034-000 BOLT (10X45) 6 -
17-2 09117-10058-000 BOLT (10X45) 6 Rp31.000 MODEL:05%
18 09160-12113-000 WASHER (12.5X30X2.5) 2 Rp23.500 ?09160-12098

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
