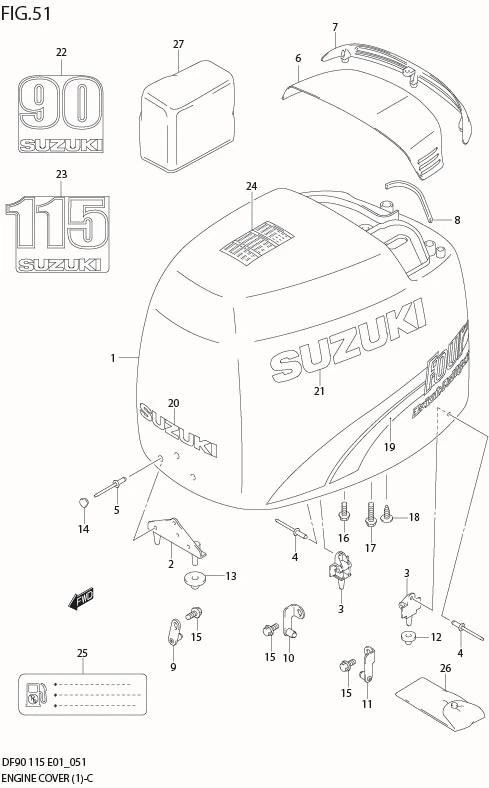

FIG 51 ENGINE COVER (MODEL:01

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61400-90800-0EP	COVER SET, ENGINE (BLACK)	1	-
2	61621-87D02-000	?BRACKET, FASTENER FR	1	Rp271.500
3	61644-90J00-000	?BRACKET, FASTENER RR	2	Rp292.000
4	09229-04028-XC0 SUB: 09229-04028-000	?RIVET	4	Rp26.500
5	09229-04046-000	?RIVET	3	Rp26.000
6	61431-90J00-0EP	?HANDLE, TILT UP (BLACK)	1	-
7	61432-90J00-000	?LOUVER, TILT UP HANDLE	1	Rp419.500
8	61439-90J00-000	?SEAL, TILT UP HANDLE	1	Rp32.500
9	61610-90J21-000	?FASTENER	1	-
10	61680-90J01-000 SUB: 61680-90J00-000	?FASTENER, REAR STBD	1	Rp138.000
11	61690-90J01-000 SUB: 61690-90J00-000	?FASTENER, REAR PORT	1	Rp138.000
12	61619-98J00-000 SUB: 09329-10022-000	?CUSHION	2	Rp50.000
13	09329-10023-000	?CUSHION	2	Rp21.000
14	09250-12013-000	?CAP	3	Rp10.500
15	01550-06127-000	?BOLT	3	Rp17.000
16	01550-06167-000	?BOLT	4	Rp16.500
17	01550-06257-000 SUB: 01550B06257N000	?BOLT	1	Rp3.500
18	03541-0616A-000 SUB: 03542-06163-000	?SCREW	3	Rp13.500
19-1	DISCONTINUE SUB: 61443-90J00-000	?STRIPE, ENGINE COVER STBD	1	-
19-2	DISCONTINUE SUB: 61453-90J00-000	?STRIPE, ENGINE COVER PORT	1	-
20-1	68111-47C00-Y2D	?MARK, EMBLEM (SILVER)	1	-
20-2	68111-47C10-Y2D	?MARK, EMBLEM (SILVER)	1	-	MODEL:02
21	68681-19C00-Y2D	?MARK, EMBLEM SIDE (SILVER)	2	Rp243.500
22	61435-90J00-000	MARK, EMBLEM REAR	1	Rp107.000	DF90
23	61435-90J10-000	MARK, EMBLEM REAR	1	Rp123.000	DF115
24	61458-99E31-000	LABEL, ENGINE COVER	1	Rp117.500	?61458-99E30
25	DISCONTINUE SUB: 69716-99E13-000	LABEL, FUEL LIMITATION	1	-	?69716-99E11
26	09800-81840-000	TOOL SET	1	Rp239.000
27	DISCONTINUE SUB: 68110-87D01-000	COVER, WEATHER	1	-	OPT
