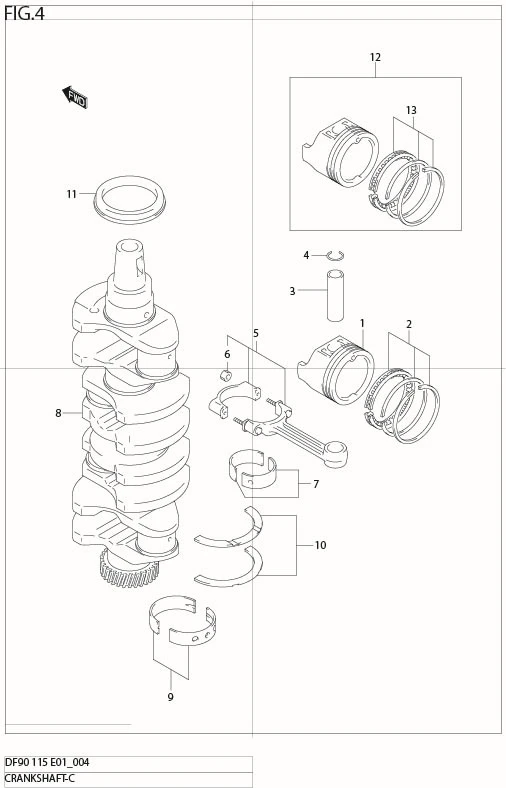

FIG 4 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12111-90J01-000	PISTON	4	Rp1.047.000
2	12140-86FA0-000	RING SET, PISTON	4	Rp676.500
3	12151-86FA0-000	PIN, PISTON	4	Rp70.500
4	09381-21002-000	CIRCLIP	8	Rp9.500
5	12160-92J00-000	CONNROD ASSY	4	Rp1.384.500	?12160-90J00
6-1	09159M08033-000 SUB: 09159-08033-000	?NUT	8	Rp14.000	FOR 12160-90J00
6-2	09159-08121-000	?NUT	8	Rp31.000	FOR 12160-92J00
7-3	12100-60822-025	BEARING SET, CONNROD (US:0.25)	4	Rp163.000	OPT
7-4	DISCONTINUE SUB: 12100-92840-025	BEARING SET, CONNROD (US:0.25)	4	-	OPT
7-2	12100-92841-0A0	BEARING SET, CONNROD	4	Rp205.000	FOR 12160-92J00
7-1	12100-60822-0A0	BEARING SET, CONNROD	4	Rp166.000	FOR 12160-90J00
8-1	12200-92861-000 SUB: 12200-92860-000	CRANKSHAFT SET	1	Rp7.688.000	?12220-90J00
8-2	12220-99L00-000 SUB: 12220-92J00-000	CRANKSHAFT	1	Rp17.174.000	DF90:252072%
9-2	12340-85FB3-0B0	BEARING SET, CRANKSHAFT	5	Rp248.500	BLACK
9-10	DISCONTINUE SUB: 12300-85854-0EA	BEARING SET, CRANKSHAFT	5	-	OPT
9-9	DISCONTINUE SUB: 12300-85854-0DA	BEARING SET, CRANKSHAFT	5	-	OPT
9-8	12300-85854-0CA	BEARING SET, CRANKSHAFT	5	Rp265.000	OPT
9-7	DISCONTINUE SUB: 12300-85854-0BA	BEARING SET, CRANKSHAFT	5	-	OPT
9-6	12300-85854-0AA	BEARING SET, CRANKSHAFT	5	Rp263.000	OPT
9-5	12340-85FB3-0E0	BEARING SET, CRANKSHAFT	5	Rp247.000	BLUE
9-4	12340-85FB3-0D0	BEARING SET, CRANKSHAFT	5	Rp241.500	YELLOW
9-3	12340-85FB3-0C0	BEARING SET, CRANKSHAFT	5	Rp238.500	NON
9-1	12340-85FB3-0A0	BEARING SET, CRANKSHAFT	5	Rp246.000	GREEN
10-1	12300-85830-000	BEARING SET, CRANK THRUST	1	Rp158.000
10-2	12300-85830-012	BEARING SET, CRANK THRUST	1	Rp174.000	OPT
11	09283-52004-000	SEAL, OIL	1	Rp140.500
12	12100-90J01-050	PISTON SET (OS:0.50)	4	Rp1.516.000	OPT
13	12140-86FA0-050	?RING SET, PISTON (OS:0.50)	4	Rp771.000	OPT
