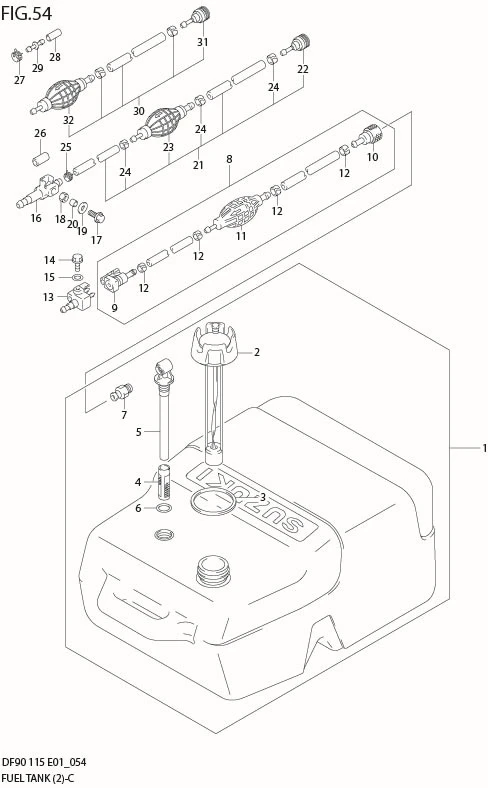

FIG 54 FUEL TANK (PLASTIC)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65000-94L10-000 SUB: 65000-95D01-000	TANK ASSY, FUEL (25L)	1	Rp1.476.000
2	DISCONTINUE SUB: 65520-95D00-000	?CAP ASSY, FUEL TANK	1	-
3	65561-95D00-000	?GASKET, TANK CAP	1	Rp18.000
4	65831-95D00-000	?FILTER, OUTLET	1	Rp90.000
5	DISCONTINUE SUB: 65890-95D00-000	?OUTLET ASSY	1	-
6	DISCONTINUE SUB: 65892-95D00-000	?O RING, FUEL OUTLET	1	-
7	65740-95D01-000	?PLUG, FUEL CONNECTOR	1	Rp375.500
8	65700-87J16-000 SUB: 65700-87J13-000	HOSE, FUEL	1	Rp1.189.000	MODEL:01,02
9	65750-87J11-000	?SOCKET, FUEL HOSE	1	Rp250.500	MODEL:01,02
10	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE	1	Rp374.000	MODEL:01,02
11	DISCONTINUE SUB: 65770-95505-000	?PUMP, SQUEEZE	1	-	MODEL:01,02
12	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-	MODEL:01,02
13	DISCONTINUE SUB: 65720-986B0-000	PLUG, FUEL CONNECTOR	1	-	MODEL:01,02
14	09103-06237-000	BOLT (6X12.5)	1	Rp21.500	MODEL:01,02
15	09160-06085-000	WASHER	1	Rp9.500	MODEL:01,02
16	DISCONTINUE SUB: 65721-90J00-000	PLUG, FUEL CONNECTOR	1	-	MODEL:03%06
17	09103-06092-000	BOLT (6X15)	1	Rp16.500	MODEL:03%06
18	09140-06020-000	NUT	1	Rp13.500	MODEL:03%06
19	09160-06085-000	WASHER (6.5X15X1.0)	1	Rp9.500	MODEL:03%06
20	09180-06334-000	SPACER	1	Rp13.500	MODEL:03%06
21	65700-90J02-000	HOSE, FUEL	1	Rp1.139.000	MODEL:03%06
22	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE	1	Rp374.000	MODEL:03%06
23	DISCONTINUE SUB: 65770-95505-000	?PUMP, SQUEEZE	1	-	MODEL:03%06
24	DISCONTINUE SUB: 65781-98500-000	?CLIP	3	-	MODEL:03%06
25	09401-11423-000 SUB: 17818-90J00-000	CLIP	1	Rp19.500	MODEL:03%06
26	DISCONTINUE SUB: 09251-07003-000	CAP	1	-	MODEL:03%06
27	09401-11423-000	CLIP, FUEL HOSE	1	Rp19.500	MODEL:07%
28	DISCONTINUE SUB: 09251-07003-000	CAP, FUEL JOINT	1	-	MODEL:07%
29	09367-08001-000 SUB: 09367B08001N000	JOINT, FUEL HOSE	1	Rp6.500	MODEL:07%
30	65700-90J18-000 SUB: 65700-90J12-000	HOSE, FUEL	1	Rp733.000	MODEL:07%
31	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE	1	Rp374.000	MODEL:07%
32	DISCONTINUE SUB: 65770-95505-000	?PUMP, SQUEEZE	1	-	MODEL:07%
