DF90 115 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF90T FIG 10 FUEL VAPOR SEPARATOR (DF115WT/WZ FIG 11 FUEL INJECTOR FIG 12 FUEL INJECTOR (DF90T:151862%FIG 13 FUEL INJECTOR (DF115WT/WZ FIG 14 FUEL PUMP (DF90T FIG 15 FUEL PUMP (DF90T:680686%FIG 16 FUEL PUMP (DF115WT)FIG 17 FUEL PUMP (DF115WT:681518%FIG 18 WATER PUMP (DF90T FIG 19 WATER PUMP (DF115WT)FIG 20 WATER PUMP (*)FIG 21 THERMOSTAT FIG 22 THROTTLE BODY FIG 23 OIL PUMP FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (DF90T:372278%FIG 27 CLUTCH SHAFT (*)FIG 28 SHIFT ROD (DF90T FIG 29 SHIFT ROD (DF90T:680686%FIG 30 SHIFT ROD (DF115Z)FIG 31 TRANSMISSION (DF90T FIG 32 TRANSMISSION (DF115Z)FIG 33 STARTING MOTOR FIG 34 MAGNETO FIG 35 RECTIFIER FIG 36 IGNITION COIL FIG 37 SENSOR FIG 38 HARNESS FIG 39 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:01%03)FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 41 CLAMP BRACKET FIG 42 SWIVEL BRACKET FIG 43 TRIM CYLINDER FIG 44 PTT MOTOR FIG 45 ENGINE HOLDER FIG 46 ENGINE HOLDER (DF90:680686%FIG 47 DRIVE SHAFT HOUSING FIG 48 GEAR CASE (DF90T FIG 49 GEAR CASE (DF115Z)FIG 50 SIDE COVER FIG 51 ENGINE COVER (MODEL:01 FIG 52 ENGINE COVER (MODEL:03%09)FIG 52A ENGINE COVER (MODEL:10%)FIG 53 FUEL TANK (METAL)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:01%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER (MODEL:01%04)FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:TRIM SENDER FIG 63 OPT:HARNESS FIG 64 OPT:HARNESS (MODEL:08%)FIG 65 OPT:SWITCH (MODEL:01%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:01%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TILLER HANDLE (MODEL:01%03)FIG 71 OPT:TILLER HANDLE (MODEL:04%)FIG 72 OPT:GASKET SET

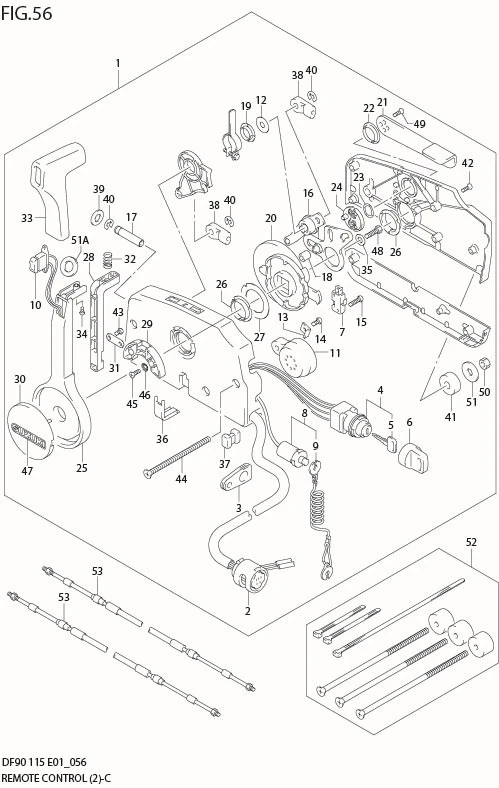

FIG 56 REMOTE CONTROL (MODEL:04)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-99E57-000 SUB: 67200-99E50-000	REMOTE CONTROL BOX	1	Rp4.328.000
2	36620-92E20-000	?WIRE ASSY, REMOCON	1	Rp1.804.500
3	36628-92E00-000	?GROMMET	1	Rp42.000
4	DISCONTINUE SUB: 37110-99E00-000	?SWITCH ASSY, IGNITION	1	-
5-1	DISCONTINUE SUB: 37141-99E00-000	??KEY (931)	1	-
5-2	DISCONTINUE SUB: 37141-99E10-000	??KEY (932)	1	-
5-3	DISCONTINUE SUB: 37141-99E20-000	??KEY (933)	1	-
5-4	DISCONTINUE SUB: 37141-99E30-000	??KEY (934)	1	-
5-5	DISCONTINUE SUB: 37141-99E40-000	??KEY (935)	1	-
5-6	DISCONTINUE SUB: 37141-99E50-000	??KEY (936)	1	-
5-7	DISCONTINUE SUB: 37141-99E60-000	??KEY (937)	1	-
5-8	DISCONTINUE SUB: 37141-99E70-000	??KEY (938)	1	-
5-9	DISCONTINUE SUB: 37141-99E80-000	??KEY (939)	1	-
5-10	DISCONTINUE SUB: 37141-99E90-000	??KEY (940)	1	-
5-11	DISCONTINUE SUB: 37141-99EA0-000	??KEY (941)	1	-
5-12	DISCONTINUE SUB: 37141-99EB0-000	??KEY (942)	1	-
6	37143-99E00-000	??CAP, KEY	1	Rp26.000
7	DISCONTINUE SUB: 37721-94600-000	?SWITCH, NEUTRAL	1	-
8	37820-92E05-000 SUB: 37820-92E00-000	?SWITCH ASSY, EMERGENCY	1	Rp369.500
9	37823-92E02-000 SUB: 37823-92E00-000	??PLATE	1	Rp221.500
10	37850-90J00-000	?SWITCH ASSY, PTT	1	-
11	38500-92E10-000	?BUZZER, WARNING	1	Rp761.000
12	67212-95600-000	?WASHER	1	Rp25.500
13	67213-92E00-000	?BRACKET, BUZZER BRKT	1	Rp35.000
14	67214-92E10-000	?SCREW, BUZZER BRKT	1	Rp8.000
15	67216-94600-000	?SCREW, NEUTRAL SW	2	-
16	67220-95630-000	?PLATE ASSY	1	Rp654.500
17	67223-99E10-000	?KNOB, BRAKE ADJUST	1	Rp59.000
18	67229-95600-000	?ROLLER	1	Rp54.500
19	67232-95600-000	?BUSH	1	Rp44.000
20	DISCONTINUE SUB: 67238-87D00-000	?GEAR, DRIVE	1	-
21	67241-99E10-000	?LEVER, FREE THROTTLE	1	Rp177.000
22	67243-95600-000	?BUSH	1	Rp30.500
23	67244-95600-000	?WAVE WASHER	1	Rp27.500
24	67245-95600-000	?DRUM, FREE THROTTLE	1	Rp194.000
25	67251-99E10-000	?LEVER, HANDLE	1	Rp617.000
26	67252-95600-000	?BUSH	1	Rp37.500
27	67253-95600-000	?WASHER	1	Rp37.500
28	67255-99E00-000	?ARM, LOCK	1	Rp143.000
29	67256-95600-000	?HOLDER, NEUT LOCK	1	Rp80.500
30	67257-99E00-000	?CAP, LEVER	1	Rp77.000
31	67258-99E00-000	?BRACKET	1	Rp31.000
32	67259-87D00-000	?SPRING, NEUTRAL ARM	1	Rp45.500
33	67261-99E00-000	?GRIP	1	Rp354.000
34	67262-95600-000	?SCREW, BUZZER BRKT	1	-
35	67264-95600-000	?WASHER	1	Rp22.000
36	67267-95610-000	?COVER, WIRE	1	Rp44.500
37	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
38	67275-95600-000	?END, CABLE	2	Rp70.500
39	67288-99E00-000	?WASHER	1	-
40	67292-94300-000	?E RING	1	Rp11.000
41	67294-95600-000	?SPACER	3	Rp35.000
42	67296-90J00-000	?SCREW, COVER	5	Rp17.000
43	67296-94300-000	?SCREW	2	Rp10.500
44	67296-95600-000	?SCREW	3	Rp47.000
45	67296-95610-000	?SCREW	2	Rp23.500
46	67297-95600-000	?WASHER	2	Rp23.500
47	68165-16B01-13L SUB: 68165-16B00-13L	?EMBLEM, SUZUKI	1	Rp47.500
48	09100-08232-000	?BOLT	1	Rp29.000
49	DISCONTINUE SUB: 09126-05003-000	?SCREW	2	-
50	09140-06020-000	?NUT	3	Rp13.500
51	09160-06104-000	?WASHER	3	Rp18.000
51A	37859-90J00-000	?SPACER	1	Rp26.500
52	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, TWIN REMOCON KIT	1	Rp351.000	OPT
53-9	67320-93J80-000	CABLE, REMOCON 24F (7.3M)	2	Rp922.000	OPT
53-8	DISCONTINUE SUB: 67320-93J70-000	CABLE, REMOCON 22F (6.7M)	2	-	OPT
53-7	67320-93J60-000	CABLE, REMOCON 20F (6.1M)	2	Rp820.000	OPT
53-6	67320-93J50-000	CABLE, REMOCON 18F (5.5M)	2	Rp767.500	OPT
53-5	67320-93J40-000	CABLE, REMOCON 16F (4.9M)	2	Rp715.000	OPT
53-4	67320-93J30-000	CABLE, REMOCON 14F (4.3M)	2	Rp662.500	OPT
53-3	67320-93J20-000	CABLE, REMOCON 12F (3.7M)	2	Rp613.500	OPT
53-2	67320-93J10-000	CABLE, REMOCON 10F (3.1M)	2	Rp564.500	OPT
53-1	DISCONTINUE SUB: 67320-93J00-000	CABLE, REMOCON 8F (2.4M)	2	-	OPT
