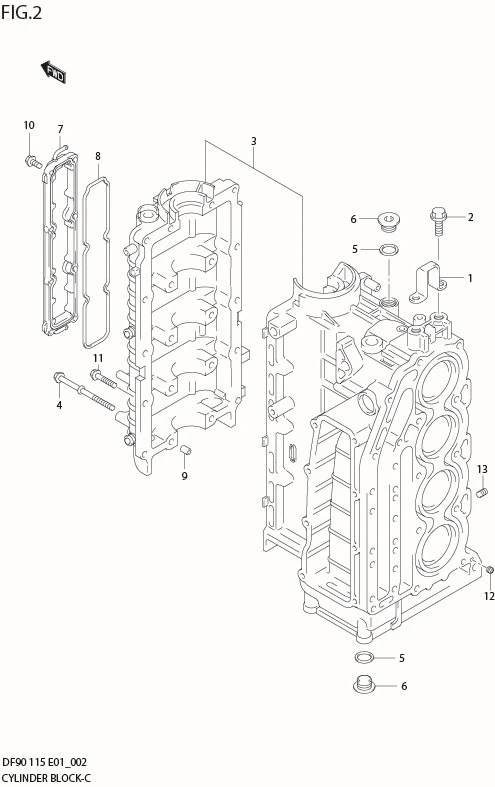

FIG 2 CYLINDER BLOCK

FIG 2 CYLINDER BLOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	11291-90J00-019	HOOK, ENGINE (BLACK)	1	-
1-2	11291-90J10-000	HOOK, ENGINE	1	Rp92.000	MODEL:03%
2	01550-12307-000	BOLT	2	Rp16.000
3-1	11300-90J00-000	BLOCK, CYLINDER	1	Rp17.520.500	?11300-90J00-019
3-2	11300-90J11-000	BLOCK, CYLINDER	1	Rp32.638.500	MODEL:04%
4	11117-90J10-000 SUB: 11117-90J01-000	?BOLT, CRANKCASE	10	Rp52.500
5	11216-77E00-000	?GASKET, OIL GALLERY PLUG	3	Rp21.000
6	09248-18011-000	?PLUG, OIL GALLERY	3	Rp38.000
7	11330-90J00-000	?COVER, WTR JKT	1	Rp1.168.500
8	11332-90J00-000	?O RING, WTR JKT COVER	1	Rp174.000
9	09206-13019-000	?PIN	5	Rp15.000
10	01550-06207-000 SUB: 01550B06207N000	?BOLT	8	Rp3.000
11	01550-08407-000 SUB: 09116-08124-000	?BOLT (8X43)	10	Rp24.000
12	11112-90J00-000	?PLUG, OIL VENTURI	1	Rp34.000
13	09246M05003-000 SUB: 09246-05006-000	PLUG	1	Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
