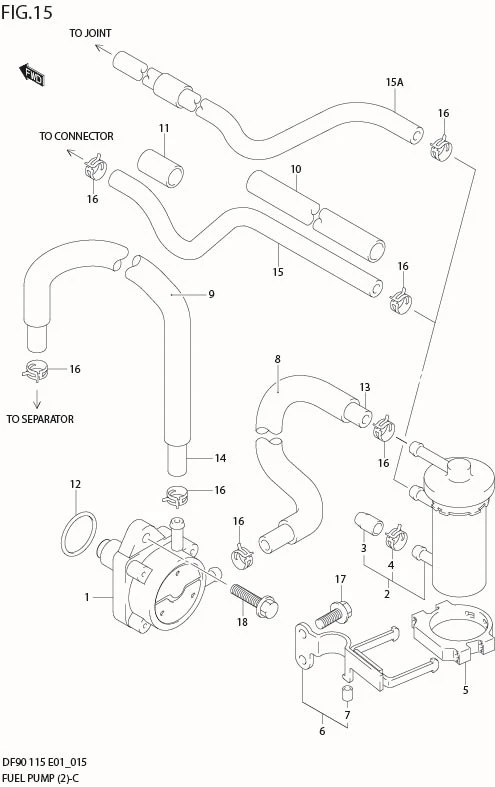

FIG 15 FUEL PUMP (DF90T:680686%

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15100-90J11-000 SUB: 15100-90J1V-000	PUMP, FUEL	1	Rp1.196.500
2	15410-87J30-000	FILTER, FUEL	1	Rp161.000
3	15419-87J00-000	?CAP, FUEL FILTER	1	Rp52.000
4	09401-11423-000	?CLIP, FILTER CAP	1	Rp19.500
5	15422-96J01-000 SUB: 15422-96J00-000	CLAMP, FILTER	1	Rp60.500
6	15420-90J30-000	BRACKET, FUEL FILTER	1	Rp70.500
7	09320-05016-000	?CUSHION, BRACKET	1	Rp13.500
8	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!230
9	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!450
10	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!510
11-1	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!160
11-2	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR, FUEL HOSE (610)	1	-	L:610!180
12	09280-26005-000 SUB: 09280B26005N000	O RING (D:2.4,ID:26.2)	1	Rp3.000
13-1	15192-90J11-000 SUB: 15192-90J00-000	HOSE, FUEL (FILTER TO PUMP)	1	Rp163.000	!15192-90800
13-2	15192-90J11-000	HOSE, FUEL (FILTER TO PUMP)	1	Rp163.000	MODEL:10%
14-1	09355-70129-600	HOSE, FUEL (PUMP TO SEPARATOR)	1	Rp342.000	L:600!540
14-2	09343-70503-600	HOSE, FUEL (PUMP TO SEPARATOR)	1	Rp304.000	DF100:110001%
15	15191-90J10-000 SUB: 15191-90J00-000	HOSE, FUEL (CONN TO FILTER)	1	Rp319.500
15A-1	15190-90J20-000 SUB: 15190-90J00-000	HOSE, FUEL (JOINT TO FILTER)	1	Rp495.500	MODEL:07%09
15A-2	15190-90J20-000	HOSE, FUEL (JOINT TO FILTER)	1	Rp495.500	MODEL:10
15A-3	15190-90J30-000	HOSE, FUEL (JOINT TO FILTER)	1	Rp949.000	DF100:110001%
16-1	09401-11423-000	CLIP	6	Rp19.500
16-2	09401-11423-000	CLIP	5	Rp19.500	MODEL:07%
17	01550-06167-000	BOLT	2	Rp16.500
18	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
