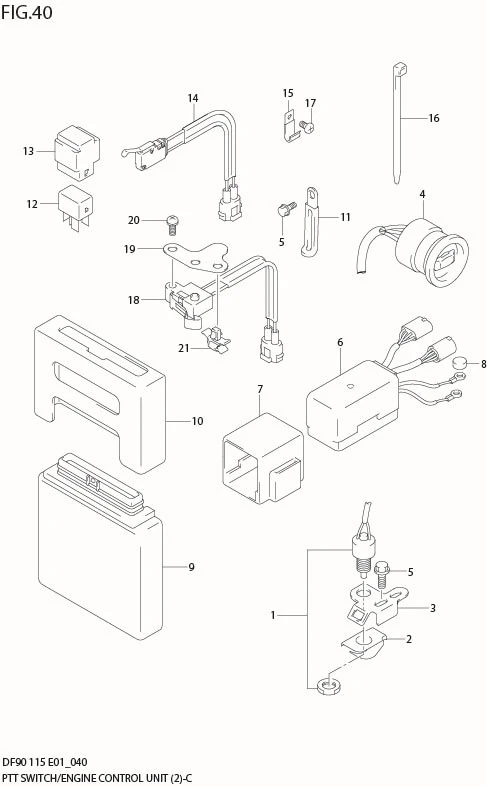

FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37721-99E12-000 SUB: 37721-99E10-000	SWITCH, NEUTRAL	1	Rp472.000	DF90:%680685
2	DISCONTINUE SUB: 37725-95600-000	ACTUATOR, NEUTRAL SW	1	-	DF90:%680685
3	37726-90J00-000	BRACKET, NEUTRAL SW	1	Rp25.500	DF90:%680685
4	37850-99E05-000 SUB: 37850-99E04-000	SWITCH, PTT	1	Rp736.000
5	01550-06167-000	BOLT	2	Rp16.500	DF90:%680685
6-1	38410-93J12-000 SUB: 38410-93J00-000	RELAY, PTT	1	Rp1.174.500
6-2	38410-93J12-000 SUB: 38410-93J11-000	RELAY, PTT	1	Rp1.174.500	MODEL:06%
7	38415-93J00-000	HOLDER, PTT RELAY	1	Rp52.000
8	09251-09002-000	CAP	2	Rp22.000
9-9	33920-90JB4-000 SUB: 33920-90J51-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115WT
9-11	33920-90JB4-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115WT/WZ MODEL:08%
9-10	33920-90JB4-000 SUB: 33920-90JB2-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115WT MODEL:05%07
9-8	33920-90JA4-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115 MODEL:08%
9-7	33920-90JA4-000 SUB: 33920-90JA2-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115 MODEL:05%07
9-5	33920-90JD1-000	UNIT, ENGINE CONTROL	1	Rp15.003.000	DF100WT
9-4	33920-90JC1-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF100
9-3	33920-90J83-000	UNIT, ENGINE CONTROL	1	-	DF90 MODEL:08
9-2	33920-90J82-000	UNIT, ENGINE CONTROL	1	-	DF90 MODEL:05%07
9-1	33920-90J21-000	UNIT, ENGINE CONTROL	1	-	DF90
9-6	33920-90JA4-000 SUB: 33920-90J31-000	UNIT, ENGINE CONTROL	1	Rp21.799.500	DF115
10	33925-87J00-000	CUSHION, ENGINE CONTROL UNIT	1	Rp267.500
11	DISCONTINUE SUB: 29404-93J10-000	CLAMP	2	-	?09404-06432
12	38860-76F01-000 SUB: 38860B76F01N000	RELAY, ENGINE CONTROL UNIT	1	Rp47.000
13	38915-90J00-000	HOLDER, RELAY	1	Rp33.000
14-1	37722-93J00-000	SWITCH ASSY, TILT LIMIT	1	-
14-2	37722-93J14-000 SUB: 37722-93J11-000	SWITCH ASSY, TILT LIMIT	1	Rp371.500	DF90:680686%
15	09403-09316-000	CLAMP, TILT LIMIT LEAD	1	Rp9.000	DF90:%680685
16-1	09407-14407-000	CLAMP, TILT LIMIT LEAD	1	Rp18.500
16-2	09407-14407-000	CLAMP, TILT LIMIT LEAD	2	Rp18.500	DF90:680686%
17	09103-06265-000 SUB: 09103-06152-000	BOLT (6X12)	1	Rp21.500	DF90:%680685
18	37721-93J00-000	SWITCH ASSY, NEUTRAL	1	Rp333.000	DF90:680686%
19	37726-90J10-000	BRACKET, NEUTRAL SWITCH	1	Rp23.500	DF90:680686%
20	09137-04004-000	SCREW, NEUTRAL SWITCH	2	Rp19.500	DF90:680686%
21	09403-06316-000	CLAMP, NEUTRAL SW LEAD WIRE	1	Rp19.500	DF90:680686%
