DF90 115 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER FIG 4 CRANKSHAFT FIG 5 TIMING CHAIN FIG 6 CAMSHAFT FIG 7 INTAKE MANIFOLD FIG 8 SILENCER FIG 9 FUEL VAPOR SEPARATOR (DF90T FIG 10 FUEL VAPOR SEPARATOR (DF115WT/WZ FIG 11 FUEL INJECTOR FIG 12 FUEL INJECTOR (DF90T:151862%FIG 13 FUEL INJECTOR (DF115WT/WZ FIG 14 FUEL PUMP (DF90T FIG 15 FUEL PUMP (DF90T:680686%FIG 16 FUEL PUMP (DF115WT)FIG 17 FUEL PUMP (DF115WT:681518%FIG 18 WATER PUMP (DF90T FIG 19 WATER PUMP (DF115WT)FIG 20 WATER PUMP (*)FIG 21 THERMOSTAT FIG 22 THROTTLE BODY FIG 23 OIL PUMP FIG 24 OIL PAN FIG 25 CLUTCH SHAFT FIG 26 CLUTCH SHAFT (DF90T:372278%FIG 27 CLUTCH SHAFT (*)FIG 28 SHIFT ROD (DF90T FIG 29 SHIFT ROD (DF90T:680686%FIG 30 SHIFT ROD (DF115Z)FIG 31 TRANSMISSION (DF90T FIG 32 TRANSMISSION (DF115Z)FIG 33 STARTING MOTOR FIG 34 MAGNETO FIG 35 RECTIFIER FIG 36 IGNITION COIL FIG 37 SENSOR FIG 38 HARNESS FIG 39 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:01%03)FIG 40 PTT SWITCH & ENGINE CONTROL UNIT (MODEL:04%)FIG 41 CLAMP BRACKET FIG 42 SWIVEL BRACKET FIG 43 TRIM CYLINDER FIG 44 PTT MOTOR FIG 45 ENGINE HOLDER FIG 46 ENGINE HOLDER (DF90:680686%FIG 47 DRIVE SHAFT HOUSING FIG 48 GEAR CASE (DF90T FIG 49 GEAR CASE (DF115Z)FIG 50 SIDE COVER FIG 51 ENGINE COVER (MODEL:01 FIG 52 ENGINE COVER (MODEL:03%09)FIG 52A ENGINE COVER (MODEL:10%)FIG 53 FUEL TANK (METAL)FIG 54 FUEL TANK (PLASTIC)FIG 55 REMOTE CONTROL (MODEL:01%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%)FIG 58 DRAG LINK FIG 59 OPT:METER (MODEL:01%04)FIG 60 OPT:METER (MODEL:05%)FIG 61 OPT:METER (MODEL:08%)FIG 62 OPT:TRIM SENDER FIG 63 OPT:HARNESS FIG 64 OPT:HARNESS (MODEL:08%)FIG 65 OPT:SWITCH (MODEL:01%04)FIG 66 OPT:SWITCH (MODEL:05%)FIG 67 OPT : TRIM SWITCH (MODEL:01%04)FIG 68 OPT:TOP MOUNT DUAL (1)FIG 69 OPT:TOP MOUNT DUAL (2)FIG 70 OPT:TILLER HANDLE (MODEL:01%03)FIG 71 OPT:TILLER HANDLE (MODEL:04%)FIG 72 OPT:GASKET SET

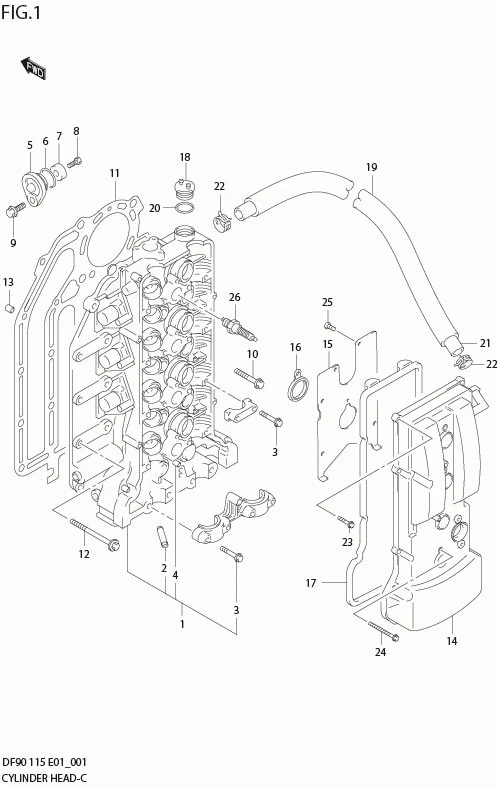

FIG 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11100-90J01-000	HEAD, CYLINDER	1	-	DF90:251001%
1-3	11100-90J11-000 SUB: 11100-90J02-000	HEAD, CYLINDER	1	Rp24.266.500	INC.NO.5%9
1-4	11100-90J05-000	HEAD, CYLINDER	1	-	DF90:421408%
1-5	11100-90J11-000 SUB: 11100-90J06-000	HEAD, CYLINDER	1	Rp24.266.500	DF100:110023%
1-1	11100-90J00-019	HEAD, CYLINDER (BLACK)	1	-	!11000-90800(DF90)
2	11115-85FA1-001	?GUIDE, VALVE	16	Rp173.000
3	02112-0612A-000 SUB: 02112B0612AN000	SCREW	1	Rp3.500
3-2	09103-06266-000	?BOLT, CAMSHAFT HOUSING	21	Rp14.000	DF100:110023%
3-1	11128-90J00-000	?BOLT, CAM SHAFT HOUSING	21	Rp24.000
4	09206-08001-000 SUB: 09206B08001N000	?PIN	18	Rp5.500
5	11261-93J00-000	COVER, PROTECTION ANODE	2	Rp132.500	DF90:421060%
6	09280-22019-000	O RING	2	Rp15.500	DF90:421060%
7	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	2	Rp79.500	DF90:421060%
8-1	DISCONTINUE SUB: 09128-06021-000	BOLT, PROTECTION ANODE	2	-	DF90:421060%
8-2	09103-06281-000	BOLT, PROTECTION ANODE	2	Rp20.500	MODEL:06%
9	01550-08207-000	BOLT	2	Rp19.000	DF90:421060%
10	11117-89J00-000	BOLT, CYL HEAD	10	Rp47.000
11	11141-90J01-000	GASKET, CYL HEAD	1	Rp1.156.000
12	09116-08125-000	BOLT (8X52)	8	Rp26.000
13	04211M13189-000 SUB: 04211-13189-000	PIN	2	Rp9.000
14-1	11170-90J00-019	COVER, CYL HEAD (BLACK)	1	-
14-2	11170-90J01-000 SUB: 11170-90J00-000	COVER, CYL HEAD	1	Rp2.164.000	MODEL:03%
15	11173-90J00-000	PLATE, BREATHER	1	Rp71.500
16	11179-90J00-000	GASKET, SPARK PLUG HOLE	4	Rp45.500
17	11189-90J00-000	GASKET, CYL HEAD COVER	1	Rp247.500
18	11382-99E00-000	CAP, OIL FILLER	1	Rp79.000
19	DISCONTINUE SUB: 18498-90J20-000	PROTECTOR, BREATHER HOSE	1	-
20	09280-26006-000	O RING	1	Rp16.500
21	09355-13207-00B	HOSE, BREATHER	1	Rp385.500	L:2000!660
22	09401-20409-000	CLIP	2	Rp27.000
23	01547-06257-000	BOLT	11	Rp14.000
24	DISCONTINUE SUB: 01547-06557-000	BOLT	4	-
26	09482-00427-000	SPARK PLUG (BKR6E)	4	Rp55.000
