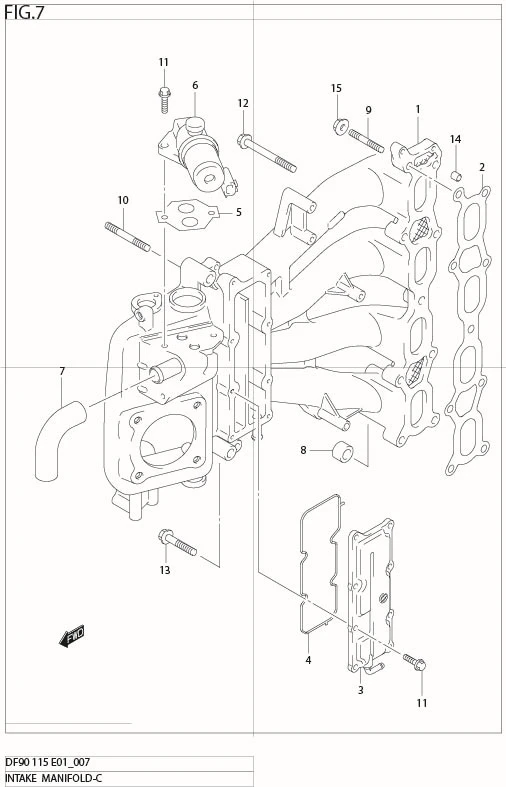

FIG 7 INTAKE MANIFOLD

FIG 7 INTAKE MANIFOLD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 13110-90J01-000	MANIFOLD, INTAKE	1	-	DF90:251957%
1-3	DISCONTINUE SUB: 13110-90J02-000	MANIFOLD, INTAKE	1	-	MODEL:05%
1-1	DISCONTINUE SUB: 13110-90J00-000	MANIFOLD, INTAKE	1	-	!13110-90J01
2	13119-90J00-000	GASKET, INTAKE MANIFOLD	1	Rp54.500
3	DISCONTINUE SUB: 13140-90J00-000	COVER, WTR JKT	1	-
4	13145-90J00-000	O RING, WTR JKT COVER	1	Rp170.500
5	18134-77E00-000	GASKET, IAC VALVE	1	Rp53.000
6	18137-77E00-000	VALVE, IAC	1	Rp2.660.500
7	DISCONTINUE SUB: 18141-90J00-000	HOSE, IAC	1	-
8	09329-12004-000	CUSHION, INTAKE MANIFOLD	1	Rp12.000
9	01421-08357-000	BOLT, STUD	1	Rp27.000
10	DISCONTINUE SUB: 01421-08507-000	BOLT, STUD	1	-
11	01550-06207-000 SUB: 01550B06207N000	BOLT	10	Rp3.000
12	01550-08407-000	BOLT	8	Rp24.000
13	DISCONTINUE SUB: 01550-08757-000	BOLT	1	-
14	04211-11129-000 SUB: 04211B11129N000	PIN	2	Rp2.000
15	08316-10087-000	NUT	2	Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
